99.95% Tungsten Products Needle Diameter 0.61mm Tungsten Pin Tungsten Electrode For Ion Fan Tungsten Thin Rod Polished
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | 99.95% Tungsten Needle Diameter 0.5mm | Material | Pure Tungsten |
|---|---|---|---|
| Purity | 99.95% | Density | 19.3 G/cm3 |
| Surface | Polished | Diameter | 0.61mm |
| Length | 25mm | MOQ | 1kg |
| High Light | Polished Tungsten Products,25mm Tungsten Products,0.61mm Tungsten Needle |
||
Product Description

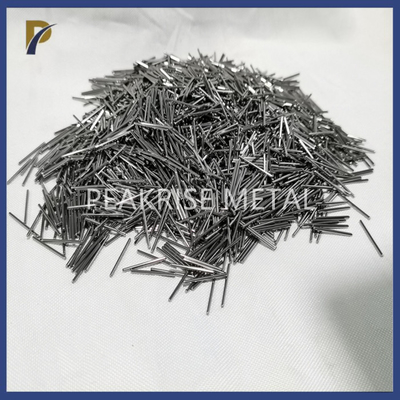

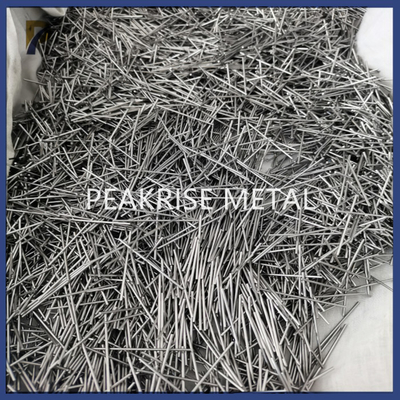

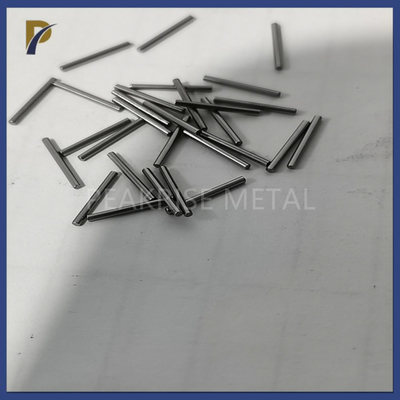

99.95% Tungsten Needle Diameter 0.61mm
1. Description of 99.95% Tungsten Needle Diameter 0.61mm:
Tungsten needle is a tungsten product made of pure tungsten or tungsten alloy with a slender structure.It can be used as an instrument probe and as an electrode material for argon arc welding. High temperature resistance and superior electrical conductivity are its benefits.
2. Specification of 99.95% Tungsten Needle Diameter 0.61mm:
Tungsten needle
1) Dia. 0.95 x 22mm
2) Dia. 0.80 x 16mm
3) Dia. 0.75 x 20mm
4) Dia. 0.50 x 10mm
5) Dia 0.61 x 25mm
6) Dia 5.0*Lmm
Purity: 99.95%
Surface: bright
Special size as per customer drawing.
3. Chemical properties of 99.95% Tungsten Needle Diameter 0.61mm:
| Quantitative analysis | ||||||||||
| Element | Ni | Mg | Fe | Pb | Al | Bi | Si | MO | Ca | P |
| Concentration(%) | 0.001 | 0.0005 | 0.002 | 0.0001 | 0.0005 | 0.0001 | 0.001 | 0.002 | 0.0005 | 0.001 |
| Element | C | O | N | Sb | Cu | |||||
| Concentration(%) | 0.001 | 0.003 | 0.0006 | 0.0006 | 0.0006 | |||||
| Purity(Metallic Base) W≥99.95% | ||||||||||
4. Applictaion of 99.95% Tungsten Needle Diameter 0.61mm:
Tungsten needle are used for TIG welding, which is a tungsten alloy bar made of 0.3%-5% rare earth elements such as cerium, thorium, lanthanum, zirconium, yttrium, etc., in the tungsten matrix by powder metallurgy. The most popular sizes are diameters 1.0, 1.6, 2.4, and 3.2. For TIG, the shape of the electrode tip is crucial, especially when using press-machined materials with diameters ranging from 0.25 to 6.4mm and standard lengths of 75 to 600. The electrode tip must be sharpened while employing DCSP, and the tip angle varies depending on the application range, electrode diameter, and welding current. Narrow joints require a smaller tip angle. When welding very thin materials, it is necessary to A low current, needle-like minimum electrode is used to stabilize the arc, while a properly grounded electrode ensures easy arc ignition, good arc stability and proper bead width. It is not essential to grind the electrode tip while welding with AC power since, with the right welding current, the electrode tip will take on a hemispherical shape. If the welding current is increased, the electrode tip will become bulb-shaped and may melt and contaminate the molten gold.
