Diameter 0.5~100mm Molybdenum Products Molybdenum Lanthanum Alloy Bar Molybdenum Products Molybdenum Bar 99.97% Purity
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Molybdenum Lanthanum Alloy Bar | Material | Molybdenum Lanthanum Alloy |
|---|---|---|---|
| Grade | MoLa | La Content | 0.4~0.7% |
| Diameter | 0.5~100mm | Length | 10~2500mm |
| Surface | Bright,Alkaline Washing,Polished,Black | Standard | ASTM B387 |
| High Light | 100mm Molybdenum Products,Alkaline washing Molybdenum Products,Molybdenum Lanthanum Alloy Bar |
||
Product Description

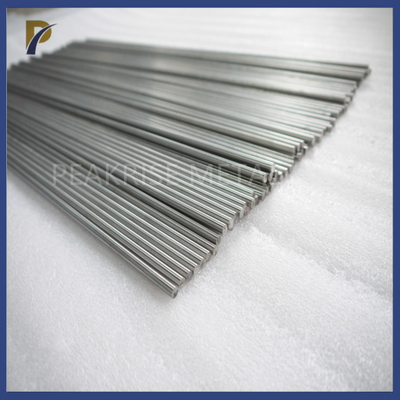

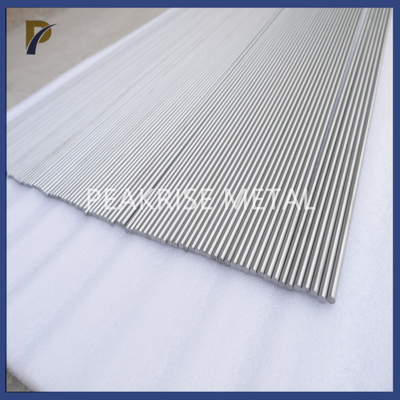

Molybdenum Lanthanum Alloy Bar
1. Description of Molybdenum Lanthanum Alloy Bar:
High-temperature molybdenum, grade MoLa, commonly known as molybdenum-lanthanum alloy, is made by doping molybdenum with a small proportion of lanthanum trioxide (La2O3) particles. This special microstructure remains stable at temperatures up to 2000°C. Consequently, even in operational settings, molybdenum-lanthanum oxide exhibits creep resistance. We mainly process these molybdenum alloys into high temperature furnace components such as vacuum furnace heat shields, heating body bars, sintering and annealing boats, stranded wires or evaporator coils.
2. Size and Tolerance of Molybdenum Lanthanum Alloy Bar:
| Name | Diameter | Tolerance of diameter |
| Forged MoLa rod | >80mm | +/-2.0mm |
| 25mm-80mm | +/-1.0mm | |
| swaging MoLa rod | 10mm-25mm | +/-0.2mm |
| 3.0mm-10mm | +/-0.1mm | |
| Bright MoLa rod | >20mm | +/-0.2mm |
| straighten MoLa rod | 0.5mm-3.0mm | +/-0.03mm |
| Polished MoLa rod | 0.8mm-50mm | +/-0.2mm |
3. Advantages of Molybdenum Lanthanum Alloy Bar:
1).The recrystallization temperature is higher 1400℃~1500℃;
2).Elongated particulate structure for improved ductility;
3).Antioxidant is stronger;
4).Higher creep resistance.
4. Resistivity of Molybdenum Lanthanum Alloy Bar:
| Temperture℃ | 20 | 600 | 1000 | 1200 | 1400 | 1700 | 1800 | 1900 | 2000 |
| Resistivity | 0.054 | 0.205 | 0.314 | 0.374 | 0.435 | 0.506 | 0.525 | 0.558 | 0.571 |
5. Chemical content of Molybdenum Lanthanum Alloy Bar:
| Grade | Main element% | Impurity components(less than%) | |||||||||
| Mo | Ti | Zr | C | La2O3 | C | 0 | N | Fe | Ni | Si | |
| Mo1 | Remian | — | — | — | — | 0.01 | 0.007 | 0.002 | 0.01 | 0.002 | 0.01 |
| TZM | Remian | 0.40~0.55 | 0.06~0.12 | 0.01~0.04 | — | — | 0.03 | 0.002 | 0.01 | 0.005 | 0.005 |
| MoLa | Remian | — | — | — | 0.4~0.7 | 0.01 | — | 0.002 | 0.01 | 0.002 | 0.01 |
