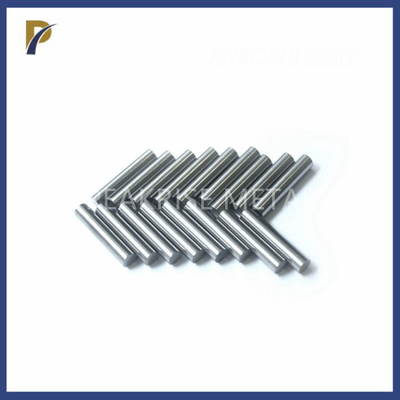

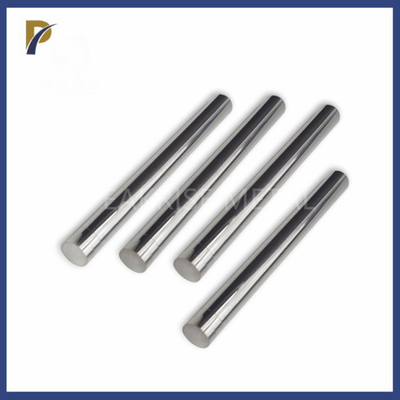

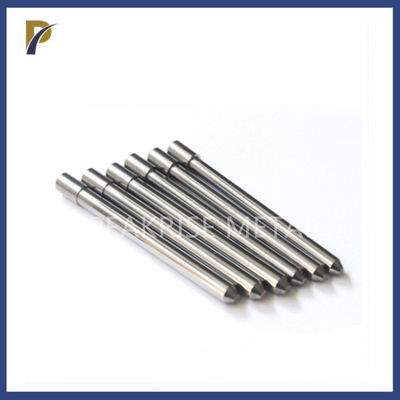

Purity 99.95% Tungsten Products Polished Pure Tungsten Rod Tungsten Alloy Rod Pure Tungsten Electrode For ARC Welding
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Purity 99.95% Polished Pure Tungsten Rod | Material | Pure Tungsten |
|---|---|---|---|
| Purity | 99.95% | Density | 19.3 G/cm3 |
| Diameter | 2.0~100mm | Surface | Polished，Black, |
| Grade | W1 | Melting Point | 3422°C |
| High Light | 9.95% Tungsten Products,Polished Tungsten Products,100mm Pure Tungsten Rod |
||
Product Description
Purity 99.95% Polished Pure Tungsten Rod
1. Description of Purity 99.95% Polished Pure Tungsen Rod:
Pure tungsten rod have high melting point, high temperature strength and creep resistance, as well as good thermal conductivity, electrical conductivity and electron emission properties, large specific gravity, low expansion coefficient and the lowest metal vapor pressure. It is generally prepared by powder metallurgy.
The unique characteristics of pure tungsten rods are low thermal expansion, good thermal conductivity, adequate electrical resistivity resistance, and high elastic modulus. As a result, tungsten rods are frequently employed in many industries. For instance, filaments, high-speed tools, automobile automatic products, lead-in lines, support lines, printer needles, different electrodes, quartz furnaces, and sputtering targets.
2. Size of Purity 99.95% Polished Pure Tungsen Rod:
| Product Condition | Diameter(mm) | Length(mm) | Diameter Tolerance(mm) |
| Forged tungsten rod | 2.0≤d<5.0 | 600 | +/-2% |
| 5.0≤d<6.5 | 300 | ||
| 6.5≤d<11.0 | 200 | ||
| Straightening tungsten rod | 0.8≤d<1.0 | 1000 | +/-2% |
| 1.0≤d<3.0 | 800 | ||
| Polished tungsten rod | 0.8≤d<3.0 | 800~1000 | +/-0.03 mm |
| 3.0≤d<6.5 | 300~600 | +/-0.03 mm | |
| 6.5≤d<10.0 | 200 | +/-0.08 mm |
Other size can be process as per customer's requirement.
3. Physical Properties of Purity 99.95% Polished Pure Tungsen Rod:
Pure Tungsten rod
|
Hardness
|
Melting
Point
|
Maximum use temperature
|
Resistivity
|
Conductivity
|
Thermal
Expansion
|
Thermal
Conductivity
|
|
69HRA
Min
|
3410°C
|
1700°C
|
5.6@20 °C µ ohm-cm)
|
31@20 °C %IACS
|
4.6 ppm / °C
|
165 W/m°k
|
4. General application of Purity 99.95% Polished Pure Tungsen Rod:
Sputtering targets.
Counterweight and heating element.
Glass melting.
Semiconductor Ion Implantation Components.
Electric light source and electric vacuum parts.
Industrial high temperature furnace refractory parts, heating elements, structural parts.
Electrodes for argon arc welding and resistance welding.
5.Process Craft of Purity 99.95% Polished Pure Tungsen Rod:
Sintering-----forging-----polishing-----finished product
6.Transportation of Purity 99.95% Polished Pure Tungsen Rod:
Shipping goods by TNT,DHL,Fedex,UPS,EMS etc.
Transporting products by air to airports in Beijing or Shanghai
