0.05mm 0.03mm 0.02mm Thickness Molybdenum Products Molybdenum Coil Strip Sheet Molybdenum Foil Moly Products
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | 0.05mm Thickness Molybdenum Strip Molybdenum Sheet In Coil | Material | Molybdenum And Molybdenum Alloy |
|---|---|---|---|
| Grade | Mo1,TZM,Mo-La | Purity | 99.95% |
| Density | 10.2g/cm3 | Thickness | 0.03~1.0mm |
| Width | 20~300mm | Use Temperture | 1100~1800℃ |
| High Light | 1.0mm Molybdenum Products,Mo1 Molybdenum Products,0.05mm Molybdenum Coil |
||
Product Description

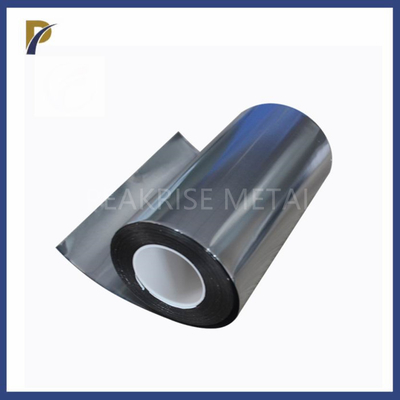

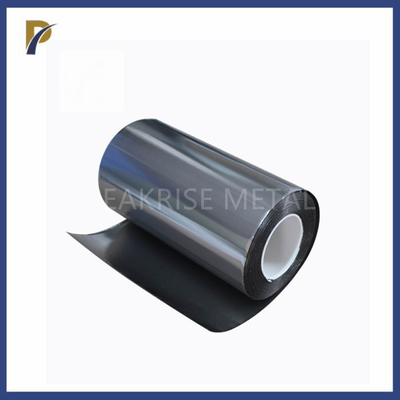

0.05 millimeters Molybdenum Sheet in Coil Molybdenum Strip
1. 0.05mm Molybdenum Strip Mo Sheet in Coil Description:
Molybdenum Strip is one of the molybdenum products. By machining the molybdenum plate produced by powder metallurgy, a molybdenum strip with a thickness ranging from 0.03 to 1.0 is produced.
The main goal of processing molybdenum strip is to produce the desired mechanical characteristics. Its primary manufacturing procedures involve bending, spinning, stretching, punching, and other operations so that it may be utilized in both high- and low-temperature environments. In terms of physical characteristics, it is similar to molybdenum plates. Electronics, electrical components, drawing goods, furnace insulation, and corrosion-resistant products all frequently use molybdenum strip.
2. Size Of Molybdenum Strip Mo Sheet In Coil, 0.05mm Thickness:
Molybdenum Strip
Material:Molybdenum
Grade:MO1,MOLa,TZM
Size:thickness:0.03～1.0mm,Width:20～300mm,Length:20mm～3000mm(We can be customized according to buyer's requirements)
Purity: ≥99.95%
Density:10.22 g / cm3
Use temperture: 1100~1800℃
Standard: ASTM B386
Surface:,Cold rolled bright surface, pickled surface.
3. The chemical composition of 0.05 mm thick coils of molybdenum strip:
| Use temperature | 1800°C | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Highest temperature | 2200°C | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Quantitative analysis | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Element | O | Ca | Fe | Pb | Al | Cd | Si | Bi | Mg | P | ||||||||||||||||||||||||||||||||||||||||||||||||||
| Concentration(%) | 0.003 | 0.002 | 0.005 | 0.0001 | 0.002 | 0.0001 | 0.002 | 0.0001 | 0.002 | 0.001 | ||||||||||||||||||||||||||||||||||||||||||||||||||
| Element | C | Ni | N | Sb | Sn | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Concentration(%) | 0.01 | 0.003 | 0.003 | 0.0005 | 0.0001 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Purity(Metallic Base) Mo≥99.95% | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
4. Application of Molybdenum Strip in Coils, 0.05 mm Thick:
The construction of furnace molds and parts, as well as the usage of molybdenum strip as a raw material for processed parts, are common in the semiconductor and electronics sectors. Molybdenum strips are used to make heat shields, high temperature furnaces, and heating components for sintering.
It is frequently utilized as a raw material for parts in the electronics and semiconductor sectors as well as in building furnace molds and components. The production of electric light source components, electric vacuum devices, heating elements, and refractory materials for power semiconductors in high temperature furnaces are further applications for molybdenum strip.
