Seamless Molybdenum Tube Target For LCD Industry Molybdenum Tube High Purity Molybdenum High Temperature Molybdenum Tube
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Seamless Molybdenum Tube Target For LCD Industry | Material | Molybdenum And Molybdenum Alloy |
|---|---|---|---|
| Purity | 99.95% | Density | 10.2g/cm3 |
| Out Diameter | ≤250mm | Wall Thickness | 3~25mm |
| Length | ≤2700mm | Surface | Bright |
| High Light | Seamless Molybdenum Tube Target,LCD Industry Molybdenum Tube Target,25mm Molybdenum Products |
||
Product Description

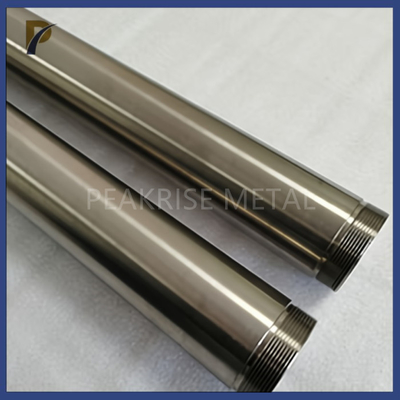

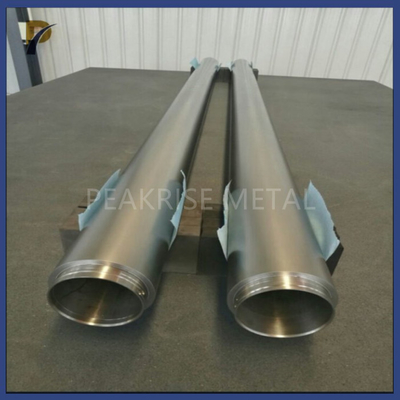

Seamless Molybdenum Tube Target For LCD Industry
1. Describe The Seamless Molybdenum Tube That Is Designed For The LCD Industry:
One popular molybdenum target product is molybdenum tube target. Its length is generally ≤2700mm, the outer diameter ≤ 250mm, the wall thickness is 3-25mm, and the flatness is 0.1mm. The molybdenum content is ≥99.95(%), the impurity content is 0.04(%), and the density is 10g/cm2.
2. Performance Of Seamless Molybdenum Tube Target For LCD Industry:
Molybdenum tube target has the properties of creep resistance,
Extremely low thermal expansion coefficient,
Extremely low vapor pressure,
Excellent electrical conductivity,
Excellent thermal conductivity
High melting point.
3. Chemical Content Of Seamless Molybdenum Tube Target For LCD Industry:
| Grade | % impurity content % max | |||||||
| Si | Ni | Al | Fe | N | C | Mg | O | |
| Mo-1 | 0.010 | 0.005 | 0.002 | 0.010 | 0.002 | 0.010 | 0.002 | 0.008 |
4. Application Of Seamless Molybdenum Tube Target For LCD Industry:
The molybdenum tube target has good high temperature resistance and can be used continuously for more than 4,000 hours in a vacuum environment at 1800 degrees. Molybdenum tubes are widely used in the electric vacuum industry, and can be used as heating tubes, high temperature environmental cooling tubes, high temperature environmental protection tubes, etc. Large molybdenum tube can be used as ring target, furnace, etc., and small molybdenum tube instrument parts.
Molybdenum tubes target are mainly used in thermocouple protection tubes in high temperature furnaces, supports in sapphire single crystal furnaces, high temperature sintering furnaces, molybdenum tube targets used in TFT-LCD, and copper indium gallium selenide CLGS and cadmium telluride thin films Sputtering rotary tungsten-molybdenum tube target for solar cell coating.
Company profile:
Shaanxi Peakrise Metal Co., Ltd. is an rich experienced tungsten and molybdenum non-ferrous metal production enterprise,main products include tungsten-copper alloy, molybdenum-copper alloy, tungsten-molybdenum alloy, high specific gravity tungsten alloy, tungsten alloy, molybdenum alloy and other more than 100 kinds of products.In 2010, with the surge in export sales of products in this industry, we began to focus on foreign trade export business,provide high-quality non-ferrous metal products for the international market.After years of development,at present, it has become a comprehensive non-ferrous metal production enterprise integrating manufacturing and processing, material research and development, product testing, and stock inventory.The development of nearly ten years reminds us that high-quality products and services are always our top priority,at the same time, we continue to expand into new fields and provide high-quality products and services for more domestic and global customers.Products are exported to Taiwan, Ukraine, South Korea, the United States, Australia, Germany, Iran and other countries, and have established long-term good cooperative relations with customers. Our products are highly recognized and evaluated by customers.
