Sandblasted Surface Forged Molybdenum Alloy Pipe 4 - 150mm Molybdenum Pipe Moly Alloy Moly Products
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Forged Molybdenum And Molybdenum Alloy Pipe | Material | Molybdenum And Molybdenum Alloy |
|---|---|---|---|
| Grade | 361,364,Mo-La,Mo1,TZM | Purity | 99.95% |
| Density | 10.2g/cm3 | Out Diameter | 4-150mm |
| Wall Thickness | ≥1.0mm | Surface | Bright,Alkaline Washing，Sandblasted Surface |
| High Light | Forged Molybdenum Pipe,150mm Molybdenum Alloy Pipe,Sandblasted Surface Molybdenum Products |
||
Product Description

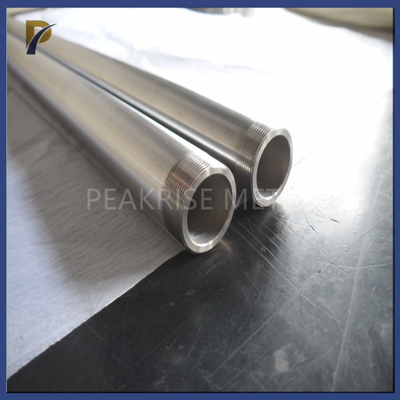

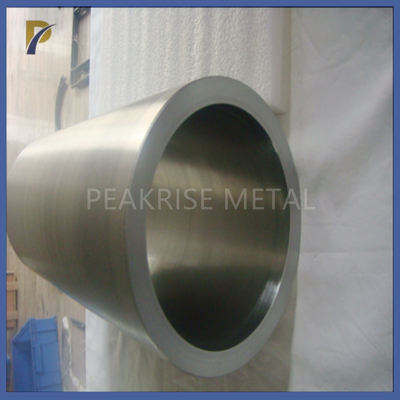

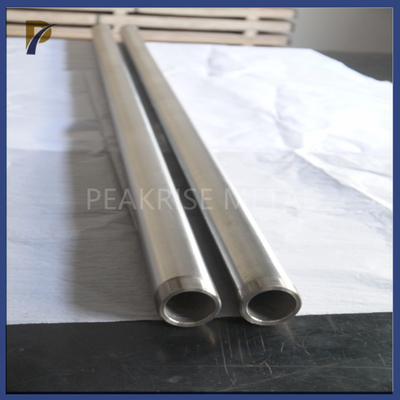

Forged Molybdenum And Molybdenum Alloy Pipe
1. Description Of Forged Molybdenum And Molybdenum Alloy Pipe:
Molybdenum pipe
Grade: Mo1,Mo2,TZM,MoLA
Purity :> =99.95%
Quick delivery:within 20 days
Melting Point: 2610 °C
Boiling Point: 5560 °C
Density: 10.22 g/cm3
High melting point, high density, high temperature oxidation resistance, lengthy service life, and corrosion resistance are all features of the product.
2.Main Chemical Content Of Forged Molybdenum And Molybdenum Alloy Pipe:
| Grade | Impurities(Max,％) | |||||||
| Si | Mg | Al | Fe | Ni | C | N | O | |
| Mo-1 | 0.01 | 0.005 | 0.002 | 0.01 | 0.005 | 0.01 | 0.003 | 0.008 |
| Mo-2 | 0.01 | 0.005 | 0.005 | 0.01 | 0.005 | 0.01 | 0.003 | 0.02 |
3. Dimensions Of Forged Molybdenum And Molybdenum Alloy Pipe:
| Density | Outer Diameters | Length | Wall Thickness | |
| Forged Molybdenum Tube/Pipe | ≥10.2g/cm3 | 4-150mm | ≤800mm | ≥1.0mm |
| Sintered Molybdenum Tube/Pipe | ≥9.7g/cm3 | 100-500mm | ≤800mm | ≥5.0mm |
Other size according to clients’ requirements.
4. Application Of Forged Molybdenum And Molybdenum Alloy Pipe:
1).Molybdenum Pipe are widely used as the contact materials in silicon controlled rectifier diodes, transistors and thyristors.
2). Molybdenum Pipe are used as mounting material for power semiconductor devices.
3).Mostly utilized for high temperature furnace components, crucibles, high temperature furnaces for missile rocket nozzles, etc.
5.Characteristics Of Forged Molybdenum And Molybdenum Alloy Pipe:
High melting point, high-strength,
Outstanding thermal conductivity,
Excellent resistance to thermal impact and corrosion
The types and processing methods of molybdenum pipes include: deep hole drilling molybdenum pipe, sintered molybdenum tubes, welded molybdenum tubes, molybdenum coiled tubes, and drawn molybdenum tubes. Sintered molybdenum tubes are used to produce large molybdenum tubes, mainly used in smelting equipment, furnace tubes, annular targets, vacuum heating chambers, etc. The maximum size can be 1200mm in diameter; welded molybdenum tubes are used for equipment parts that do not require strict size requirements. It is vacuum welding, the size of use should not be too large, and the diameter of the specification is 8-500mm; the production process of the drawn molybdenum tube is complicated, and it is used to produce small molybdenum tubes with a diameter of 1.0-6mm.
Company Profile:
Shaanxi Peakrise Metal Co., Ltd. is an rich experienced tungsten and molybdenum non-ferrous metal production enterprise,main products include tungsten-copper alloy, molybdenum-copper alloy, tungsten-molybdenum alloy, high specific gravity tungsten alloy, tungsten alloy, molybdenum alloy and other more than 100 kinds of products.In 2010, with the surge in export sales of products in this industry, we began to focus on foreign trade export business,provide high-quality non-ferrous metal products for the international market.After years of development,at present, it has become a comprehensive non-ferrous metal production enterprise integrating manufacturing and processing, material research and development, product testing, and stock inventory.The development of nearly ten years reminds us that high-quality products and services are always our top priority,at the same time, we continue to expand into new fields and provide high-quality products and services for more domestic and global customers.Products are exported to Taiwan, Ukraine, South Korea, the United States, Australia, Germany, Iran and other countries, and have established long-term good cooperative relations with customers. Our products are highly recognized and evaluated by customers.
Peakrise Metal has a variety of production equipment, such as intermediate frequency sintering furnace, vacuum arc melting furnace, plasma electron beam melting furnace, vacuum annealing furnace, various rolling mills, wire drawing machines, plasma welding rooms, lathes, milling machines, sawing machines, drilling machines, Shears, Stamping Equipment, Cutting Equipment, Grinders, Straightening Machines, CNC, etc.
