MoSi2 Grade Silicon Molybdenum Rod Molybdenum Heating Elements Molybdenum Rod Moly Heat Rod MoSi2 Rod
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Silicon Molybdenum Rod Heating Element | Material | Molybdenum Disilicide |
|---|---|---|---|
| Grade | MoSi2 | Size | As Per Customer's Drawing |
| Application | Resistive Heating Element | MOQ | 1pc |
| High Light | Silicon Molybdenum Rod,MoSi2 Grade Molybdenum Rod,Molybdenum Heating Element Rod |
||
Product Description
Silicon Molybdenum Rod Heating Element
1. Silicon Molybdenum Rod Heating Element Description:
Molybdenum disilicide-based silicon molybdenum rod resistive heating element is a high temperature and oxidation-resistant resistance heating element.When used in a high temperature oxidizing atmosphere, like other Si-based high temperature resistant materials, a bright and dense quartz (SiO2) glass film will rapidly form on the surface of MoSi2 under high temperature and oxygen atmosphere, which can protect the inner layer of the silicon molybdenum rod from no longer is further oxidized, so the silicon molybdenum rod element has a unique high temperature oxidation resistance.
In an oxidizing atmosphere, the maximum operating temperature is about 1700 ℃, and the resistivity of MoSi2 increases rapidly with the increase of temperature. The old and new silicon molybdenum rod heating elements can be combined together because, in most cases, the element's resistance does not vary with time of use.
The silicon molybdenum rod electric heating element's service life depends on how the surface load of the heating element is chosen in relation to the structure, working environment, and temperature of the heating apparatus.
2. Heating element made of silicon molybdenum has both physical and chemical properties:
Density: 5.6～5.8g/cm3
Bending strength: 20MPa (20℃)
Vickers hardness (HV): 570kg/mm2
Porosity: 0.5～2.0%
Water absorption: 0.5%
Thermal elongation: 4%
Emissivity: 0.7～0.8(800～2000℃)
3. Type Of Silicon Molybdenum Rod Heating Element:

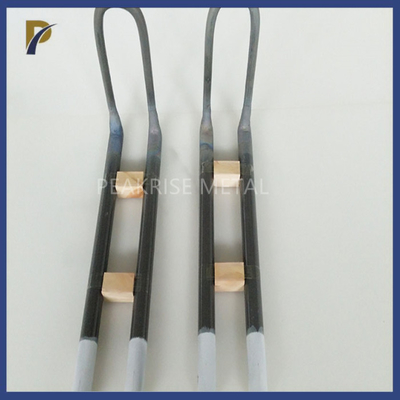

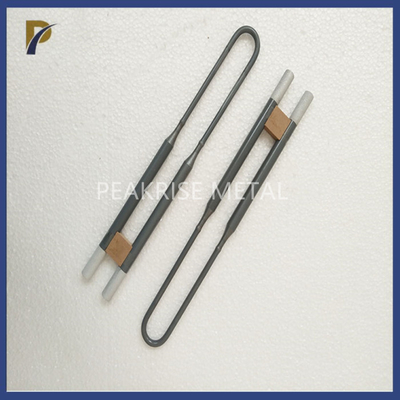

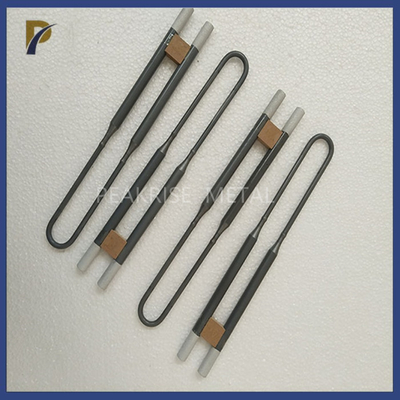

U type of Molybdenum Disilicide rod:

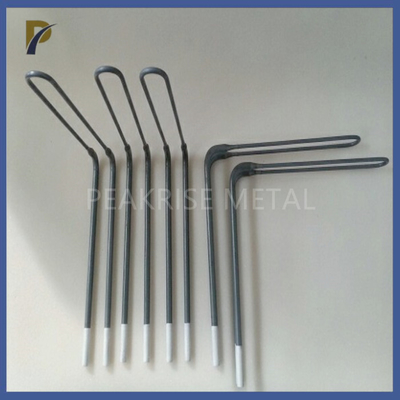

L type of Molybdenum Disilicide rod:
L-shaped elements are used at the end of the electric furnace where there is not enough space to connect the elements, or because the electric furnace is too high, so that only one element is not enough to fully cover the required heating height. The problem can be solved by installing several layers of L-shaped bending elements.
4. Application Of Silicon Molybdenum Rod Heating Element:
Products made from silicon molybdenum rod heating elements are widely employed in many industries, including high-performance precision ceramics, glass, ceramics, refractory materials, crystals, electronic components, and semiconductor materials research and manufacturing. high-grade artificial crystals, Production of precision structural cermets, glass fibers, optical fibers and high-grade alloy steels.
The silicon carbide rod is a non-metal electric heating element, which is made of high-purity green hexagonal silicon carbide as the main raw material, and is recrystallized at a high temperature of 2200 °C. The normal use temperature can reach 1450 °C. For use in air, no protective atmosphere is required. Applicable to all kinds of electric furnace electric kiln.
The silicon molybdenum rod has high oxidation resistance. Under the high temperature atmosphere, a dense quartz SIO2 protective layer is formed on the surface of the original to prevent the continued oxidation of MOSI2. Surface tension causes the SIO2 protective layer, which has a melting point of 1710 degrees, to melt when the element's temperature exceeds 1700 degrees. As a result, the SIO2 loses its protective properties and melts into droplets.The SIO2 protective layer regenerates when the element continues to be used in an oxidizing atmosphere.
Application of silicon carbide rod: Due to the high operating temperature of silicon carbide rod, it has the characteristics of high temperature resistance, oxidation resistance, corrosion resistance, fast heating, long lifespan, minimal temperature-related deformation, and simple installation and maintenance ,Has good chemical stability.
If it is matched with an automatic power supply system, it can not only obtain an accurate constant temperature, but also automatically adjust the temperature according to the curve according to the actual needs of the production process. It has found extensive use in the manufacture of machinery, metallurgy, light chemical products, ceramics, semiconductors, analysis and testing, scientific research, among other fields. It has also taken on the role of the electric heating element in a variety of electric furnaces and electric kilns. Tunnel kilns, roller kilns, glass kilns, vacuum furnaces , Muffle furnace, smelting furnace and various heating equipment, the use of silicon carbon rod heating is convenient, safe and reliable. It is widely used in various high temperature electric furnaces and electric kilns in electronics, magnetic materials, powder metallurgy, ceramics, glass, metallurgy and machinery industries. And its electric heating equipment.
