M4 M6 M8 M5 Molybdenum Nuts Screw High Temperature Single Crystal Furnace Heating Parts
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Molybdenum Nuts Screw | Material | Molybdenum And Molybdenum Alloy |
|---|---|---|---|
| Grade | Pure Mo,TZM,MoLa | Purity | 99.95% |
| Size | M2,M3,M4,M5,M6,M8,M10 Etc. | Surface | Bright,Alkaline Washing |
| High Light | M5 Molybdenum Nuts Screw,Single Crystal Furnace Heating Nuts Screw,99.95% Molybdenum Nuts Screw |
||
Product Description

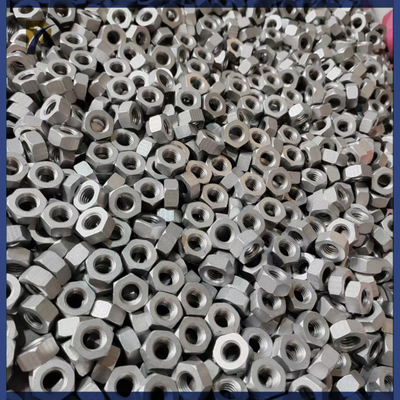

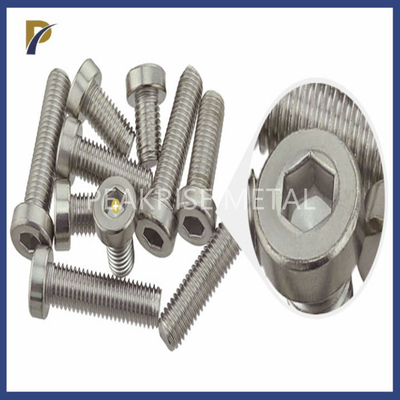

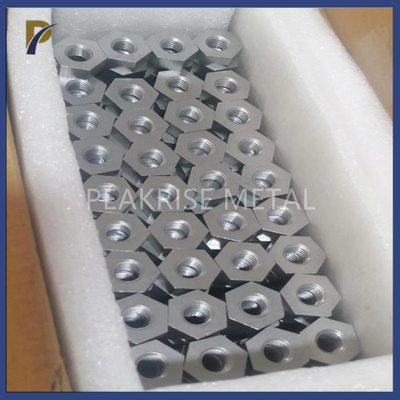

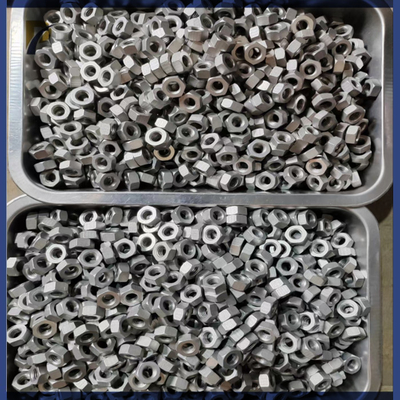

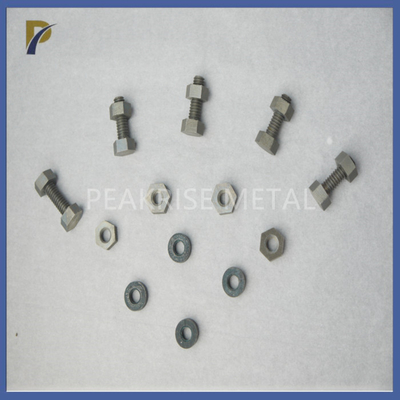

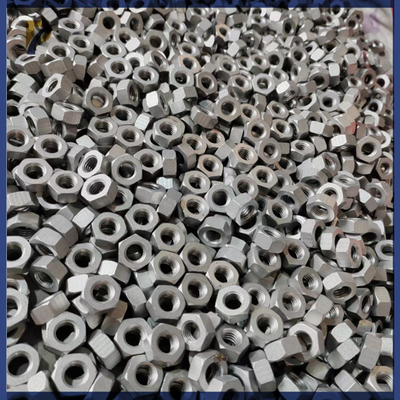

Molybdenum Nuts Screw High Temperature Furnace Single Crystal Furnace Heating Parts
1.Description Of Molybdenum Nuts Screws:
Molybdenum nut is a special nut made of molybdenum material. Compared with ordinary nuts, it has higher strength, better corrosion resistance and higher heat resistance.
The specifications and dimensions of molybdenum nuts mainly include diameter and pitch. Commonly used diameter specifications are M3, M4, M5, M6, M8, etc.; commonly used pitch specifications are 0.5mm, 0.7mm, 1.0mm, 1.25mm, 1.5mm, etc.
| Spec. | Thread pitch | Spec. |
Number of threads
|
|||
| Coarse pitch | Fine pitch | Very fine pitch | Coarse number | Fine number | ||
| M3 | 0.5 | 0.35 | 4# | 40 | 48 | |
| M4 | 0.7 | 0.5 | 6# | 32 | 40 | |
| M5 | 0.8 | 0.5 | 8# | 32 | 36 | |
| M6 | 1.0 | 0.75 | 10# | 24 | 32 | |
| M7 | 1.0 | 0.75 | 12# | 24 | 28 | |
| M8 | 1.25 | 1.0 | 0.75 | 1/4 | 20 | 28 |
| M10 | 1.5 | 1.25 | 1.0 | 4/16 | 18 | 24 |
| M12 | 1.75 | 1.5 | 1.25 | 3/8 | 16 | 24 |
| M14 | 2.0 | 1.5 | 1.0 | 7/16 | 14 | 20 |
2. Technical Parameters Of Molybdenum Nuts Screws:
1). Strength: The strength of molybdenum nuts is much higher than ordinary nuts. Its strength can reach 2.5Gpa, which is more than 4 times that of ordinary nuts.
2). Corrosion resistance: Molybdenum nuts have excellent corrosion resistance. Under high temperature and high pressure, it is not easy to rust or corrode.
3). Heat resistance: Molybdenum nuts can withstand high temperature environments, and their heat resistance is very good. In high temperature environment, it can still maintain its high strength and stability.
3. Advantages Of Molybdenum Nuts Screws:
1). High strength: The strength of molybdenum nuts is more than 4 times that of ordinary nuts, and can withstand huge pressure in high-strength use environments.
2). Good corrosion resistance: molybdenum nuts have excellent corrosion resistance, and are not easy to rust or corrode.
3). Strong heat resistance: molybdenum nuts can maintain their high strength and stability in high temperature environments, and can withstand high temperature environments.
4). Long service life: molybdenum nuts have a long service life and can be used for a long time in harsh environments.
