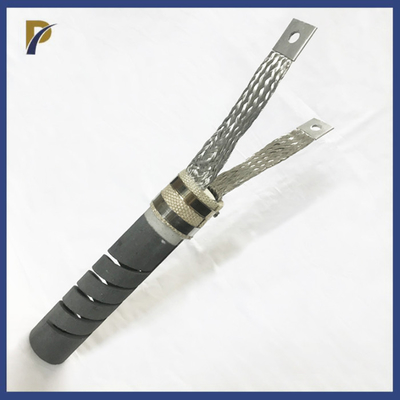

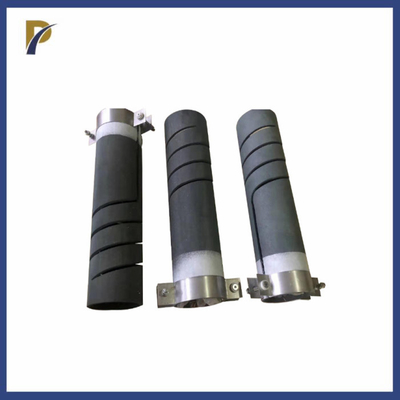

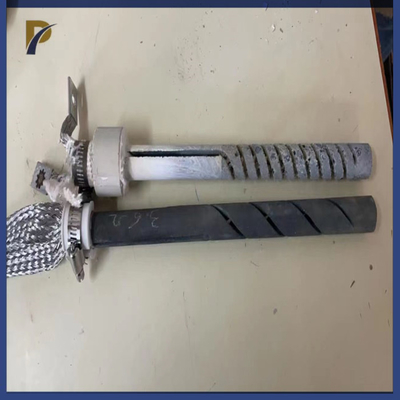

Spiral Silicon Carbide Heating Element For Box Type Electric Muffle Furnace
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Silicon Carbide Heating Element | Type | Spiral And Double Spiral |
|---|---|---|---|
| Material | Silicon Carbide | Density | 3.217g/cm3 |
| Use Temperature | 1000~1400℃ | MOQ | 1pc |
| High Light | Electric Furnace Silicon Carbide Rod,Spiral Silicon Carbide Heating Element,Muffle Furnace Silicon Carbide Heating Element |
||
Product Description
Product Description:
Silicon carbide rod is a kind of non-metal electric heating element, which is made of silicon carbide as the main raw material, processed according to a certain material ratio, and processed by silicification, hardening and calcination at a high temperature of 2200 ℃. Silicon carbide rods have a large resistivity, and when the surface temperature of the heating part in the air is 1100°C, the resistance of the silicon carbide rods changes nonlinearly with the increase of temperature.

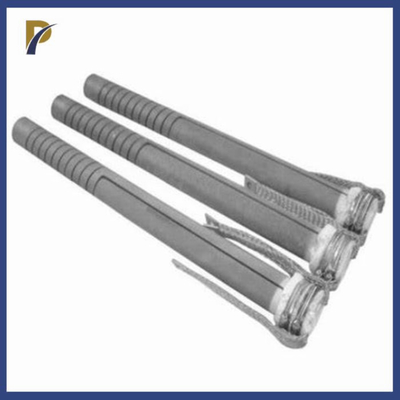

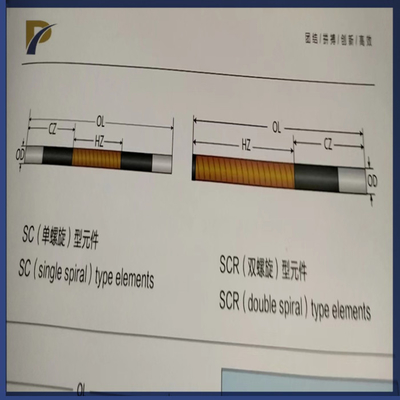

Silicon carbide rod models refer to 3-segment rods, 5-segment rods, U-shaped rods, H-shaped rods, and gun-shaped rods. Simply put, 5-segment rods should be used for occasions that require high homogenization, otherwise 3-segment rods should be used; H-shaped rods or U-shaped rods should be used when single-ended wiring is required; gun-shaped rods should be used for feed basins. The specifications of silicon carbide rods refer to the diameter, the length of the heating element, the length of the cold end, the length of the bridge, and the center distance. For straight rods (3-section rod and 5-section rod), the length of the cold end depends on the thickness of the furnace wall; the length of the heating element must correspond to the width of the feed liquid tank, generally not less than the width of the feed liquid tank.
Type: spiral and double spiral
Applications:
Silicon carbide rods are widely used in high-temperature fields such as electronics, magnetic materials, powder metallurgy, ceramics, glass, semiconductors, analysis and testing, and scientific research. And electric heating elements of various heating equipment.
Support and Services:
Spiral Silicon Carbide Heating Element Technical Support and Service
- 24/7 technical support via phone, email or chat
- Full range of product installation, maintenance and repair services
- Expert advice and guidance on product selection and usage
- Full range of after-sales support and warranty services
- Flexible and tailored services to meet customer needs
Packing and Shipping:
FAQ:
- Q1: What is the Brand Name of the Spiral Silicon Carbide Heating Element?
- A1: The Brand Name of the Spiral Silicon Carbide Heating Elementis PRM.
- Q2: Where are the Spiral Silicon Carbide Heating Element from?
- A2: The Spiral Silicon Carbide Heating Element are from China.
- Q3: What are the product features of Spiral Silicon Carbide Heating Element?
- A3: The features of Spiral Silicon Carbide Heating Element are high temperature resistance, oxidation resistance, corrosion resistance, fast heating, long life, small deformation at high temperature, easy installation and maintenance.
- Q4: What are the application areas of Spiral Silicon Carbide Heating Element?
- A4: Spiral Silicon Carbide Heating Elementare widely used in aerospace, electronics, petrochemical industry, metallurgy, machinery and other fields.
- Q5: What are the benefits of using Spiral Silicon Carbide Heating Element?
- A5: Spiral Silicon Carbide Heating Element provide superior performance, durability and long service life to the users.
-
