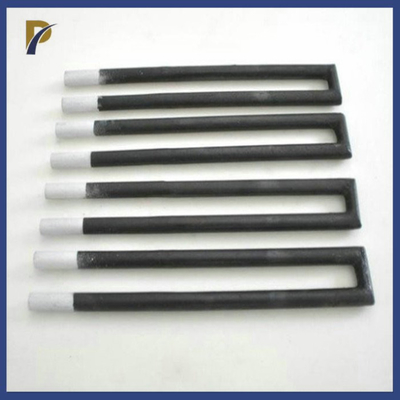

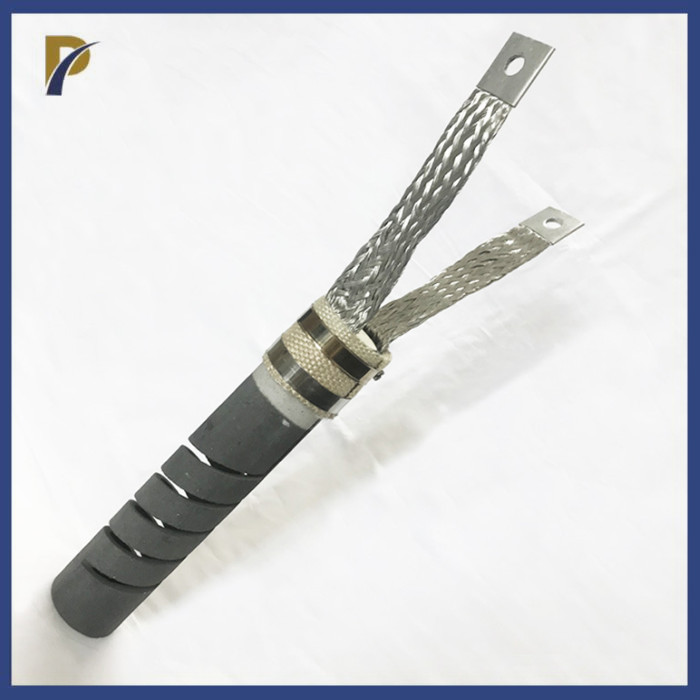

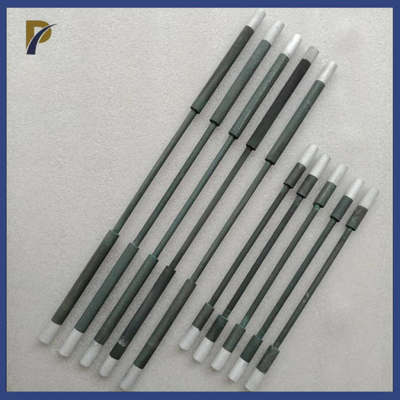

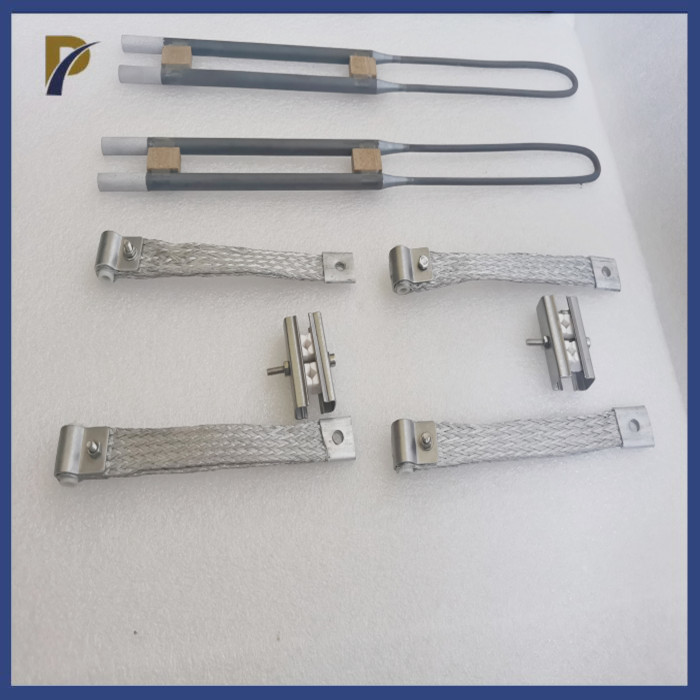

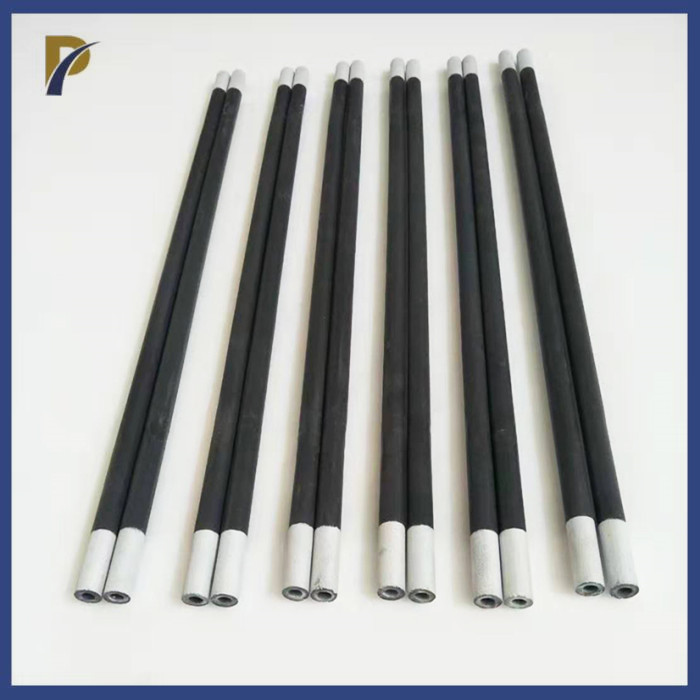

SiC Heating Rod MoSi2 Molybdenum Disilicide Rod For High Temperature Electric Furnace
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | SiC Heating Rod MoSi2 Heating Rod | Density | 5.6～5.8g/cm3 |
|---|---|---|---|
| Operating Temperature | 1600~1800°C | Size | Φ3/6,Φ4/9,Φ5/10,Φ6/12,Φ9/18,Φ12/24 Etc. |
| Bending Strength | 20MPa(20℃) | HV | 570kg/mm2 |
| High Light | Electric Furnace Molybdenum Disilicide Rod,SiC Heating Rod,MoSi2 Molybdenum Disilicide Rod |
||
Product Description
Product Description:
Silicon-molybdenum rods and silicon-carbon rods are both resistive heating elements, and are high temperature, corrosion-resistant and oxidation-resistant, and are often used in the preparation of ceramics, magnetic materials, refractory materials and new materials.
The difference between silicon molybdenum rod MoSi2 and silicon carbide SiC rod:
| Difference between silicon molybdenum rod MoSi2 and silicon carbide SiC rod | |
| MoSi2 heating rod | SiC heating rod |
| Silicon-molybdenum rod is generally 1300~1700°C. | The operating temperature of the silicon-carbon rod is generally 1000~1400°C, |
| Silicon-molybdenum rods are generally used in roller kilns, large muffle furnaces, box furnaces, and tube furnaces. | Silicon carbide rods are generally only suitable for our small kilns, small box-type electric furnaces, and muffle furnaces. |
| Silicon molybdenum rods are generally connected in series, because the temperature of silicon molybdenum rods is It is relatively high, and it is more convenient to install in series. | In general, silicon carbide rods are connected in parallel and supplemented by series connection, which can reduce the resistance and keep the temperature from being too high. |
| Silicon molybdenum rods are made of molybdenum disilicide, | Silicon carbide rods are generally made of silicon carbide after high-temperature firing and crystallization. |
| Silicon-molybdenum rods will not age during long-term use (aging: the resistance will increase with the extension of use time). | The resistance of the silicon carbide rod increases with the extension of the service time. |
Pls send to us exact data of below drawing,then we will quote for you.
Applications:
Silicon-molybdenum rod heating element products are widely used in metallurgy, steelmaking, glass, ceramics, refractory materials, crystals, electronic components, semiconductor materials research, manufacturing and other fields, especially for high-performance precision ceramics, high-grade artificial crystals, Production of precision structure cermets, glass fiber, optical fiber and advanced alloy steel.
Non-metallic electric heating elements known as silicon carbide rods are created by recrystallizing high-purity green hexagonal silicon carbide at a temperature of 2200 ° C. It can operate at a temperature of up to 1450 ° C. It can be used continuously for over 2,000 hours in appropriate working conditions. No protective environment is necessary for use in air. It works with all models of electric furnaces and kilns.
Support and Services:
Technical Support and Service For SiC Heating Rod MoSi2 Molybdenum Disilicide Rod
1. 24/7 customer service and technical support
2. Free product consultations
3. On-site installation and maintenance
4. Training and product testing
5. Customized product solutions
6. Warranty and post-warranty services
Packing and Shipping:
Package by Plywood case and Shipping by various modes of transportation.
FAQ:
SiC Heating Rod MoSi2 Molybdenum Disilicide Rod FAQ
- Q: What is the Brand Name of SiC Heating Rod MoSi2 Molybdenum Disilicide Rod?
- A: The Brand Name of SiC Heating Rod MoSi2 Molybdenum Disilicide Rod is PRM.
- Q: Where is the Place of Origin for SiC Heating Rod MoSi2 Molybdenum Disilicide Rod?
- A: The Place of Origin for SiC Heating Rod MoSi2 Molybdenum Disilicide Rod is China.
- Q: Are SiC Heating Rod MoSi2 Molybdenum Disilicide Rod high temperature resistant?
- A: Yes, SiC Heating Rod MoSi2 Molybdenum Disilicide Rod are high temperature resistant.
- Q: What are the applications of SiC Heating Rod MoSi2 Molybdenum Disilicide Rod?
- A: SiC Heating Rod MoSi2 Molybdenum Disilicide Rod are widely used in Small kilns, small electric box furnaces, muffle furnaces, large muffle furnaces, box furnaces and tube furnaces.
- Q: What is the size of SiC Heating Rod MoSi2 Molybdenum Disilicide Rod?
- A: The size of SiC Heating Rod MoSi2 Molybdenum Disilicide Rod varies depending on the product.
-
