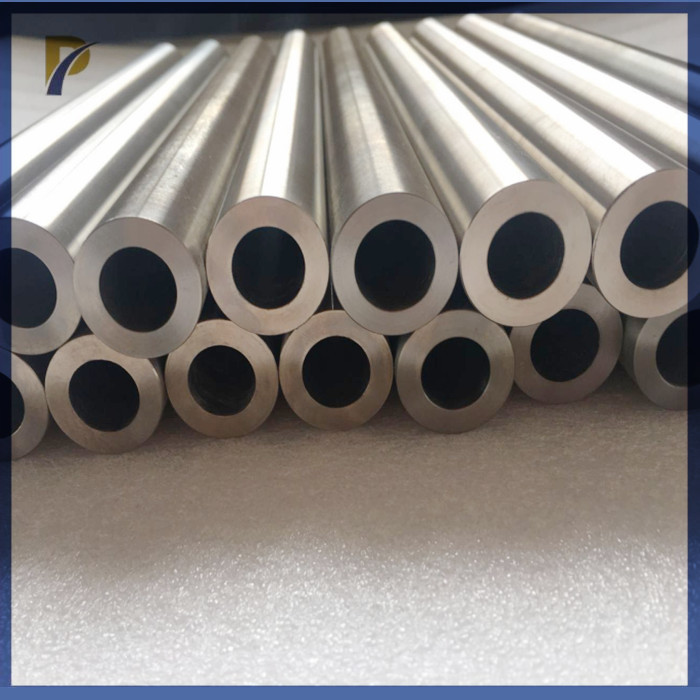

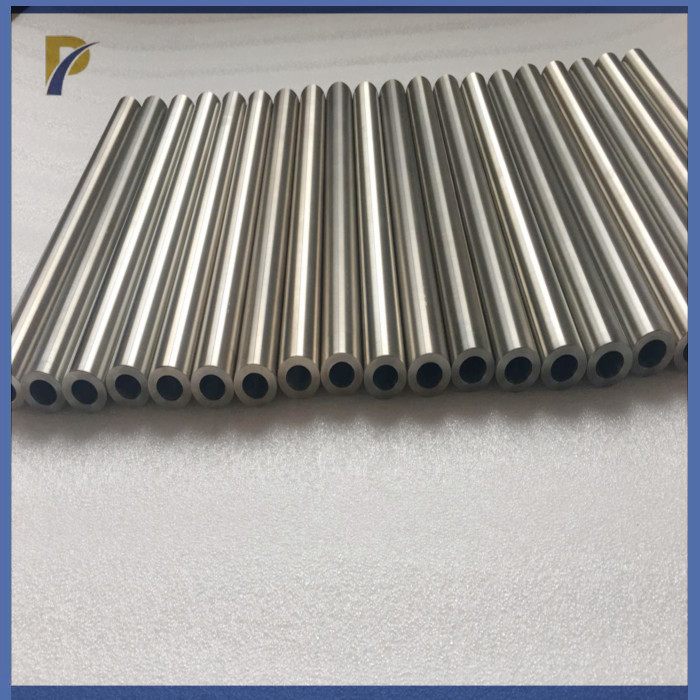

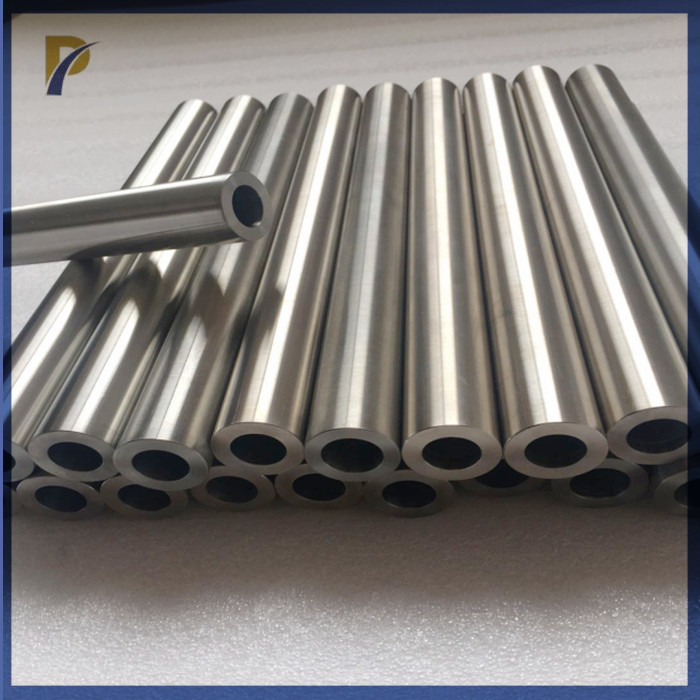

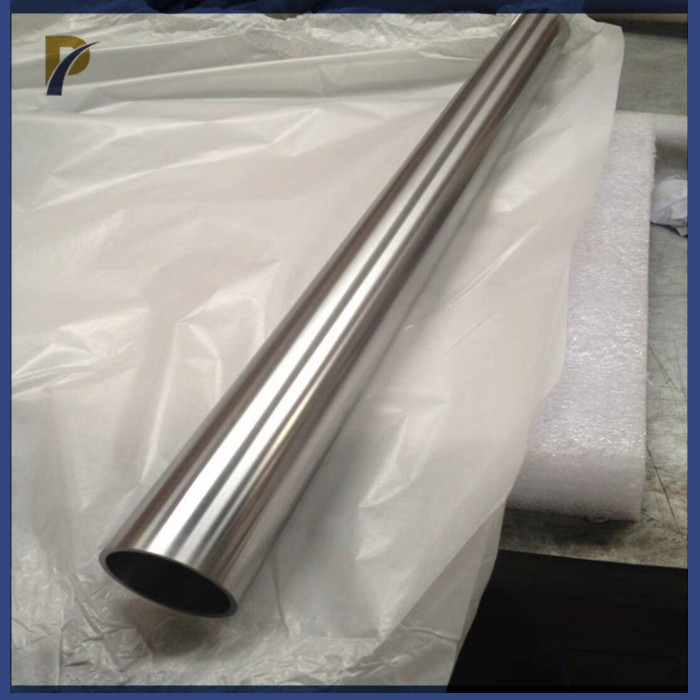

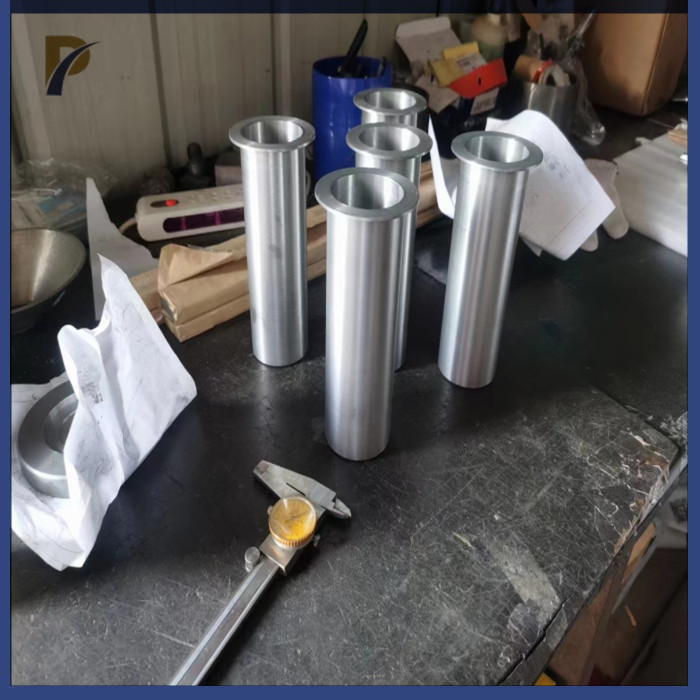

Deep Hole Drilling TZM Molybdenum Alloy Tube For Heating High Temperature Stove
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | TZM Molybdenum Alloy Tube | Density | 10.2-10.3 G/cm³ |
|---|---|---|---|
| Melting Point | 2610-2640°C | Tensile Strength | 685MPa |
| Yield Strength | 560~1150Mpa | Diameter | 10~510mm |
| Elongation | <20% | Processing | Deep Hole Drilling |
| High Light | Deep Hole Drilling TZM Tube,TZM Molybdenum Alloy Tube,Heating TZM Molybdenum Alloy Pipe |
||
Product Description
Product Description:
Titanium zirconium molybdenum tubes (TZM tubes) have good properties similar to TZM alloys, such as high melting point, high strength, high temperature resistance, corrosion resistance, etc., and are widely used in electronic tubes for application components, heating high temperature furnaces, and thermocouple protection in high temperature furnaces tube and other fields.
High Temperature Tensile Strength and Elongation of TZM Alloy (Molybdenum Zirconium Titanium Alloy) (Ti0.5/Zr0.08)
|
Temperature /℃
|
Performance
|
|
|
Tensile strength/MPa
|
Elongation /%
|
|
|
RT
|
1140 ~1210
|
7.5~13.0
|
|
1000
|
700 ~720
|
5.2
|
|
1200
|
320 ~360
|
9.0
|
|
1300
|
190 ~210
|
11.5 ~13.5
|
|
1400
|
140 ~170
|
11.0 ~16.0
|
The outer diameter, inner diameter, wall thickness and length of the molybdenum alloy tube can be customized according to requirements.
According to different processing and production methods, titanium zirconium molybdenum tubes are divided into:
Deep hole drilled TZM tubes
Sintered TZM tubes
Welded TZM tubes
TZM coiled tubes
Drawn TZM tubes, etc.
Applications:
TZM molybdenum alloy tubes are widely used in electronic tubes for application components, heating high-temperature furnaces, thermocouple protection tubes in high-temperature furnaces, etc.
PRM's TZM Molybdenum Alloy is a titanium-zirconium-molybdenum alloy, made from titanium, zirconium and molybdenum, and its place of origin is China. It is an ideal choice for many applications due to its excellent properties. TZM Molybdenum Alloy is available in the form of rods, plates, sheets, strips, and wires. It has superior creep resistance and high temperature strength, making it ideal for use in high temperature applications. It is also corrosion resistant, making it a great choice for applications in corrosive environments.
Support and Services:
TZM Molybdenum Alloy Tube Technical Support and Service
We offer comprehensive technical support and service for our TZM Molybdenum Alloy products, including:
* Detailed product information and application instructions
* Product testing and analysis services
* Ongoing technical support and problem solving assistance
* Custom design and manufacturing services
Packing and Shipping:
TZM Molybdenum Alloy Packaging and Shipping:
TZM Molybdenum Alloy is packaged in plywood case and shipped in wooden pallets. The dimensions of the wooden pallets is customized according to the customer's needs and specifications. The packaging and shipping of TZM Molybdenum Alloy is done with utmost care to ensure that the product is safe and secure during transit.
FAQ:
- Q: What is PRM TZM Molybdenum Alloy Tube?
- A: PRM TZM Molybdenum Alloy Tube is a high-performance alloy composed of molybdenum, zirconium, and titanium. It is an ideal material for various industrial applications due to its excellent heat resistance, strength, and ductility.
- Q: Where is PRM TZM Molybdenum Alloy Tube made?
- A: PRM TZM Molybdenum Alloy Tube is made by PRM in China.
- Q: What is the model number of PRM TZM Molybdenum Alloy Tube?
- A: The model number of PRM TZM Molybdenum Alloy Tube is PRM-TZM.
- Q: What are the advantages of PRM TZM Molybdenum Alloy Tube?
- A: PRM TZM Molybdenum Alloy Tube has excellent heat resistance, strength, and ductility, making it an ideal material for various industrial applications.
- Q: What are the applications of PRM TZM Molybdenum Alloy Tube?
- A: PRM TZM Molybdenum Alloy Tube is used in various industrial applications such as aerospace, automotive, and medical.
-
-
