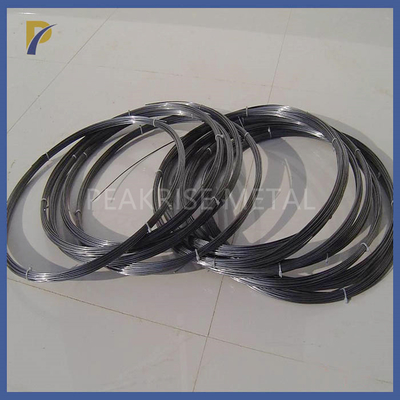

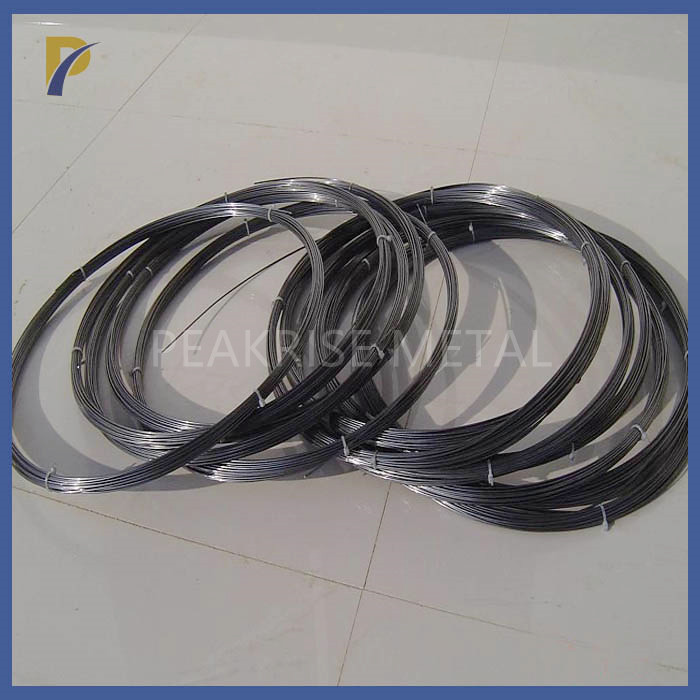

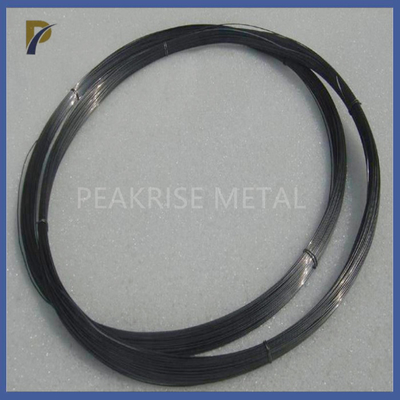

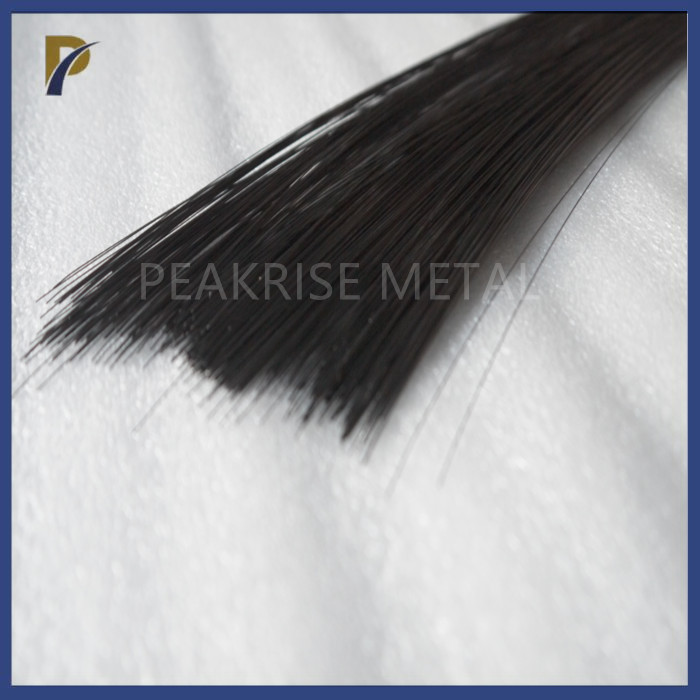

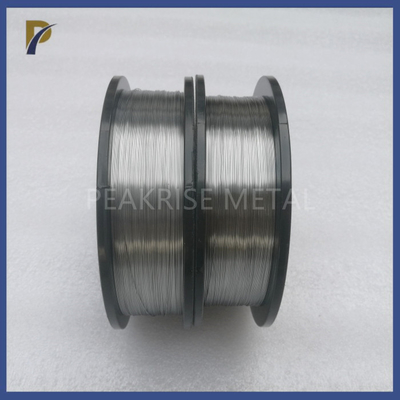

0.3mm TZM Molybdenum Alloy Wire Electrolytic Polishing Black For Furnace Components
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | TZM Molybdenum Alloy Wire | Diameter | 0.013~3.0mm |
|---|---|---|---|
| Purity | 99.6% | Grade | TZM (Ti0.5/Zr0.08) |
| Use Temperature | 1600~1800℃ | Surface | Electrolytic Polished,black,white Surface |
| High Light | High Temperature TZM Wire,TZM Molybdenum Alloy Wire,Electrolytic Polishing TZM Molybdenum Alloy Wire |
||
Product Description
Product Description:
TZM molybdenum alloy wire is composed of molybdenum, zirconium and titanium. The typical composition ratio is about 85-99% molybdenum, about 0.5% titanium, about 0.08% zirconium.
Comparison of physical properties between TZM alloy wire (molybdenum-zirconium-titanium alloy) and pure molybdenum:
|
Material
|
Desnity /g·cm-3
|
Melting Point /℃
|
Boiling point/℃
|
|
TZM alloy
(Ti0.5/Zr0.08)
|
10.22
|
2617
|
4612
|
|
Pure Mo
|
10.29
|
2610
|
5560
|
Mechanical Properties of TZM Alloy Wire:
|
Mechannical
Properties
|
Elongation
/%
|
Elastic
Modulus
/GPa
|
Yield
Strength
/MPa
|
Tensile
strength
/MPa
|
Fracture
toughness
/(MP·m1/2)
|
|
Data
|
<20
|
320
|
560~1150
|
685
|
5.8~29.6
|
Diameter: 0.013~3.0mm
Surface: Electrolytic polished,black,white surface
Use Temperature:1600~1800℃
Applications:
PRM TZM Molybdenum Alloy Wire: Applications and Uses
High-temperature application: Due to its excellent high-temperature resistance, TZM molybdenum alloy wire is often used as electrodes and wires in melting and melting processes such as electric melting, arc melting, and electron beam melting in high-temperature environments.
Electronic industry: Due to its good electrical conductivity and corrosion resistance, the alloy wire can be used in electronic devices, semiconductor manufacturing, vacuum tubes, electron beam welding and other fields.
Chemical industry: The corrosion resistance of TZM molybdenum alloy wire makes it suitable for applications in corrosive environments such as chemical reactors, electrolytic cells, and electrolytic cells.
Other applications: the alloy wire can also be used in aerospace, aero-engine, nuclear industry, medical equipment and other fields.
Packing and Shipping:
FAQ:
Q1: What is PRM TZM Molybdenum Alloy Wire?
A1: PRM TZM Molybdenum Alloy wire is a molybdenum alloy containing titanium, zirconium and carbon. It is produced by PRM, a company located in China.
Q2: What is the composition of PRM TZM Molybdenum Alloy Wire?
A2: PRM TZM Molybdenum Alloy wire mainly contains molybdenum, with small amounts of titanium, zirconium and carbon.
Q3: What are the benefits of PRM TZM Molybdenum Alloy Wire?
A3: PRM TZM Molybdenum Alloy wire has excellent mechanical strength, creep resistance and corrosion resistance, making it suitable for high-temperature applications. It also has high thermal conductivity and electrical conductivity.
Q4: What are the applications of PRM TZM Molybdenum Alloy Wire?
A4: PRM TZM Molybdenum Alloy wire is usually used for high-temperature applications such as furnace parts, heating elements and thermocouples. It is also used for springs, electrodes and high-temperature components.
Q5: What is the production process of PRM TZM Molybdenum Alloy Wire?
A5: PRM TZM Molybdenum Alloy wire is produced by melting the raw materials in a vacuum induction furnace and then pouring the molten alloy into molds. The alloy is then cooled and forged to the desired shape.
