High Purity 99.95% Tantalum Rod Polished Surface RO5200 RO5400 Ta1
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Tantalum Rod | Purity | Min.99.95% |
|---|---|---|---|
| Surface | Polished | Diameter | ￠3~￠120mm |
| Standard | ASTM B365 | Grade | RO5200, RO5400, RO5252(Ta-2.5W), RO5255(Ta-10W),TaNb3,TaNb20 |
| Density | ≥16.67g/cm3 | Application | Chemical Industry, Electronic Industry, Aerospace Industry, Aviation Industry |
| High Light | Polished Surface Tantalum Bar,High Purity 99.95% Tantalum Rod,Ta1 Tantalum Rod |
||
Product Description
High Purity 99.95% RO5200 RO5400 Ta1 Tantalum Rod
1. Specification Of RO5200 RO5400 Ta1 Tantalum Rod:
Tantalum rod Tantalum bar
Material: RO5200, RO5400, RO5252(Ta-2.5W), RO5255(Ta-10W),TaNb3,TaNb20
Diameter: ￠3~￠120mm Length:max3000mm
Purity: ≥99.95%
Surface: bright,polish
Standard: As per ASTM B 365
| Grade | Main elements | Impurity content less than % | |||||||||||
| Ta | Nb | Fe | Si | Ni | W | Mo | Ti | Nb | O | C | H | N | |
| Ta1 | Remain | —— | 0.005 | 0.005 | 0.002 | 0.01 | 0.01 | 0.002 | 0.04 | 0.02 | 0.01 | 0.0015 | 0.01 |
| Ta2 | Remain | —— | 0.03 | 0.02 | 0.005 | 0.04 | 0.03 | 0.005 | 0.1 | 0.03 | 0.01 | 0.0015 | 0.01 |
| TaNb3 | Remain | ＜3.5 | 0.03 | 0.03 | 0.005 | 0.04 | 0.03 | 0.005 | —— | 0.03 | 0.01 | 0.0015 | 0.01 |
| TaNb20 | Remain | 17.0～23.0 | 0.03 | 0.03 | 0.005 | 0.04 | 0.03 | 0.005 | —— | 0.03 | 0.01 | 0.0015 | 0.01 |
| Ta2.5W | Remain | 0.005 | 0.005 | 0.002 | 3 | 0.01 | 0.002 | 0.04 | 0.02 | 0.01 | 0.0015 | 0.01 | |
| Ta10W | Remain | 0.005 | 0.005 | 0.002 | 11 | 0.01 | 0.002 | 0.04 | 0.02 | 0.01 | 0.0015 | 0.01 | |
|
Diameter (mm) |
Dia tolerance(mm) |
Length (mm) |
Tolerance (mm) |
||
| Gorged rod | Pulling rod | Machine rod | |||
| 3.0-4.5 | - | 0.05 | - | 500-1500 | ±2 |
| 4.5-6.5 | ±0.15 | - | - | 500-1500 | ±2 |
| 6.5-10 | ±0.15 | - | - | 400-1500 | ±2 |
| 10-16 | ±0.15 | - | - | 300-1200 | ±2 |
| 16-18 | ±0.15 | - | - | 200-1500 | ±2 |
| 18-25 | - | - | ±0.5 | ±2 | |
| 25-40 | - | - | ±0.5 | ±2 | |
| 40-50 | - | - | ±0.6 | ±2 | |
| 50-65 | - | - | ±0.7 | ±2 | |
| Rod diameter 0.125’’(3.18mm)~2.5" (63.5mm) | |||
| Grade |
Ultimate tensile strength minimum, lb/in2 (MPa) |
Minimum yield strength, lb/in2 (MPa) |
Elongation, min % (1 inch gauge length) |
| RO5200/RO5400 | 25000 (172) | 15000 (103) | 25 |
| RO5252 | 40000 (276) | 28000 (193) | 20 |
| RO5255 | 70000 (482) | 55000 (379) | 20 |
| RO5240 | 40000 (276) | 28000 (193) | 25 |
2. Application Of RO5200 RO5400 Ta1 Tantalum Rod:
Tantalum rod mainly used in corrosion-resistant and superconducting industries. It can be used as tantalum capacitors, tantalum electrodes, and tantalum processing parts to make heating parts and heat-insulating parts for vacuum high-temperature furnaces. It can be used to make cookers and heaters in the chemical industry. , coolers, various utensils and devices, etc.
Process Flow Of Tantalum Rod: smelting-forging-inspection-polishing-vacuum annealing-inspection-packaging.
3. Package & Shipping Of RO5200 RO5400 Ta1 Tantalum Rod:

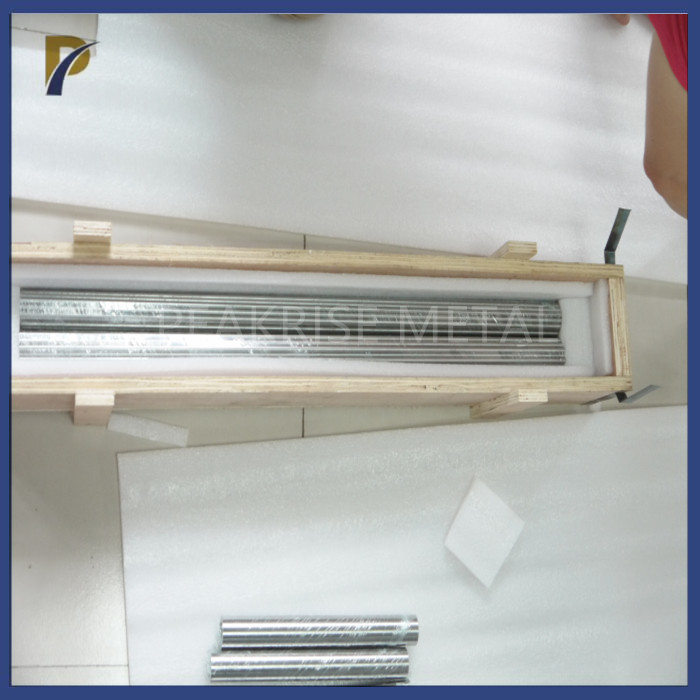

Packaging with foam plastics in all side of plywood case,and then shipping by express,air,sea,rail transport.
4. FAQ:
1).What are the common applications of tantalum rods?
Tantalum rods find use in industries like electronics, aerospace, chemical processing, and medical devices. They are often used in the manufacture of high-temperature and corrosion-resistant equipment.
2). What are the available grades of tantalum rods, and how do I choose the right one for my application?
Tantalum rods come in different grades, such as R05200 and R05400. The choice of grade depends on factors like temperature, corrosion resistance, and electrical properties required for your specific application. Consult with a supplier to select the appropriate grade.
3). What is the typical lead time for ordering tantalum rods?
Lead times can vary depending on the supplier and the specific requirements of your order. It's advisable to contact suppliers in advance to discuss lead times and ensure timely delivery.
