Zr702 35ml 50ml Zirconium Crucible Laboratory Analysis Low Form Zr Crucible
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Zirconium Crucible | Grade | Zr702 |
|---|---|---|---|
| Purity | >99.7% | Shape | Low Form, Straight Wall, Flange Crucible |
| Volume | 5ml,10ml,15ml,20ml,25ml,30ml,35ml,40ml Etc, | Size | According To Customer's Drawing |
| MOQ | 1pc | Application | Laboratory Analysis |
| High Light | Laboratory Analysis Zr Crucible,50ml Zirconium Crucible,35ml Zirconium Crucible |
||
Product Description
Product information:
Name: Zirconium crucible for laboratory analysis
Shape: low form,with flange,straight wall or according to customer's drawing
Grade: Zr 702
Volume: 5ml,10ml,15ml,20ml,25ml,30ml,35ml,40ml,45ml,50ml etc,
Size: according to customer drawing or our common size.
Surface: bright
Place of origin:Shaanxi ,China
MOQ: 1pc
Zirconium crucible low form are especially adaptable to the needs of the analytical chemistry laboratory, such as in strong alkaline fusions employed to reduce refractory samples to a soluble
form, and for high temperature ignition ashing purposes.
Zirconium metal is a most effective all-round crucible for fusions using sodium carbonate or sodium peroxide and is an excellent low-cost replacement for platinum. Based on an average of 100 fusions per crucible, zirconium is more cost-effective than less expensive crucibles of porcelain or steel.
The Common Size of Zirconium Crucible:
| Low form Zirconium crucible | |||||
| Top diameter(mm) | Bottom diameter (mm) | Height (mm) | Wall thickness (mm) | Capacity (ml) | |
| 22 | 18 | 20 | 2 | 3.6ml | |
| 26 | 16 | 20 | 2 | 5.0ml*2mm | |
| 30 | 24 | 26 | 2 | 10ml*2mm | |
| 40 | 26 | 41 | 1 | 30ml*1mm | |
| 42 | 27 | 42 | 2 | 30ml*2mm | |
| 42 | 30 | 42 | 1.6 | 35ml*1.6mm | |
| 41 | 33 | 42 | 2 | 35ml*2mm | |
| 43 | 34 | 40 | 1 | 40ml*1mm | |
| 47 | 40 | 35 | 1 | 45ml*1mm | |
| 49 | 42 | 36 | 2 | 45ml*2mm | |
| 48 | 38 | 45 | 3 | 45ml*3mm | |
| 47 | 40 | 38.5 | 1 | 50ml*1mm | |
| 48 | 40 | 42 | 2 | 50ml*2mm | |
| 56 | 44 | 50 | 2 | 80ml*2mm | |
| AutoFluxer crucible with flanged | |||||
| 48 | 29 | 33 | 2 | 25ml*2mm | |
| 60 | 36 | 39 | 1 | 50ml*1mm | |
| 60 | 36 | 43 | 2 | 50ml*2mm | |

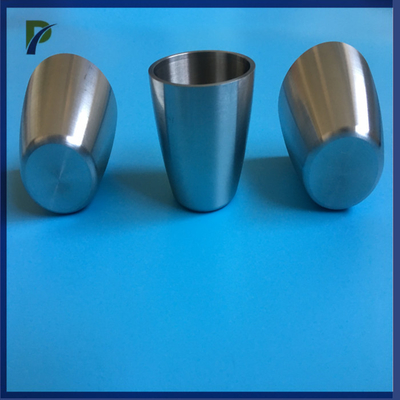

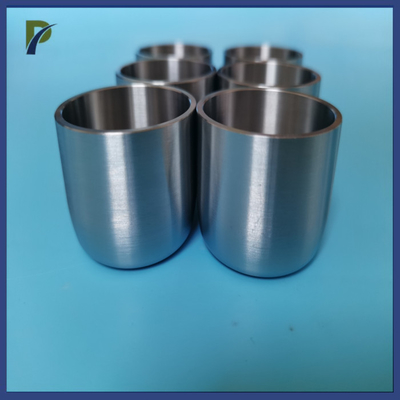

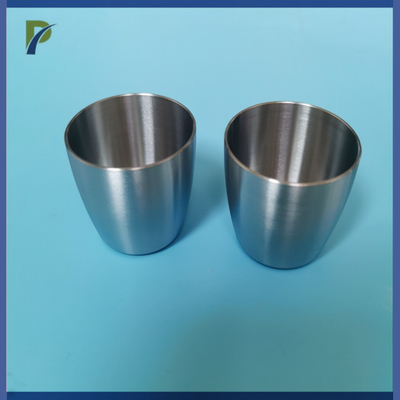

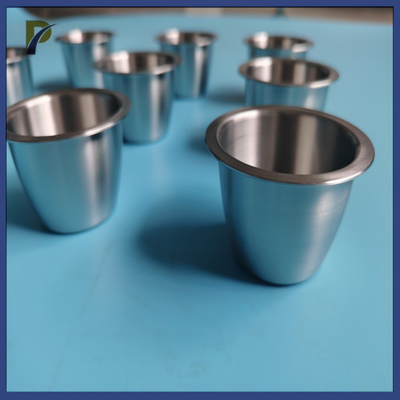

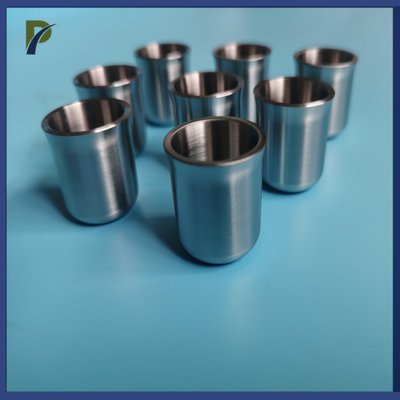

Crucible Show:
We can process various crucibles according to customer drawings.For more information,pls contact with our sale team.
