99.95% Molybdenum Products Circles For Power Semiconductor / Electric Vacuum Devices Molybdenum Disk Molybdenum Disc

  • 99.95% Molybdenum Products Circles For Power Semiconductor / Electric Vacuum Devices Molybdenum Disk Molybdenum Disc
  • 99.95% Molybdenum Products Circles For Power Semiconductor / Electric Vacuum Devices Molybdenum Disk Molybdenum Disc
  • 99.95% Molybdenum Products Circles For Power Semiconductor / Electric Vacuum Devices Molybdenum Disk Molybdenum Disc
Place of Origin China
Brand Name PRM
Certification ISO9001
Model Number Mo circles
Minimum Order Quantity 1pc
Price $50~150/kg
Packaging Details Plywood case
Delivery Time 7~10 work days
Payment Terms T/T
Supply Ability 2000kgs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Molybdenum Circles For Power Semiconductor Devices And Electric Vacuum Devices Material Molybdenum And Molybdenum Alloy
Purity 99.95% Density 10.2g/cm3
Shape Circles Size As Per Customer Request
High Light

Electric Vacuum Devices Molybdenum Circles

,

Power Semiconductor Devices Molybdenum Products

,

Molybdenum Products Circles
Leave a Message
Product Description

      Molybdenum Circles For Power Semiconductor Devices And Electric Vacuum Devices

1. Description of Molybdenum Circles For Semiconductor and Electric Vacuum Devices:

Mo Circles  Mo disc    Mo disk


Dia.(10-500mm) x thickness(0.1-35)mm
Density:10.2g/cm3

Purity:99.95%.99.97%

meterial:Mo1,TZM,Mo-La
Surface: black,C.C,bright,polished

Standard: ASTMB 386

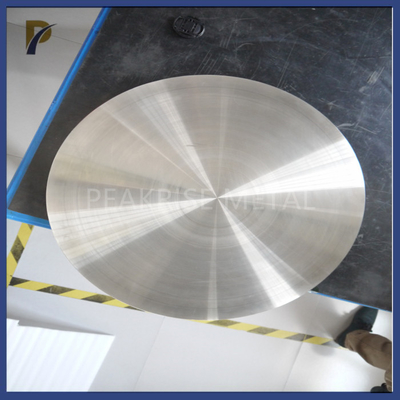

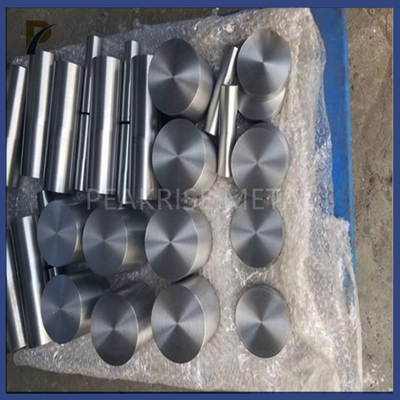

99.95% Molybdenum Products Circles For Power Semiconductor / Electric Vacuum Devices Molybdenum Disk Molybdenum Disc 099.95% Molybdenum Products Circles For Power Semiconductor / Electric Vacuum Devices Molybdenum Disk Molybdenum Disc 1



2. Chemical Content of Molybdenum Circles For Semiconductor and Electric Vacuum Devices:



Product Name Molybdenum disc
Tensile strength 610 Mpa
Elongation ≥10%
Material Composition Mo1,TZM,Mo-La
Purity ≥99.95%
Use temperature 1800°C
Highest temperature 2200°C
Quantitative analysis
Element Bi Ca P Pb Al Ni Si Mg Fe Cu
Concentration(%) 0.0006 0.0006 0.001 0.0006 0.003 0.0006 0.003 0.0006 0.001 0.0006
Element C O Sb
Concentration(%) 0.001 0.005 0.0006
Purity(Metallic Base) Mo≥99.95%
Quantitative analysis
Element Si Mn Ni Cu V Zr O P Fe Mg
Concentration(%) 0.002 0.0009 0.0008 0.0018 0.013 0.086 0.32 0.001 0.0011 0.0015
Element Al Ti Ca C N
Concentration(%) 0.001 0.5 <0.001 0.012 0.0022
Purity(Metallic Base) Mo≥99.06%(TZM)
Element Ni Mg Fe Pb Al Bi Si Cd P
Concentration(%) 0.0014 <0.0001 0.0047 <0.0001 0.0002 <0.0001 <0.001 <0.001 <0.001
Element C N Sb Sn Cu
Concentration(%) 0.0021 0.03 <0.0001 <0.0001 <0.0005
Purity(Metallic Base) Mo≥99.97


3. Production steps of Molybdenum Circles For Semiconductor and Electric Vacuum Devices:

Molybdenum billet (raw material)-inspection-hot rolling-leveling and annealing-alkali washing-inspection-warm rolling-vacuum annealing-inspection-cold rolling-leveling-shearing vacuum annealing-inspection-packaging

4. Application of Molybdenum Circles For Semiconductor and Electric Vacuum Devices:

After rolling with a deformation amount of more than 60%, the density of molybdenum circle is basically close to the theoretical density of molybdenum, so it has high strength, uniform internal structure and excellent high temperature creep resistance, so it is widely used in production. Reflective screen and cover plate in sapphire crystal growth furnace, reflective screen, heating belt, connector in vacuum furnace, sputtering target for plasma coating, high temperature resistant boat and other products

Also molybdenum circle widely used as contact material in silicon controlled rectifier diodes, transistors and thyristors, mounting of power semiconductor devices and base materials for heat sinks,power semiconductor devices and electric vacuum devices.


Company Information:

Shaanxi Peakrise Metal Co., Ltd. is an rich experienced tungsten and molybdenum non-ferrous metal production enterprise,main products include tungsten-copper alloy, molybdenum-copper alloy, tungsten-molybdenum alloy, high specific gravity tungsten alloy, tungsten alloy, molybdenum alloy and other more than 100 kinds of products.In 2010, with the surge in export sales of products in this industry, we began to focus on foreign trade export business,provide high-quality non-ferrous metal products for the international market.After years of development,at present, it has become a comprehensive non-ferrous metal production enterprise integrating manufacturing and processing, material research and development, product testing, and stock inventory.The development of nearly ten years reminds us that high-quality products and services are always our top priority,at the same time, we continue to expand into new fields and provide high-quality products and services for more domestic and global customers.Products are exported to Taiwan, Ukraine, South Korea, the United States, Australia, Germany, Iran and other countries, and have established long-term good cooperative relations with customers. Our products are highly recognized and evaluated by customers.








Do you want to know more about our products?

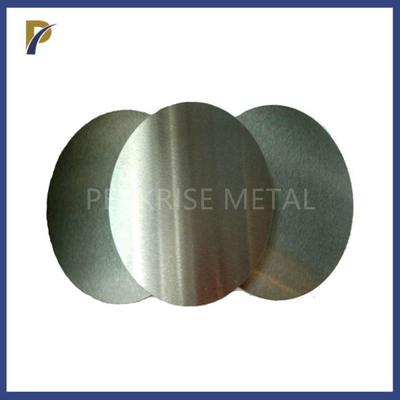

99.95% Molybdenum Products Circles For Power Semiconductor / Electric Vacuum Devices Molybdenum Disk Molybdenum Disc 2
