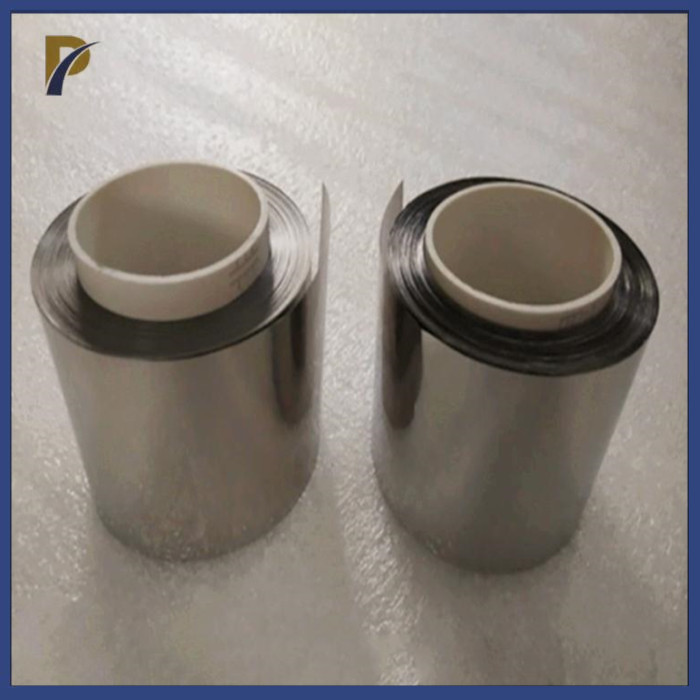

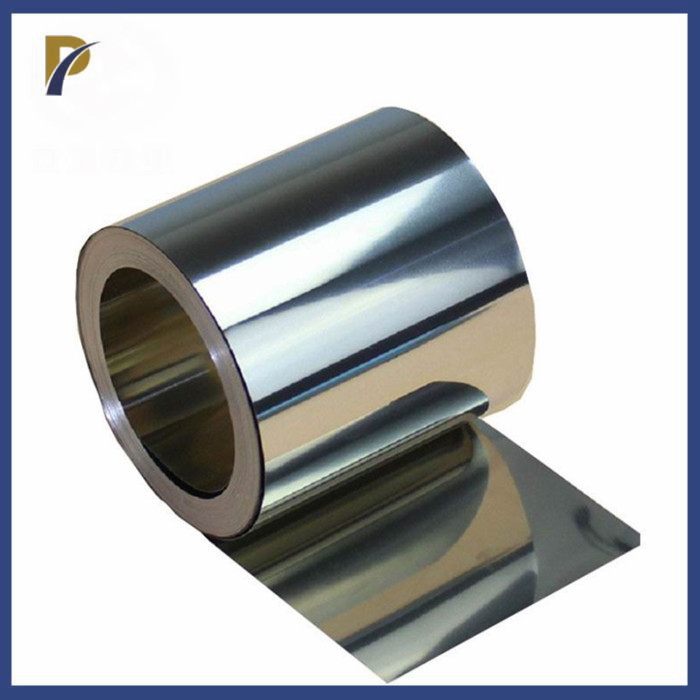

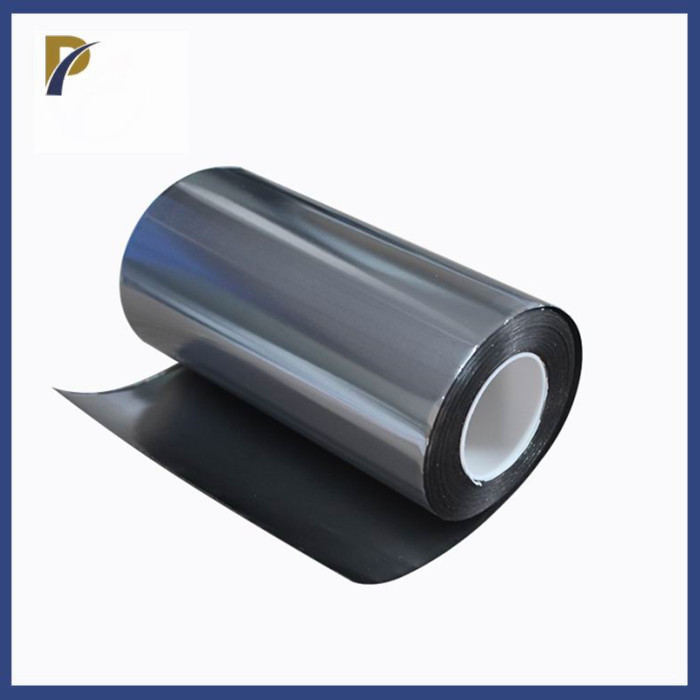

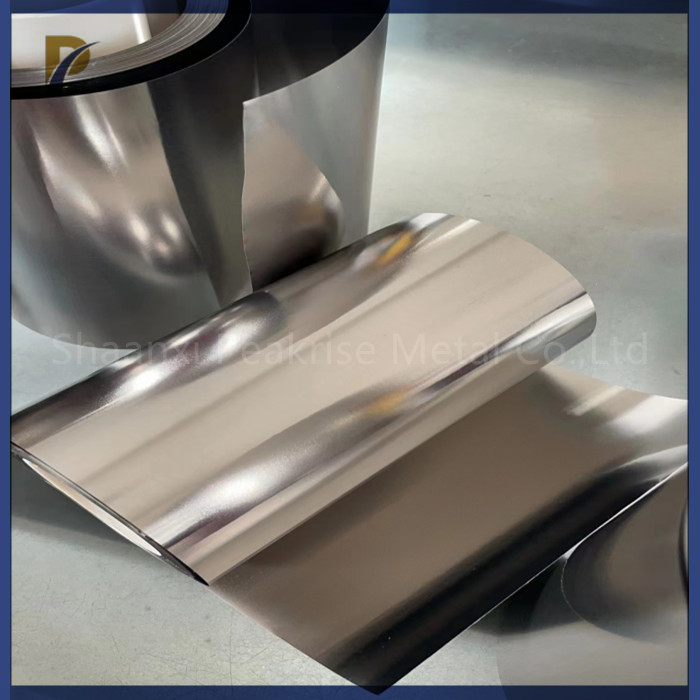

0.05mm Thickness Bright Surface Niobium Foil RO4200 Nb1 Nb2 C103

  • 0.05mm Thickness Bright Surface Niobium Foil RO4200 Nb1 Nb2 C103
  • 0.05mm Thickness Bright Surface Niobium Foil RO4200 Nb1 Nb2 C103
  • 0.05mm Thickness Bright Surface Niobium Foil RO4200 Nb1 Nb2 C103
  • 0.05mm Thickness Bright Surface Niobium Foil RO4200 Nb1 Nb2 C103
  • 0.05mm Thickness Bright Surface Niobium Foil RO4200 Nb1 Nb2 C103
Place of Origin China
Brand Name PRM
Certification ISO9001
Model Number custom
Minimum Order Quantity 0.5kg
Price Negotiate
Packaging Details Plywood case
Delivery Time 7~10days
Payment Terms T/T
Supply Ability 2000kgs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Niobium Foil Material Niobium And Niobium Alloy
Grade RO4200,RO4210,Nb1,Nb2,Nb-Zr,C103 Thickness 0.02mm
Width Max 300mm Surface Bright
Appearance No Pitting, Dents, Scratches, Roller Marks And Other Defects Standard ASTM B393
High Light

Bright Niobium Foil Strip

,

0.05mm Thickness Niobium Foil

,

Bright Niobium Foil
Leave a Message
Product Description

RO4200 RO4210 Nb-Zr Niobium Foil



1. Description of RO4200 Nb-Zr Niobium Foil:



Name: Niobium foil

Thickness: min.0.02mm

Width: max.300mm

Grade:RO4200,RO4210,Nb1,Nb2,Nb-Zr,C103

Surface: Bright

Standard: ASTM B393

Delivery status: Annealed

Appearance:No pitting, dents, scratches, roller marks and other defects.





Chemical Composition:



Grade RO4200 RO4210 Nb1 Nb2 NbZr1 C-103

Content

(wt%)

 Zr 0.02 0.02 0.02 0.02 0.8~1.2 0.7
Ti 0.02 0.03 0.002 0.005 0.02 0.7~1.3
C 0.01 0.01 0.01 0.02 0.01 0.015
N 0.01 0.01 0.015 0.05 0.01 0.015
O 0.015 0.025 0.015 0.025 0.015 0.023
H 0.0015 0.0015 0.001 0.005 0.0015 0.002
Ta 0.1 0.3 0.10 0.25 0.10 0.5
Fe 0.005 0.01 0.005 0.03 0.005 -
Si 0.005 0.005 0.005 0.02 0.005 -
W 0.03 0.05 0.03 0.05 0.03 0.5
Ni 0.005 0.005 0.005 0.01 0.005 -
Mo 0.01 0.02 0.010 0.05 0.01 -
Cr 0.002 - 0.002 0.01 0.002 -
Hf 0.02 0.02 - - - 9.0~11.0
Nb Remain Remain Remain Remain Remain Remain



0.05mm Thickness Bright Surface Niobium Foil RO4200 Nb1 Nb2 C103 00.05mm Thickness Bright Surface Niobium Foil RO4200 Nb1 Nb2 C103 1



2. Tolerance of Niobium Foil:





Thickness

(mm)

 Thickness Tolerance (mm)

Width

(mm)

Width Tolerance

(mm)

Length

(mm)

Length Tolerance

(mm)
ⅠGrade Ⅱ Grade
<0.1 ±0.005 ±0.008 50-150 ±2.0 100-20000 ±2.0
0.1~0.2 ±0.015 ±0.02 50~240 ±2.0 100~20000 ±2.0
＞0.2-0.3 ±0.020 ±0.03 50-650 ±2.0 100-6000 ±2.0
＞0.3-0.5 ±0.030 ±0.04 50-650 ±2.0 100-6000 ±2.0
＞0.5-0.8 ±0.040 ±0.06 50-650 ±2.0 50-6000 ±2.0
＞0.8-1.0 ±0.060 ±0.08 50-650 ±2.0 50-6000 ±2.0
＞1.0-1.5 ±0.080 ±0.10 50-650 ±3.0 50-6000 ±4.0
＞1.5-2.0 ±0.120 ±0.14 50-650 ±3.0 50-4000 ±4.0
＞2.0-3.0 ±0.160 ±0.18 50-650 ±5.0 50-4000 ±5.0
＞3.0-4.0 ±0.180 ±0.20 50-650 ±5.0 50-3000 ±5.0
＞4.0-6.0 ±0.200 ±0.24 50-650 ±5.0 50-2000 ±5.0



3. Processing technology of Niobium Foil:



0.05mm Thickness Bright Surface Niobium Foil RO4200 Nb1 Nb2 C103 2





4.Application of Niobium Foil:



Niobium foil is widely used in aerospace, electronics, chemical industry, medical equipment and other fields.

In the field of aerospace, niobium foil is often used in the manufacture of burners, turbine blades, heat conduction fins, etc.



In the field of electronics, niobium foil can be used to make capacitors, resistors, electrodes, etc.

In the chemical industry, niobium foil is often used in the manufacture of corrosion-resistant equipment, reactors, etc.



In the field of medical devices, niobium foil is often used in the manufacture of implantable medical devices, artificial joints, etc.



Company Profile:



Shaanxi Peakrise Metal Co., Ltd. is an rich experienced tungsten,molybdenum, tantalum, niobium, titanium,zirconium,nickel non-ferrous metal production enterprise,main products include tungsten-copper alloy, molybdenum-copper alloy, tungsten-molybdenum alloy, high specific gravity tungsten alloy, tantalum alloy,niobium alloy,titanium alloy and other more than 100 kinds of products.we have more than 13 years of rich production experience and export experience, and solve related import and export problems for customers. , one-stop solution to all difficulties.Products are exported to Taiwan, Ukraine, South Korea, the United States, Australia, Germany, Iran and other countries, and have established long-term good cooperative relations with customers. Our products are highly recognized and evaluated by customers.
