Nb1 Nb2 RO4200 High Purity Niobium Sheet 3.0mm 5.0mm

  • Nb1 Nb2 RO4200 High Purity Niobium Sheet 3.0mm 5.0mm
  • Nb1 Nb2 RO4200 High Purity Niobium Sheet 3.0mm 5.0mm
  • Nb1 Nb2 RO4200 High Purity Niobium Sheet 3.0mm 5.0mm
  • Nb1 Nb2 RO4200 High Purity Niobium Sheet 3.0mm 5.0mm
Place of Origin China
Brand Name PRM
Certification ISO9001
Model Number Custom
Minimum Order Quantity 0.5kg
Price Negotiate
Packaging Details Plywood case
Delivery Time 5~7days
Payment Terms T/T
Supply Ability 500kgs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Niobium Sheet Purity 99.95%,99.99%
Grade Nb1,Nb2,RO4200,RO4210 Standard ASTM B393
Thickness ≥0.1mm Width ≤1000mm
Length ≤8000mm Status Annealed
High Light

Nb2 Niobium Plate

,

High Purity Niobium Sheet

,

Niobium Sheet 3.0mm
Leave a Message
Product Description

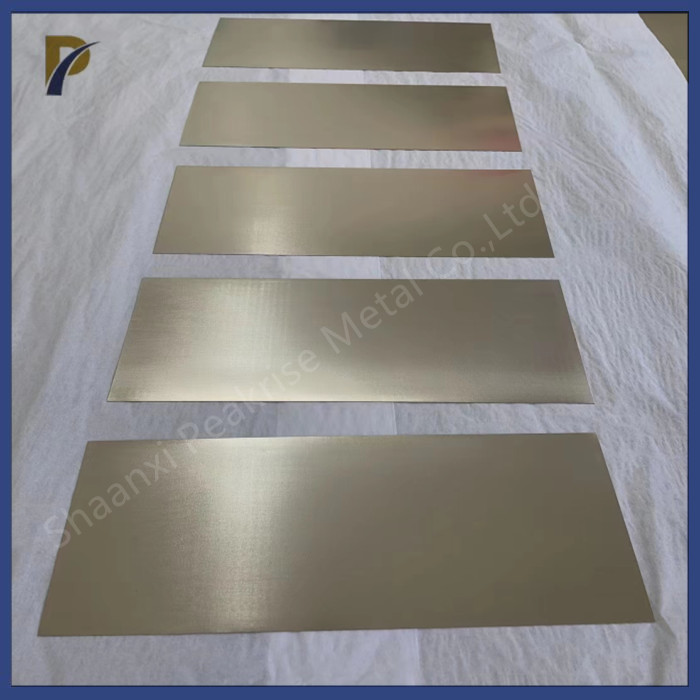

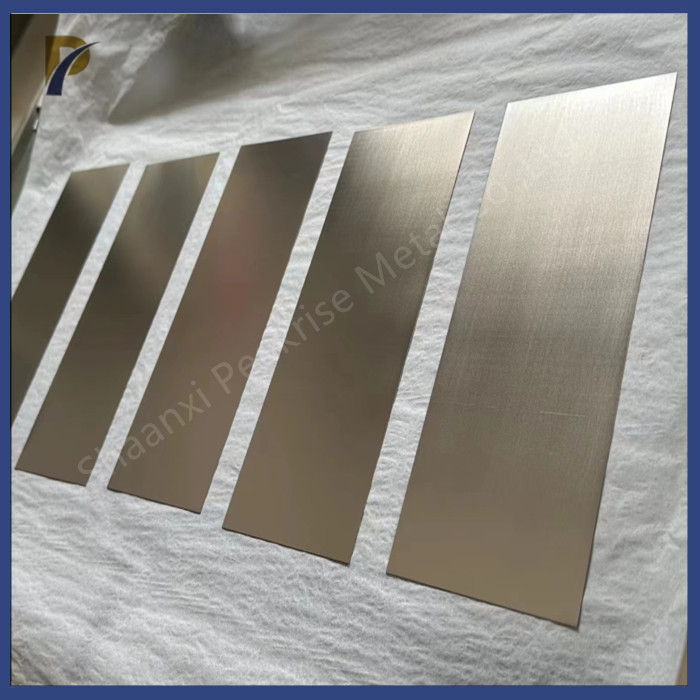

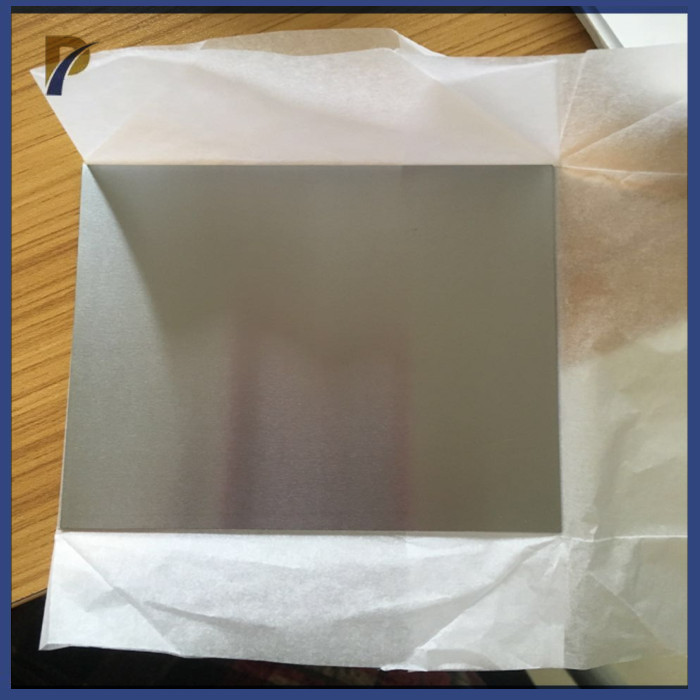

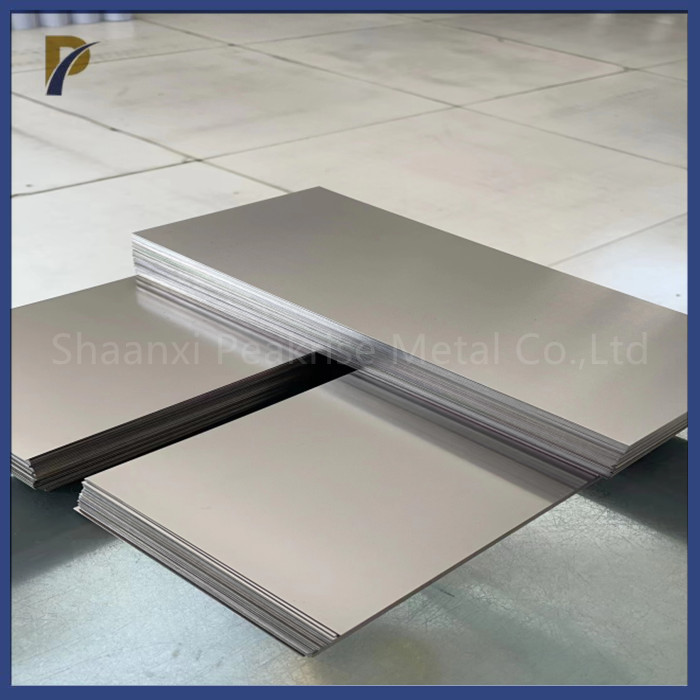

Nb1 Nb2 RO4200 High Purity Niobium Sheet



1. Description Of Nb1 Nb2 Niobium Sheet:



Name: Niobium sheet

Purity: 99.95%,99.99%

Grade: Nb1,Nb2,RO4200,RO4210

Standard: ASTM B393

Thickness: ≥ 0.1mm

Width: ≤ 1000mm

Density: 8.57g/cm3

Dlivery status: Annealed



Nb1 Nb2 RO4200 High Purity Niobium Sheet 3.0mm 5.0mm 0Nb1 Nb2 RO4200 High Purity Niobium Sheet 3.0mm 5.0mm 1



2. Chemical Content of Nb1 Nb2 Niobium Sheet:





Grade

Nb content

(wt%)

Impurity content  ≤/%,

Fe

Ni

W

Si

Mo

Cr

Ti

Ta

O

C

H

N

Nb1

Remain

0.005

0.005

0.03

0.005

0.01

0.002

0.002

0.1

0.015

0.01

0.001

0.015

Nb2

Remain

0.03

0.01

0.05

0.02

0.05

0.01

0.005

0.25

0.025

0.02

0.005

0.05
RO4200 Remain 0.005 0.005 0.03 0.005 0.01 0.002 0.02 0.1 0.015 0.01 0.0015 0.01



3. Tolerance of Nb1 Nb2 Niobium Sheet:





Thickness

(mm)

 Thickness Tolerance (mm)

Width

(mm)

Width Tolerance

(mm)

Length

(mm)

Length Tolerance

(mm)
ⅠGrade Ⅱ Grade
0.15-0.2 ±0.015 ±0.02 50-300 ±2.0 100-1000 ±2.0
＞0.2-0.3 ±0.020 ±0.03 50-300 ±1.0 100-1000 ±2.0
＞0.3-0.5 ±0.030 ±0.04 50-300 ±1.0 100-1000 ±2.0
＞0.5-0.8 ±0.040 ±0.06 50-200 ±1.0 50-700 ±2.0
＞0.8-1.0 ±0.060 ±0.08 50-200 ±1.0 50-700 ±2.0
＞1.0-1.5 ±0.080 ±0.10 50-200 ±2.0 50-700 ±2.0
＞1.5-2.0 ±0.120 ±0.14 50-200 ±2.0 50-700 ±2.0
＞2.0-3.0 ±0.160 ±0.18 50-200 ±2.0 50-600 ±2.0
＞3.0-4.0 ±0.180 ±0.20 50-200 ±1.0 50-500 ±1.0
＞4.0-6.0 ±0.200 ±0.24 50-200 ±1.0 50-300 ±1.0






4. Mechanical properties of Nb1 Nb2 Niobium Sheet:



Grade Status Thickness Tensile Strength Elongation
Nb1/Nb2 Annealed 0.1-0.25 ≥196 ≥25
Annealed ≥0.25-0.5 ≥196 ≥25
Annealed ≥0.5 ≥196 ≥25



5. Application of Nb1 Nb2 Niobium Sheet:



Superconducting Materials: Niobium sheets are used in the production of superconducting wires for magnets in medical equipment (MRI machines) and particle accelerators due to their superconducting properties.



Aerospace Industry: Niobium's heat resistance makes it useful in aerospace applications, including jet engines and rocket nozzles.





Chemical Processing: Niobium's corrosion resistance finds applications in chemical processing equipment where resistance to strong acids or other corrosive substances is required.



Electronics: It's used in capacitors, especially in high-frequency applications, due to its ability to maintain its capacitance values across a wide temperature range.



Medical Devices: Niobium's biocompatibility makes it suitable for medical implants, particularly in situations where the material must interact with the human body without causing adverse reactions.





Company Profile:



Shaanxi Peakrise Metal Co., Ltd. is an rich experienced tungsten,molybdenum, tantalum, niobium, titanium,zirconium,nickel non-ferrous metal production enterprise,main products include tungsten-copper alloy, molybdenum-copper alloy, tungsten-molybdenum alloy, high specific gravity tungsten alloy, tantalum alloy,niobium alloy,titanium alloy and other more than 100 kinds of products.we have more than 13 years of rich production experience and export experience, and solve related import and export problems for customers. , one-stop solution to all difficulties.Products are exported to Taiwan, Ukraine, South Korea, the United States, Australia, Germany, Iran and other countries, and have established long-term good cooperative relations with customers. Our products are highly recognized and evaluated by customers.



Nb1 Nb2 RO4200 High Purity Niobium Sheet 3.0mm 5.0mm 2






Please click below button for learn more our products.



Nb1 Nb2 RO4200 High Purity Niobium Sheet 3.0mm 5.0mm 3



Nb1 Nb2 RO4200 High Purity Niobium Sheet 3.0mm 5.0mm 4
