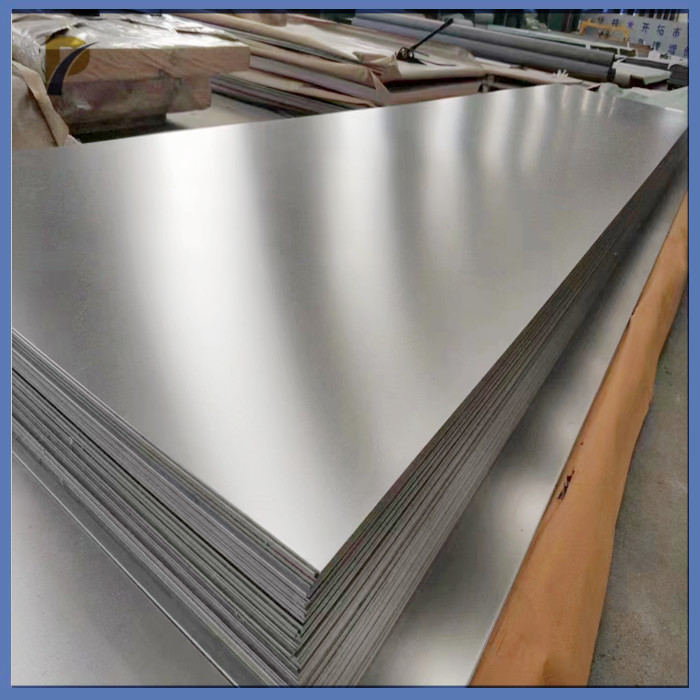

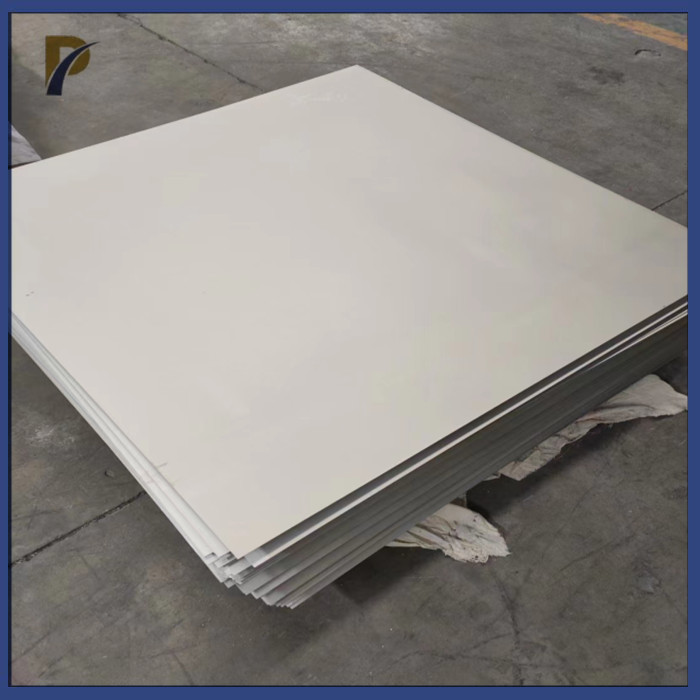

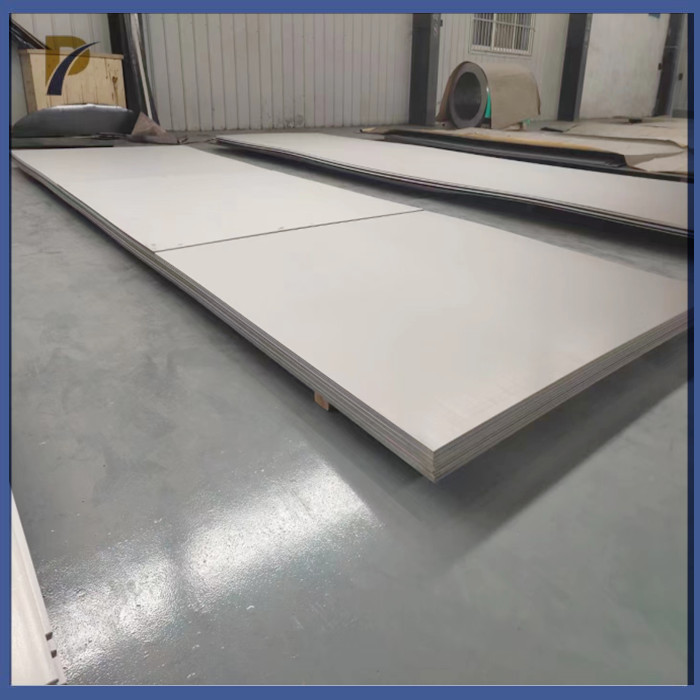

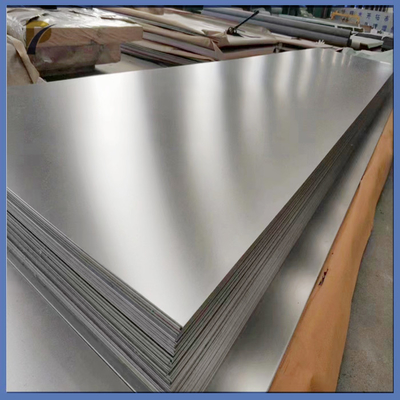

Gr2 Gr1 Gr5 Hot / Cold Rolling Titanium Plate 0.5 - 100mm Thickness
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Titanium Plate | Grade | Gr1 Gr2 Gr5 Gr7 Gr9 Gr11 Gr23,TA1 TA2 TA0,BT1-1 BT1-0 |
|---|---|---|---|
| Thickness | 0.5~100mm | Width | ≤ 2500mm |
| Length | ≤ 12meters | Standard | ASTM B265, ASME SB265,ASTM F136/67, AMS 4911,AMS 4905, AMS 4907, MIL-T-9046 |
| Process Method | Hot Rolling, Cold Rolling | Surface | Bright, Sandblasting |
| High Light | Cold Rolling Titanium Sheet,Gr5 Titanium Plate,0.5mm Thickness Titanium Plate |
||
Product Description
China Titanium Gr1 Gr2 Gr5 Titanium Plate
1. Information Of Titanium Plate:
Name: Titanium Plate
Grade: Gr1 Gr2 Gr5 Gr7 Gr9 Gr11 Gr23,TA1 TA2 TA0,BT1-1 BT1-0
Thickness: 0.5~100mm
Width: ≤ 2500mm
Length: ≤ 12meters
Usually Standard size: 1000*2000mm, 1200*2000mm Or can process according to customer's request.
Standard: ASTM B265, ASME SB265,ASTM F136/67, AMS 4911,AMS 4905, AMS 4907, MIL-T-9046
Processing Method: hot rolling, cold rolling
Surface: bright, sandblasting
2. Chemical Content of Gr2 Gr5 Gr9 Titanium Plate:
| N | C | H | Fe | O | Al | V | Pa | Mo | Ni | Ti | |
| Gr 1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr 2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr 5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr 7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr 9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
3. Mechanical Properties of Gr2 Gr5 Gr9 Titanium Plate:
| Grade | Mechanical Properties (>%) | ||||||
|
Tensile Strengh (min) |
Yield Strengh (0.2% offset) |
Elongation (min %) |
|||||
| Ksi | Mpa | Min | Max | ||||
| Ksi | Mpa | Ksi | Mpa | ||||
| Gr1 | 35 | 240 | 20 | 170 | 45 | 310 | 240 |
| Gr2 | 50 | 345 | 40 | 275 | 65 | 450 | 20 |
| Gr3 | 65 | 450 | 55 | 380 | 80 | 550 | 18 |
| Gr4 | 80 | 550 | 70 | 483 | 95 | 650 | 15 |
| Gr5 | 130 | 895 | 120 | 828 | - | - | 10c |
| Gr7 | 50 | 345 | 40 | 275 | 65 | 450 | 20 |
| Gr9 | 90 | 620 | 70 | 483 | - | - | 15D |
| Gr12 | 70 | 483 | 50 | 345 | - | - | 180 |
4. Common use of titanium sheet/plate:
Aerospace industry: Titanium plates are widely used in the aerospace field. It can be used to manufacture aircraft structures, engine components, gas turbine blades, spacecraft casings, and more. The high strength, light weight and corrosion resistance of titanium plates help improve aircraft performance and fuel efficiency.
Chemical industry: Due to its excellent corrosion resistance, titanium plate is widely used in the chemical industry. Titanium plates can be used to manufacture chemical containers, reactors, heat exchangers, storage tanks, etc. to resist the erosion of corrosive media.
Marine Industry: Titanium plates are widely used in marine environments due to their extremely high resistance to corrosion from seawater and salt water. It can be used to manufacture offshore platforms, marine pipelines, ship components, seawater treatment equipment, etc.
Medical devices: Titanium plates have good compatibility with human tissue and will not cause allergic reactions, so they are widely used in the manufacture of medical devices. It can be used to make artificial joints, bone plates, dental implants and more.
Oil and gas industry: Titanium plates are used in the oil and gas industry to manufacture subsea oil well equipment, oil and gas storage tanks, pipelines, etc. Its corrosion resistance enables titanium plates to withstand harsh working environments and corrosive media.
Automotive Industry: Titanium sheets are used in the automotive industry to make engine covers, exhaust system components, chassis cover panels, etc. Its lightweight and high-strength properties help reduce vehicle weight and improve fuel efficiency and performance.
In addition to the above application fields, titanium plate is also widely used in shipbuilding, food processing, electronic equipment, etc. Its excellent performance and versatility make it an important material in many industries.
