ASME B16.9 Titanium Tee Equal Diameter Tee TA1 TA2 TA10 TC4 Gr1 Gr2 Gr5
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Titanium Tee | Grade | TA1 TA2 TA10 TC4 Gr1 Gr2 Gr5 |
|---|---|---|---|
| Type | Equal Diameter Tee, Reducing Tee | Standard | ASME B16.9,SH3408,SH3409-96,SH3410-96,HG/T21635,DL/T 695,SY/T 0510,DIN 2615 |
| Size | According To Customer | Surface | Bright, Pickling, Sand Blasting |
| High Light | TA10 Titanium Tee,ASME B16.9 Titanium Tee,Bright Titanium Equal Tee |
||
Product Description

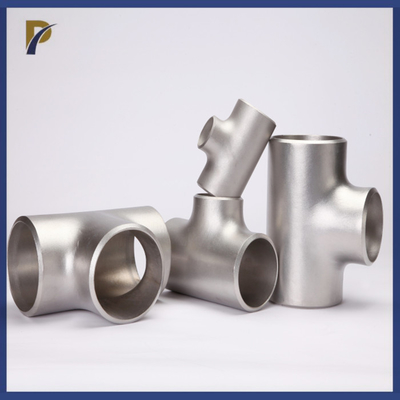

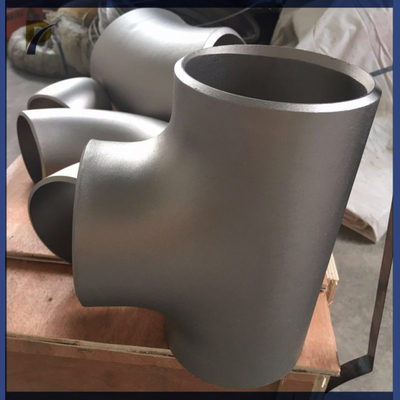

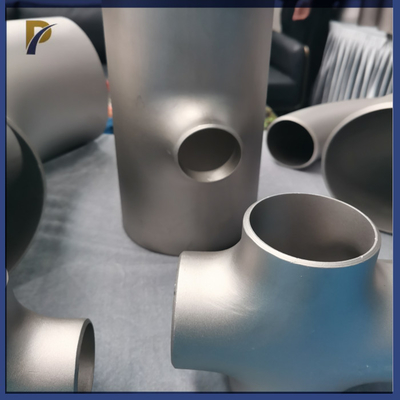

Titanium Tee
1. Information Of Titanium Tee/Equal Diameter Tee.
Titanium tee is also called titanium pipe fitting tee or titanium tee fitting, titanium tee joint, etc. It is mainly used to change the direction of fluid and is used at branch pipes of main pipelines. Can be classified according to pipe diameter.
Titanium tee type:
Same diameter titanium tee
Reducing diameter titanium tee
Titanium positive tee
Titanium inclined tee
Titanium Threaded Tee
Titanium ferrule tee
Titanium socket tee
Standard:ASME B16.9,SH3408,SH3409-96,SH3410-96,HG/T21635,DL/T 695,SY/T 0510,DIN 2615
2. Size Of Titanium Tee/Equal Diameter Tee.
| Nominal diameter | Outside diameter | Center to End | |||||
| D1 | D2 | ||||||
| DN | NPS | Series A | Series B | Series A | Series B | C | M |
| 15×15×15 | 1/2×1/2×1/2 | 21.3 | 18 | 21.3 | 18 | 25 | 25 |
| 15×15×10 | 1/2×1/2×3/8 | 21.3 | 18 | 17.3 | 14 | 25 | 25 |
| 15×15×8 | 1/2×1/2×1/4 | 21.3 | 18 | 13.7 | 10 | 25 | 25 |
| 20×20×20 | 3/4×3/4×3/4 | 26.9 | 25 | 26.9 | 25 | 29 | 29 |
| 20×20×15 | 3/4×3/4×1/2 | 26.9 | 25 | 21.3 | 18 | 29 | 29 |
| 20×20×10 | 3/4×3/4×3/8 | 26.9 | 25 | 17.3 | 14 | 29 | 29 |
| 25×25×25 | 1×1×1 | 33.7 | 32 | 33.7 | 32 | 38 | 38 |
| 25×25×20 | 1×1×3/4 | 33.7 | 32 | 26.9 | 25 | 38 | 38 |
| 25×25×15 | 1×1×1/2 | 33.7 | 32 | 21.3 | 18 | 38 | 38 |
| 32×32×32 | 1.1/4×1.1/4×1.1/4 | 42.4 | 38 | 42.4 | 38 | 48 | 48 |
| 32×32×25 | 1.1/4×1.1/4×1 | 42.4 | 38 | 33.7 | 32 | 48 | 48 |
| 32×32×20 | 1.1/4×1.1/4×3/4 | 42.4 | 38 | 26.9 | 25 | 48 | 48 |
| 32×32×15 | 1.1/4×1.1/4×1/2 | 42.4 | 38 | 21.3 | 18 | 48 | 48 |
Other sizes or drawing,pls contact with us online or email.
3. Application Of Titanium Tee/Equal Diameter Tee.
Titanium tees are widely used in chemical, food, medicine, aerospace, shipbuilding, sewage treatment and other industries due to their corrosion resistance, high temperature resistance, non-magnetic conductivity, non-toxic and harmless, and strong stability.
