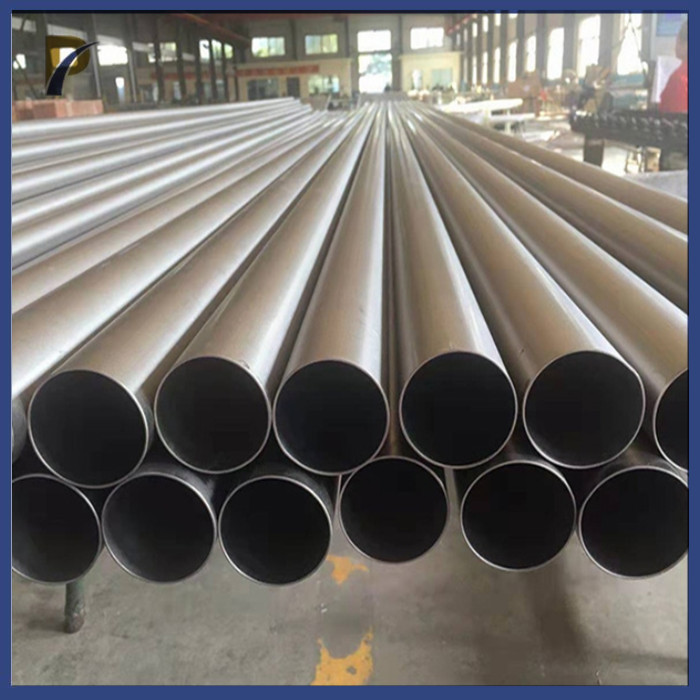

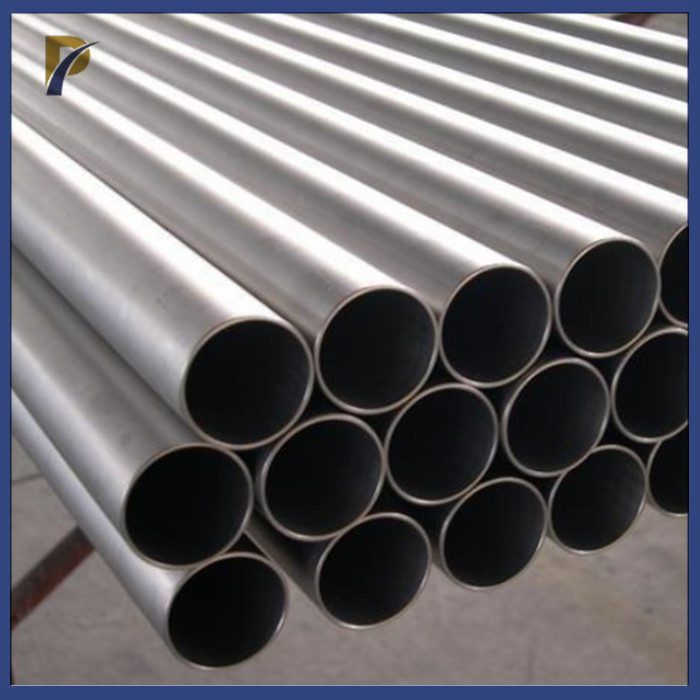

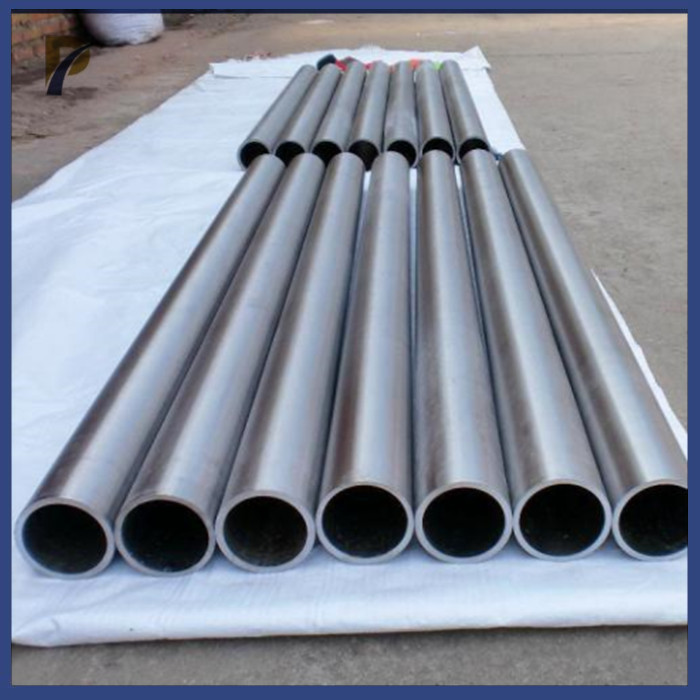

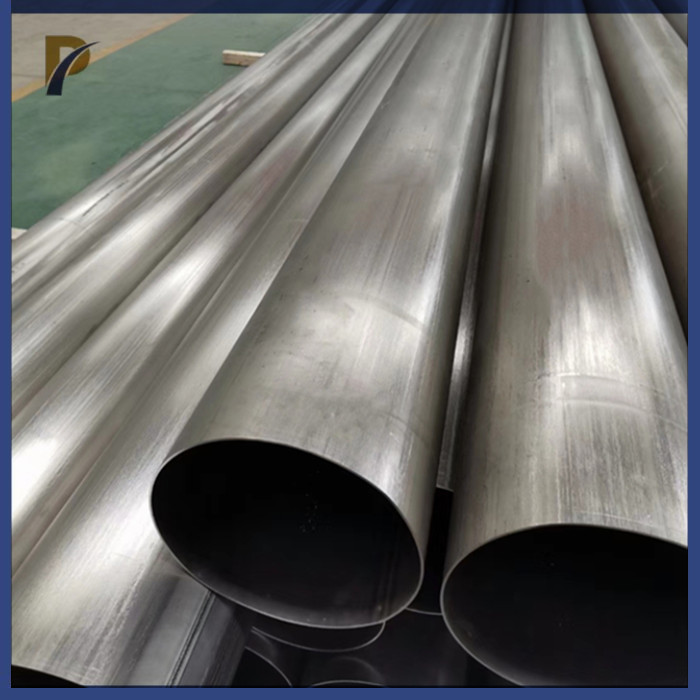

ASTM B338 Gr 2 Titanium Tube Pickled Surface Treatment Titanium Seamless Pipe
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Titanium Sealmess Pipe | Material | Titanium & Titanium Alloy |
|---|---|---|---|
| Grade | Gr1,Gr2,Gr5,Gr7,Gr9,Gr11,Gr23,TA0,TA1,TA2,TC4,TA10,TA18 | Outdiameter | φ5~60.3mm |
| Wall Thickness | 0.5~5.0mm | Standard | ASTM B337,ASTM B338,ASTM B861,ASTM B862,JIS H4631 Etc. |
| High Light | Gr2 Titanium Tube,Pickled Titanium Seamless Pipe,ASTM B338 Titanium Tube |
||
Product Description
ASTM B B338 Gr2 Titanium Seamless Pipe
1. Information Of ASTM B338 Gr2 Titanium Seamless Pipe:
Seamless titanium pipes are weld-free pipes made of titanium. Among titanium materials, Gr1 ,Gr2 is the most popular.
| Product Description: | seamless titanium pipe |  |
| Standard | ASTM B338 | |
| Material | Gr1,Gr2,Gr5,Gr7,Gr9 etc. | |
| Density | 4.50 g/cm³ | |
| Surface treatment | Pickled | |
| Outer Diameter Range (mm) | φ5~60.3 | |
| Wall Thickness (mm) | 0.5~5.0 |
2. Tolerance of ASTM B338 Gr2 Titanium Seamless Pipe:
|
Outer diameter, mm
|
Tolerances ( mm)
|
Wall thickness tolerance (%) |
|
3.2≤OD≤38
|
+0.397/-0.794
|
±12.5 |
|
38＜OD≤102
|
+0.794/-0.794
|
±12.5 |
|
102＜OD≤203
|
+1.588/-0.794
|
±12.5 |
|
203＜OD≤432
|
+2.382/-0.794
|
±12.5 |
3.Chemical Content of ASTM B338 Gr2 Titanium Seamless Pipe:
| Element | Composition,% | |||||||||
| Grade1 | Grade2 | Grade3 | Grade4 | Grade5 | Grade6 | Grade7 | Grade9 | Grade11 | Grade12 | |
| N max | 0.03 | 0.03 | 0.05 | 0.05 | 0.05 | 0.03 | 0.03 | 0.03 | 0.03 | 0.03 |
| C max | 0.08 | 0.08 | 0.08 | 0.08 | 0.08 | 0.08 | 0.08 | 0.08 | 0.08 | 0.08 |
| H max | 0.05 | 0.015 | 0.015 | 0.015 | 0.015 | 0.015 | 0.015 | 0.015 | 0.015 | 0.015 |
| Fe max | 0.2 | 0.3 | 0.3 | 0.5 | 0.4 | 0.3 | 0.5 | 0.25 | 0.2 | 0.3 |
| O max | 0.18 | 0.25 | 0.35 | 0.4 | 0.2 | 0.2 | 0.25 | 0.15 | 0.18 | 0.25 |
| Al | 5.5-6.75 | 4.0-4.6 | 2.5-3.5 | |||||||
| V | 3.5-4.5 | 2.0-3.0 | ||||||||
Titanium tubes are supplied in straight or U-bent tubes. Titanium spiral tubes and titanium capillary tubes are available upon request. Length: 4000 mm; 6000 mm; 12000 mm; Available in a variety of lengths and chopped cuts. Maximum development length: 20 m.
Inspection & Testing: Ultrasonic Testing (UT), Electrical Non-Destructive Testing (ET), Flaring Testing, Hydrostatic Testing, Flattening Testing, Visual Surface Testing, Dimensional Testing, Tensile Performance Testing, and Chemical Element Analysis.
