9.8cm3 Molybdenum Electrode Bar For Fiberglass Furnace Molybdenum Rod Molybdenum Electrode For Electric Melting Furnace
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Molybdenum Electrode Bar For Fiberglass Furnace | Material | Molybdenum And Molybdenum Alloy |
|---|---|---|---|
| Density | ≥9.8cm3 | Surface | Bright,polished,C.C |
| Size | 14~20*14~20mm | Length | ≤ 1000mm |
| High Light | Molybdenum Electrode,Molybdenum Electrode Bar,custom Molybdenum Bar |
||
Product Description

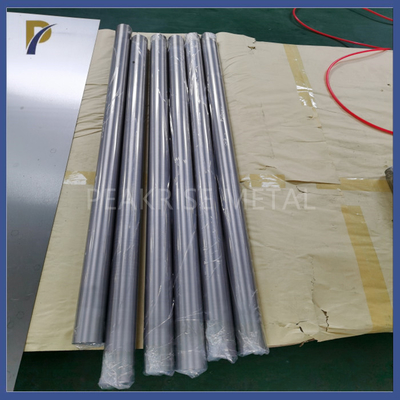

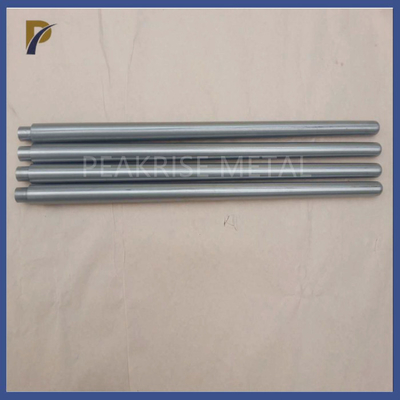

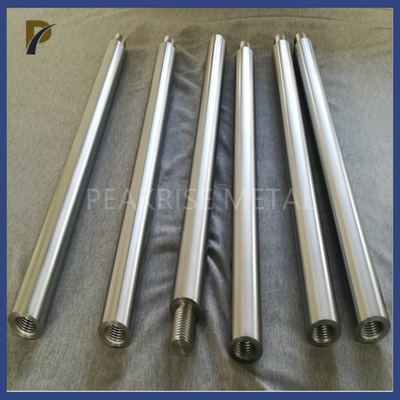

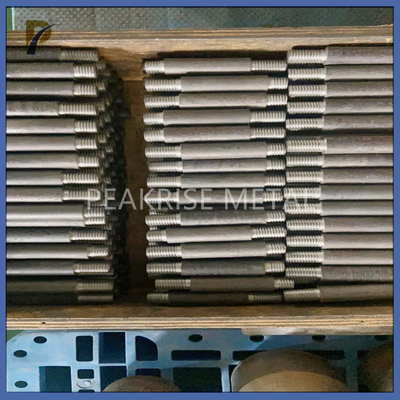

Molybdenum Electrode Bar For Fiberglass Furnace
1. Description of Molybdenum Electrode Bar For Fiberglass Furnace:
Molybdenum electrode bar has a high melting point, good thermal conductivity and low thermal expansion properties. At high temperatures, it is anti-oxidation and has high strength so in many areas are widely used. Its production processing steps are as follows: molding, sintering, drape forging and machining.
2. Physical property of Molybdenum Electrode Bar For Fiberglass Furnace:
Molybdenum electrode bars appearance: silver gray metallic luster and no off side angle, delamination, cracks or other defects, according to user needs can be bent and straightened.
Density:≥9.8cm3
Purity: Mo≥99.953%
Specification: (14-20)×(14-20)×L≤1000mm
Uses: mainly used for electric melting furnaces or electric boosting glass furnaces and glass furnace heating devices.
3. Classification of Molybdenum Electrode Bar For Fiberglass Furnace:
Molybdenum electrode bar can be divided according to material: molybdenum electrode bar, high temperature electrode bar, forging electrode bar, forging electrode bar and TZM electrode bar, their content and appearance characteristics are as follows:
Molybdenum electrode bar: molybdenum content greater than 99.95%.
Remove the impurities from the high temperature electrode bar of lanthanum (contains 0.4–1.2% of it), and the remaining material is molybdenum.
TZM electrode bar: Mo-0.5, Ti-0.07~0.12, Zr-0.01~0.04
Sub-forging electrode bar: slight surface oxide film, hammer marks
polish electrode bar: surface showing metallic luster, no oxidation
4. Molybdenum electrode bar for fiberglass furnace surface oxide removal methods:
Molybdenum Electrode bar has a characteristic which is easily oxidized, if necessary to remove heavy oxides can take acid treatment, such as fluorine acid nitric acid or hydrochloric acid and other. But during the operation pay attention to safety and taking certain safety measures. Remove light oxides can add an abrasive cleaning agent and wipe with a soft cloth or sponge, and finally wash with warm water, but cleaned molybdenum electrode bar will lose metallic luster.
5. Application of Molybdenum Electrode Bar For Fiberglass Furnace:
Electrode bar can apply in produce vacuum devices and electric light source parts, processing ion implantation parts, high temperature heating element, temperature structural parts, in glass and refractory fiber industry as a furnace electrode and in earth industry as electrode.
