High Purity 75mm Molybdenum Electrode Rod For Fused Glass 32mm
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | High Purity Diameter 75mm Molybdenum Electrode Rod For Fused Glass Manufacturing | Material | Pure Molybdenum |
|---|---|---|---|
| Purity | 99.97% | Surface | Bright |
| Color | Metallic Silver | Diameter | 32mm,50mm,63mm,75mm,80mm Etc. |
| Length | <2500mm | Standard | ASTM B387 |
| High Light | 75mm Molybdenum Electrode rod,High Purity Molybdenum Electrode rod,32mm Molybdenum Electrode rod |
||
Product Description

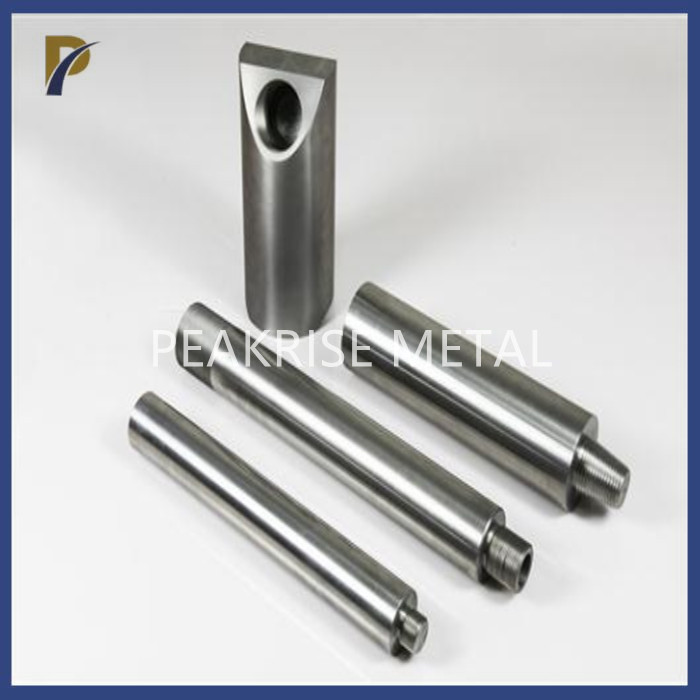

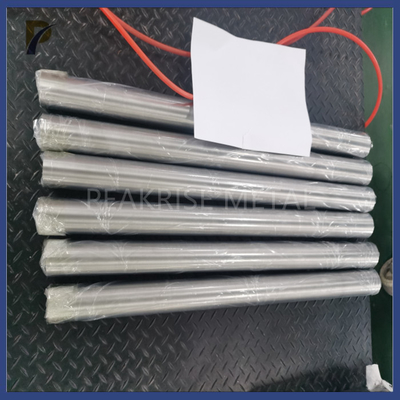

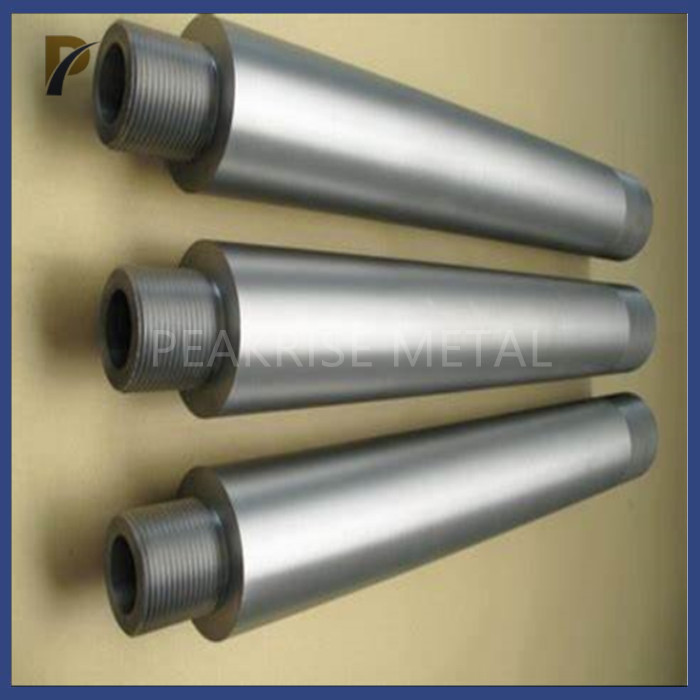

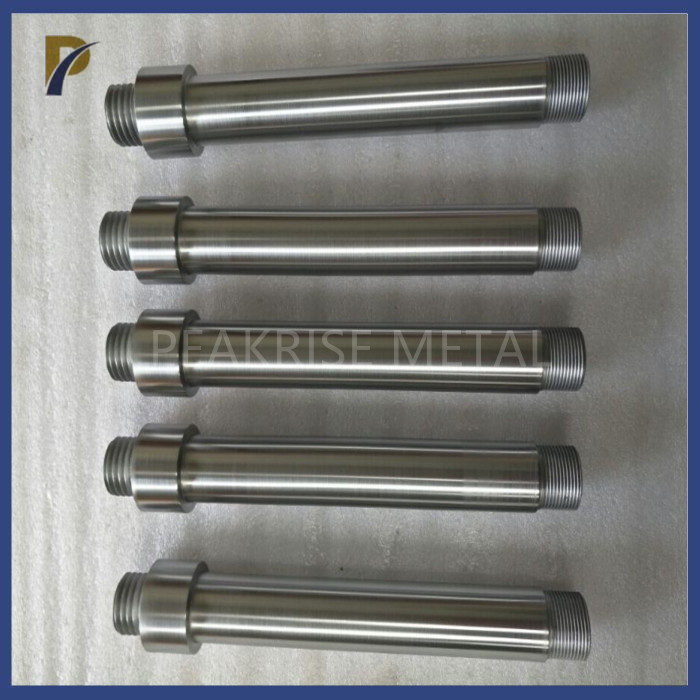

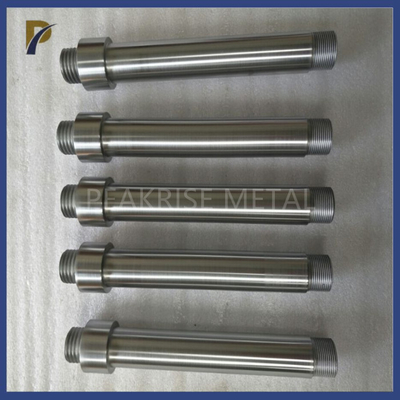

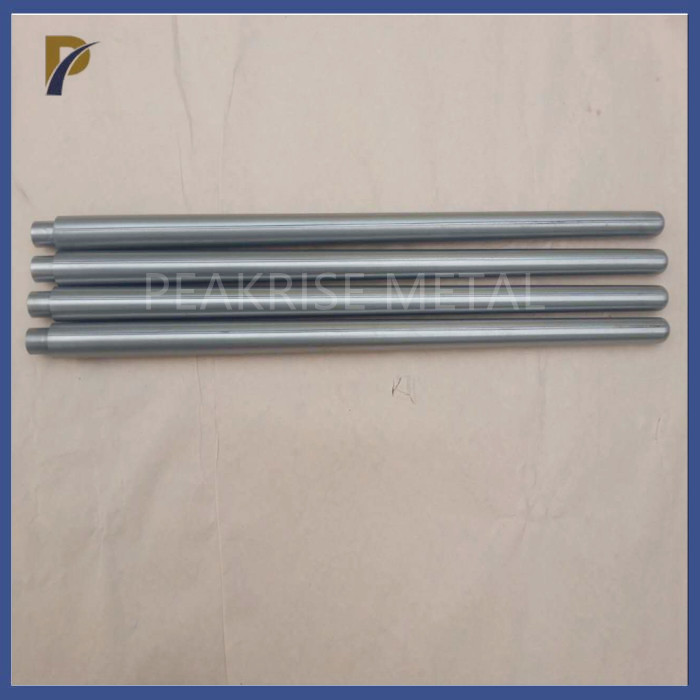

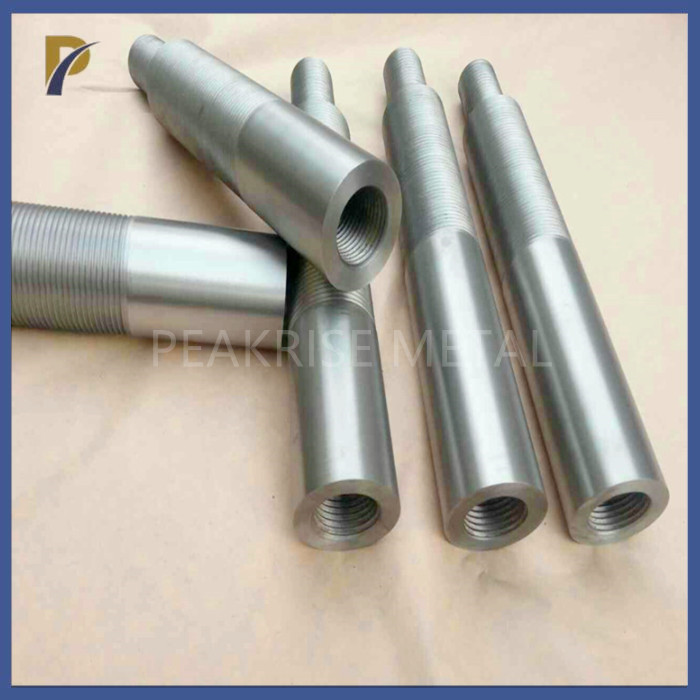

High Purity Diameter 75mm Molybdenum Electrode Rod For Fused Glass Manufacturing
1. Information Of Dia.75mm Molybdenum Electrode Rod For Fused Glass Manufacturing:
Molybdenum electrode is currently the most widely used electrofusion electrode in the glass electrofusion industry. It is mostly used in the manufacture of electrofused glass, glass welding, optical processing, etc.
The molybdenum electrode is mainly composed of two parts: the electrode rod and the electrode head (material head). The electrode rod is made of molybdenum powder through a complex deformation process. Mainly composed of molybdenum powder and surfactant, the electrode rod can resist high temperature and high pressure, and has balanced wear resistance. The electrode head (material head) adopts heat-resistant medium (for example, heat transfer oil, water), and the heat transfer medium can transmit the heat of the molten material of the melting sample in time, so that the product can be welded correctly. In addition, the electrode tip has air valves, which can quickly control the flow of molten material for better welding performance.
2. Size Of Dia.75mm Molybdenum Electrode Rod For Fused Glass Manufacturing:
| Molybdenum Melting Glass Molybdenum Electrode | |||||
| Dia [mm] |
tolerance [mm] |
length [mm] |
Surface | Straightness [per m] |
Approx weight [kg/m] |
| 4.00 | +/- 0.020 | 1000 - 2000 | polished | <2.0 | 0.128 |
| 10.00 | +/- 0.020 | 1000 - 2000 | polished | <2.0 | 0.801 |
| 20.00 | +/- 0.020 | 2000 | polished | <2.5 | 3.204 |
| 25.00 | +/- 0.040 | 2000 | polished | <2.5 | 5.007 |
| 30.00 | +/- 0.300 | 2000 | Polished | <1.5 | 7.210 |
| 40.00 | +/- 0.300 | 2000 | Polished | <1.5 | 12.818 |
| 50.00 | +/- 0.400 | 2000 | Polished | <1.5 | 20.654 |
| 60.00 | +/- 0.400 | 2000 | Polished | <1.5 | 28.840 |
| 63.50 | +/- 0.400 | 2000 | Polished | <1.5 | 32.303 |
| 70.00 | +/- 0.400 | 2000 | Polished | <1.5 | 39.254 |
| 80.00 | +/- 1.000 | 2000 | Polished | <2.5 | 51.271 |
| 90.00 | +/- 1.000 | 2000 | Polished | <2.5 | 64.890 |
| 100.00 | +/- 1.000 | 2000 | Polished | <2.5 | 80.111 |
| 120.00 | +/- 2.000 | 2000 | Polished | <2.5 | 115.359 |
3.Performance Of Dia.75mm Molybdenum Electrode Rod For Fused Glass Manufacturing:
The performance factor of the molybdenum electrode includes the structure of the electrode first, and the continuous performance of the electrode can be ensured without any defects in the structure. In addition, the material is also very important, choosing the right material can ensure low melting loss and high heat resistance. Heat resistance refers to the electrode's ability to resist large amounts of heat, prevent cracks or discoloration during melting, and prevent the release of toxic substances into the surrounding environment.
4. Quality Assurance Of Dia.75mm Molybdenum Electrode Rod For Fused Glass Manufacturing:
We not only use good molybdenum powder, but also do 2~3 times of non-destructive testing in the whole production process to ensure that there is no crack inside the molybdenum rod.
Be sure to find professional people to solve professional problems. For molybdenum electrodes, find Peakrisemetal, quality assurance, good reputation, excellent after-sales service, you will not regret choosing Peakrisemetal.
