La2O3 Molybdenum Tungsten Alloy MoLa , Molybdenum Lanthanum Alloy Plate
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | La2O3 MoLa Molybdenum Tungsten Metal Alloys Plate 10mm Thickness | Material | Molybdenum Lanthanum Alloy |
|---|---|---|---|
| Grade | MoLa | La Content | 0.5%~5.0% |
| Mo Content | Remain | Thickness | 0.1mm Min. |
| Width | 650mm Max. | Length | <2000mm |
| High Light | La2O3 Molybdenum Tungsten Alloy,Molybdenum Tungsten Alloy MoLa |
||
Product Description

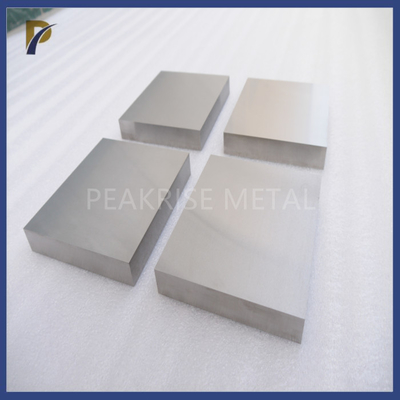

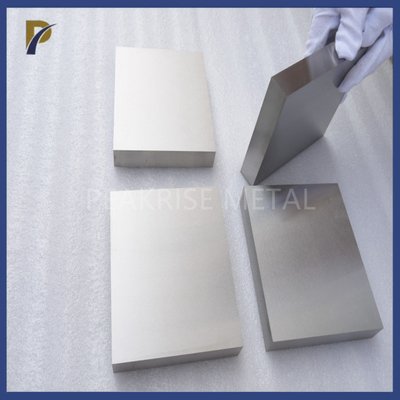

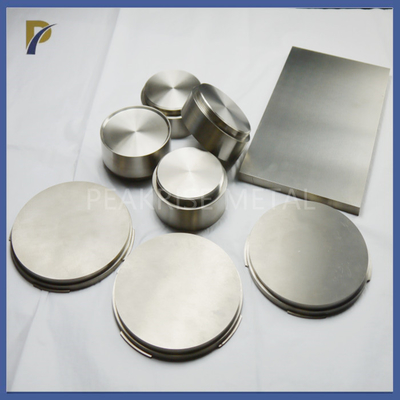

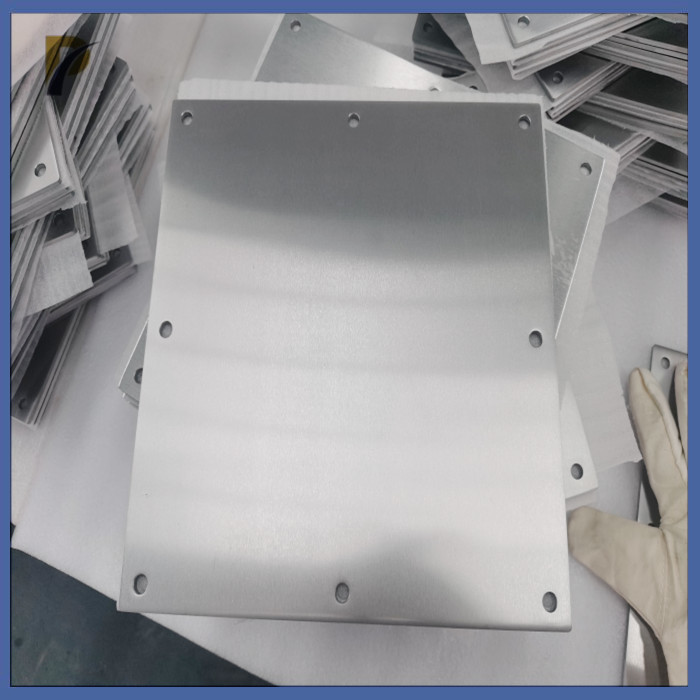

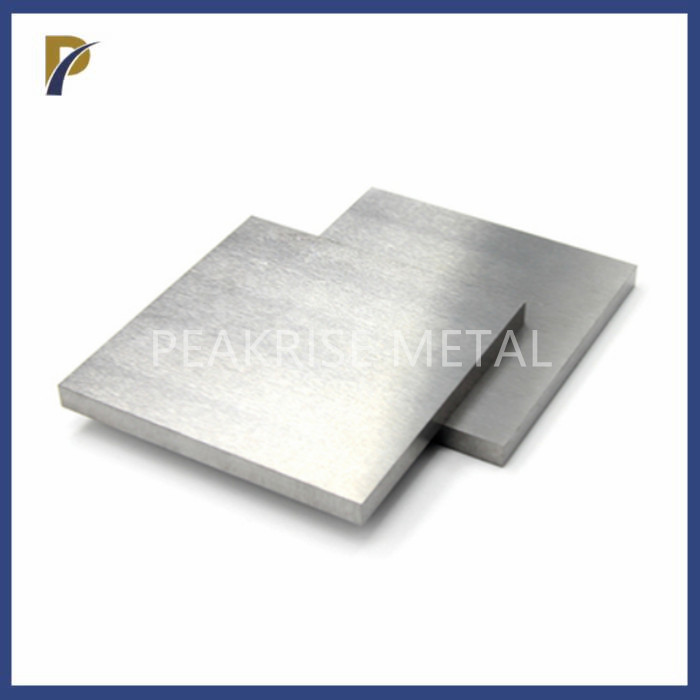

La2O3 Molybdenum Tungsten Alloy MoLa , Molybdenum Lanthanum Alloy Plate
1. Description of La2O3 MoLa Molybdenum Tungsten Metal Alloys Plate:
What is Molybdenum Lanthanum Alloy ?
Molybdenum-lanthanum alloy plate is an alloy composed of the base metal molybdenum and the lanthanum trioxide that exists in the matrix as dispersed particles. The La2O3 content in the alloy is generally 0.5% to 5.0% (mass fraction).
2. Size of La2O3 MoLa Molybdenum Tungsten Metal Alloys Plate:
Molybdenum-lanthanum alloy plate
Thickness:0.1mm-80mm wideth:10-700mm length:30-3000mm
Grade:Mo-1,TZM,Mo-La
Standard:GB,ATSM.DIN
Surface:black,C.C,bright
3. Chemical Content of La2O3 Molybdenum Lanthanum Alloy Plate:
| Element | Content range(wt%) |
|---|---|
| 钼 (Mo) | 97.0% - 99.0% |
| 镧 (La) | 0.4% - 1.2% |
| 铁 (Fe) | ≤0.005% |
| 钛 (Ti) | ≤0.002% |
| 硅 (Si) | ≤0.01% |
| 铝 (Al) | ≤0.002% |
| 镍 (Ni) | ≤0.005% |
| 钽 (Ta) | ≤0.02% |
| 铜 (Cu) | ≤0.001% |
| 碳 (C) | ≤0.010% |
| 氧 (O) | ≤0.008% |
| 氮 (N) | ≤0.003% |
| 镁 (Mg) | ≤0.002% |
| 锡 (Sn) | ≤0.010% |
| 钽-钨 (Ta-W) | ≤0.030% |
4. Process method of La2O3 Molybdenum Lanthanum Alloy Plate:
After the molybdenum-lanthanum alloy billet is opened at 1500 ℃, it is warmly rolled and cold rolled to a plate with a thickness of 2.4 mm. The pass processing rate is 25%~35%, and the total processing rate is 80%. The rolled molybdenum lanthanum alloy plates were annealed in a hydrogen furnace at 1100, 1250, 1400, 1550 and 1950°C, respectively.
5. Advantage of La2O3 Molybdenum Lanthanum Alloy Plate:
Mo-La material dispersions reinforced with lanthanum oxide have excellent creep resistance. The service life of its screen and radiator is more than double that of pure molybdenum components. The material retains its fibrous structure during long-term operation at high temperatures. Furthermore, the heat sink and screen assemblies made from 0.4–0.5 mm maintained plasticity in the recrystallized state at room temperature.
Other Related Products:
Mo electrode MoCu alloy WCu alloy Oxygen-free copper
