Thickness 3~25mm Pure Molybdenum Electrode Plate For Fiberglass Kiln

Place of Origin China
Brand Name PRM
Certification ISO9001
Model Number custom
Minimum Order Quantity 1kg
Price $50~150/kg
Packaging Details plywood case
Delivery Time 15~20 work days
Payment Terms T/T
Supply Ability 2000kgs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name Plate Molybdenum Electrode Be Used For Fiberglass Kiln Shape Plate Electrode
Material Pure Molybdenum Purity Min.99.95%
Thickness 3~25mm Width 50~500mm
Length <800mm Density 10.2g/cm3
High Light

Fiberglass Kiln Molybdenum Electrode


25mm Molybdenum Electrode


3mm pure molybdenum sheet

Leave a Message
Product Description

Utilizing Plate Molybdenum Electrodes in Fiberglass Kilns


1. Description of Plate Molybdenum Electrode Be Used For Fiberglass Kiln:


The high density (10.1 g/cm2) and high strength of the plate-shaped molybdenum electrode enable it to withstand the erosion and corrosion of high temperature glass liquid. Commonly used electric heating element materials are: silicon carbon rod, tin oxide, graphite, molybdenum and platinum. Among them, the melting point of molybdenum is as high as 2620±10℃, which has excellent electrical conductivity at high temperature, low thermal expansion coefficient, and is very stable in the reduction state, but it is easy to be oxidized at high temperature. Sintered molybdenum is brittle and difficult to cold work.


Molybdenum electrode rod The unit weight should not exceed 80kgs, molybdenum electrode rod 70kgs, molybdenum electrode plate 40kgs. Its appearance is bright silver-gray metallic luster, and they can be made according to customer's drawings.

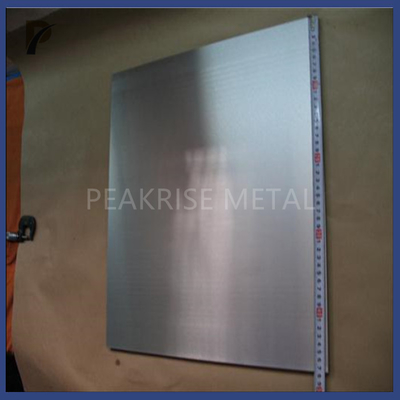

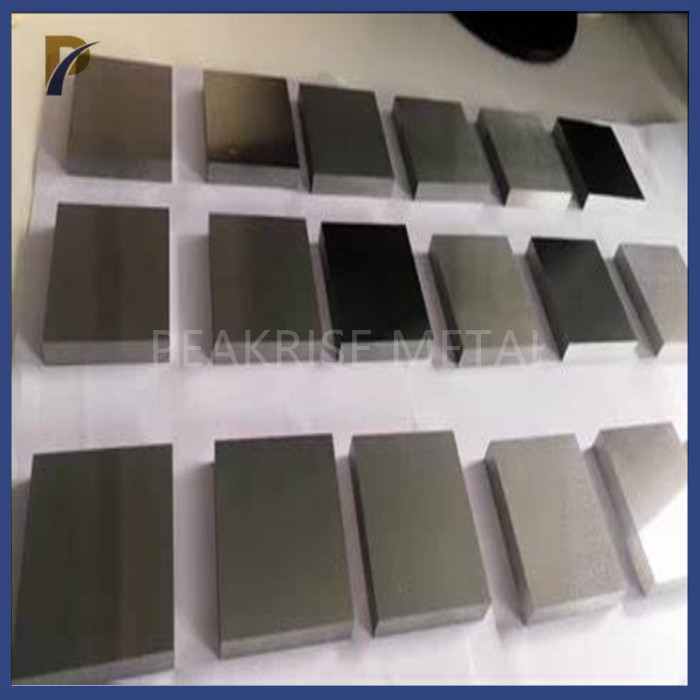

Thickness 3~25mm Pure Molybdenum Electrode Plate For Fiberglass Kiln 0Thickness 3~25mm Pure Molybdenum Electrode Plate For Fiberglass Kiln 1


2. Size of Plate Molybdenum Electrode Be Used For Fiberglass Kiln:


Purity Mo>99.95%
Density >10.2g/cm3
Size (3 - 25)* (50 -500) *L<800mm
Grade Impurity content conforms to ASTM B386 standard
Fe Ni Si N C O Mo
361 0.01 0.005 0.01 0.002 0.01 0.007 Remain


3. Different applications of molybdenum electrode rods and molybdenum electrode plates:


Molybdenum electrode rods are widely used as furnace electrodes for electric booster glass furnaces.


The molybdenum electrode plate is dark brown with gray metallic luster such as silver alkali wash. Molybdenum electrode plates can be used as heating equipment for various glass fiber kilns, liquid flow orifice panels, etc.


4. Factors Influencing the Service Life of Plate Molybdenum Electrodes For Fiberglass Kiln:


The service life of the plate-shaped molybdenum electrode in the feed channel generally depends on the current density of the electrode, the flow rate and viscosity of the glass liquid, and the chemical composition of the glass. The greater the current density, the greater the flow rate of the glass liquid, the smaller the viscosity, and the shorter the electrode life. In order to make the aluminum electrode have a longer life, the following chemical components must be specified as follows: As2O3<0.1, Sb2O3<0.4, Fe2O3<1.5, CuO<0.5%, Cr2O3, MnO, F<1%.


When heating with molybdenum electrodes, sometimes small bubbles are found in the glass, which may come from two reasons:


The current density on the surface of the plate-shaped molybdenum electrode is too large;


The composition of the frit side exceeds the above specification.


When the glass furnace is discharged, foaming can be seen on the surface of the aluminum plate when the molybdenum electrode is taken out, which is mainly caused by the evaporation of MoO3.



Do you want to know more about our products?

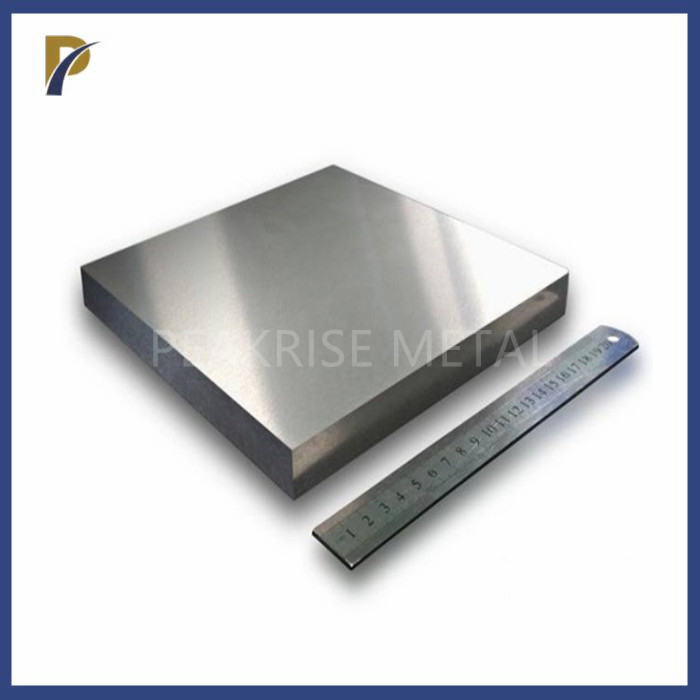

Thickness 3~25mm Pure Molybdenum Electrode Plate For Fiberglass Kiln 2

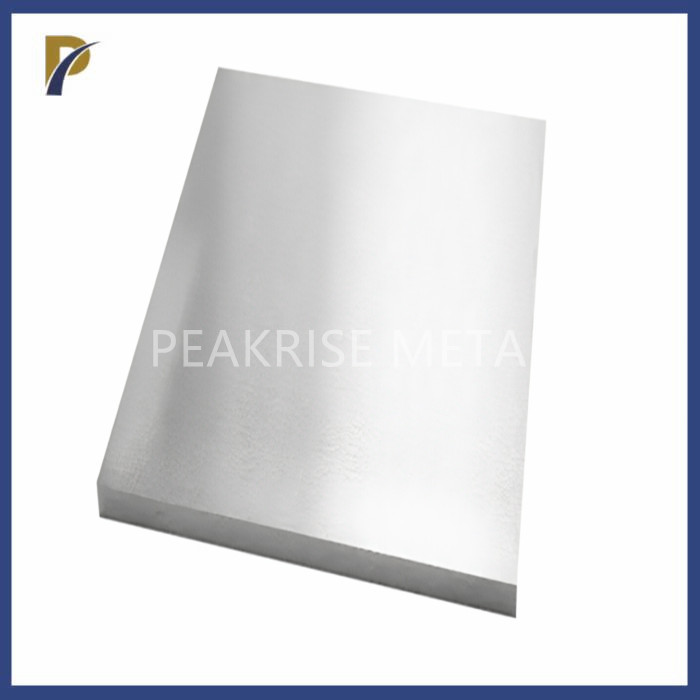

Thickness 3~25mm Pure Molybdenum Electrode Plate For Fiberglass Kiln 3
