Black Tungsten Products Pure Tungsten Portable Heater For High Temperature Vacuum Environment Tungsten Rod Heaterfurnace
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Tungsten Heater For High Temperature Vacuum Environment | Material | Pure Tungsten |
|---|---|---|---|
| Purity | 99.95% | Density | 19.3 G/cm3 |
| Surface | Black, Alkaline Wash | Application Temperature | ≤2300℃ |
| High Light | ISO9001 Tungsten Products,Alkaline wash Tungsten Products,Pure Tungsten Portable Heater |
||
Product Description
Tungsten Heater For High Temperature Vacuum Environment
1. Description of Tungsten Heater For High Temperature Vacuum Environment:
Tungsten Heater melting point of tungsten is as high as 3420ºC, it has excellent high temperature strength, and it also has very good corrosion resistance to molten alkali metals and vapors. Its extremely high thermal stability ensures that it can still work normally in a high temperature environment.
Tungsten heater has the characteristics of high strength and hardness, good high temperature performance, low resistivity, small expansion coefficient, and small electronic work function. It is a widely used high temperature resistant metal material.
2. Measurements and Tolerances of Tungsten Heater For High Temperature Vacuum Environment:
Tungsten heater
Unit:mm
| Tungsten heater | ||||||
| Diameter |
Diameter tolerance |
Width |
Width tolerance |
Height |
Height tolerance |
Remark |
| 3.0 | ±0.1 | ≤650 | ±1 | ≤1200 | ±1 | Shape of bottom and design of bendingradius will be Manufactured according to customers’ requirements |
| 4.0 | ±0.1 | ≤600 | ±1 | ≤1150 | ±1 | |
| 5.0 | ±0.1 | ≤550 | ±1 | ≤1100 | ±1 | |
| 6.0 | ±0.2 | ≤550 | ±1 | ≤1050 | ±1 | |
| 7.0 | ±0.2 | ≤500 | ±1 | ≤1000 | ±1 | |
| 8.0 | ±0.2 | ≤500 | ±1 | ≤950 | ±1 | |
| 9.0 | ±0.2 | ≤450 | ±1 | ≤900 | ±1 | |
| Using a CNC lathe, copper bases will be manufactured in accordance with customer specifications. | ||||||
Depending on the needs of the customer, other sizes can be modified.
3. Physical and Chemical properties of Tungsten Heater For High Temperature Vacuum Environment:
(1)Tungsten heater Purity:W≥99.95%；
Density:≥19.3g/cm3；
Application temperature environment:≤2300℃；
(2) Copper base
Purity:Cu≥99.95%；
Density:≥8.8g/cm3；
Application temperature environment:≤1000℃；
| Quantitative analysis | ||||||||||
| Element | Si | Al | Mo | Bi | Mg | Pb | Ni | Fe | Ca | P |
| Concentration(%) | 0.001 | 0.0005 | 0.002 | 0.0001 | 0.0005 | 0.0001 | 0.001 | 0.002 | 0.0005 | 0.001 |
| Element | C | O | N | Sb | Cu | |||||
| Concentration(%) | 0.001 | 0.003 | 0.0006 | 0.0006 | 0.0006 | |||||
| Purity(Metallic Base) W≥99.95% | ||||||||||
4. Manufacture process and Equipment of Tungsten Heater For High Temperature Vacuum Environment:
| Tungsten heater | |||
| Item | Process | Equipment | Quality check point |
| 1 | Tungsten rod | 1 Physical and chemical properties | |
| 2 | Clean | 2 Length, linearity, diameter, ovality | |
| 3 | Check | 3 Surface quality | |
| 4 | Kink or pressing | Bending machine | 1 Measurements (length, width) |
| 5 | Calibration | Calibration mould | 2 Arc radius |
| 6 | Check | 3 Surface quality | |
| 7 | Wire cutting | Wire cutting machine | 1 Surface quality |
| 8 | Clean | 2 Tolerance of measurement, arc radius according to | |
| 9 | Check | tolerance stated on drawing | |
| 10 | Package | 3 Show certificate of quality | |
5. Application of Tungsten Heater For High Temperature Vacuum Environment:
When used as a heat source in the sapphire growth furnace, tungsten heater components have a significant impact on the Al2O3 melt's ability to create turbulence and radial temperature gradient. Therefore, the quality control of sapphire crystal, energy efficiency, and service life are greatly influenced by high-purity and high-density tungsten heater components with careful manufacture and acceptable design.
With the wide application of the LED industry, the demand for sapphire, the substrate material of LEDs, has grown exponentially in recent years. Since the crystallization temperature of sapphire reaches above 2200°C, the crystallization process requires high temperature stability and thermal field environment. Therefore, a tungsten heating heater with high melting point and stable performance at high temperature with less pollution is used in the sapphire crystal growth furnace. has been widely used.

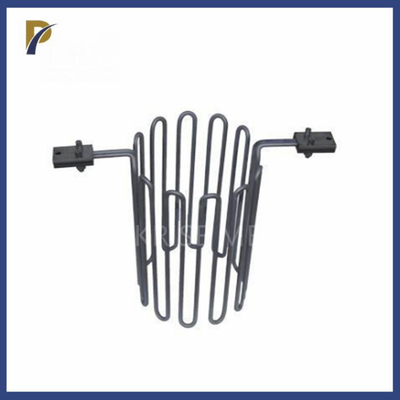

The birdcage type tungsten heating element made of tungsten material can well meet the environmental requirements of the sapphire crystal growth furnace for temperature stability and thermal field.
