5 - 100mm Molybdenum Electrode Systems For Glass Electric Melting Furnaces

Place of Origin China
Brand Name PRM
Certification ISO9001
Model Number Electrode
Minimum Order Quantity 1kg
Price USD20~100
Packaging Details Plywood case
Delivery Time 7~10 work days
Payment Terms T/T
Supply Ability 2000kgs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Molybdenum Electrode Systems For Glass Electric Melting Furnaces Material Pure Molybdenum
Purity >99.95% Diameter 5~100mm
Length ≤1500 Mm Surface Polished
Density 10.2g/cm3 Heating Method The Electrodes Are Electrically Heated
High Light

Glass Electric Melting Furnaces Molybdenum Electrode

,

Polished Molybdenum Electrode Systems

,

100mm Electrode Rod

Leave a Message
Product Description

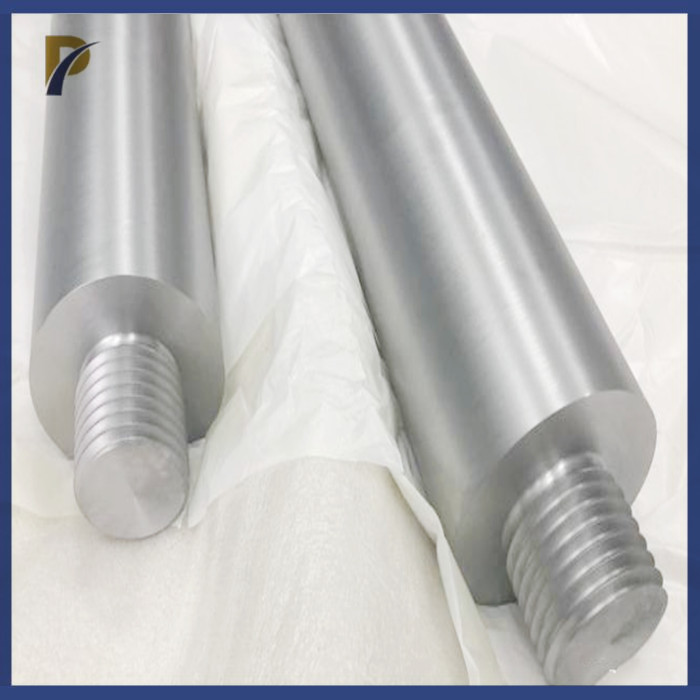

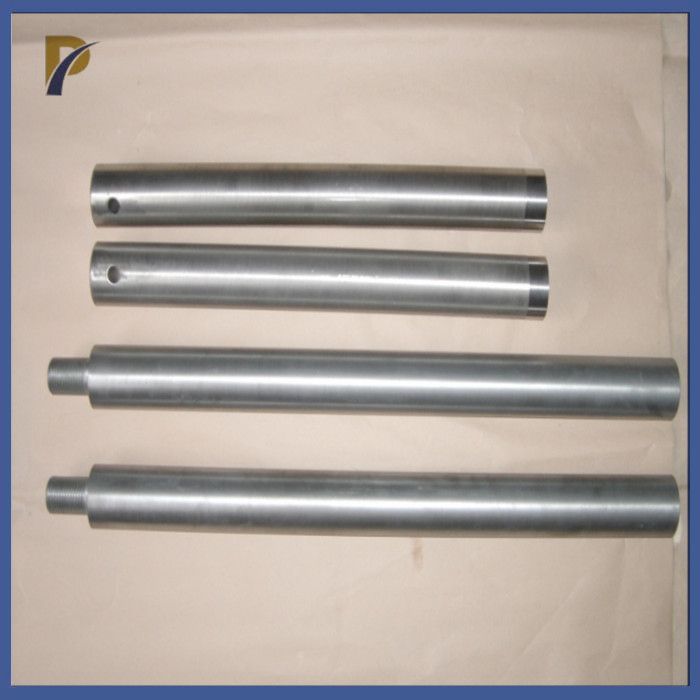

Molybdenum Electrode Systems For Glass Electric Melting Furnaces



1. Information Of Molybdenum Electrode Systems For Glass Electric Melting Furnace:



Molybdenum molten glass electrodes have good high temperature performance, corrosion resistance and electrical and thermal conductivity, and are often used as heating devices for melting glass in various glass melting furnaces. In an electric glass melting furnace, producers heat electrodes electrically to melt glass at high temperatures. It is widely used to melt high-grade optical glass, fiber glass, refractory rock wool and other glass materials.



Electric boosting molybdenum electrode is a kind of electrode material used in glass electric boosting furnace, which is actually molybdenum electrode. Glass electric booster is a kind of furnace equipment that uses gas fuel to melt glass by heating molybdenum electrodes. It directly introduces electric energy into the molten glass to generate "Joule reaction" to achieve auxiliary heating of the molten glass.



2. Dimension Of Molybdenum Electrode Systems For Glass Electric Melting Furnace:



Molybdenum Melting Glass Molybdenum Electrode
Dia
[mm]
tolerance
[mm]
length
[mm]
Surface Straightness
[per m]
Approx weight
[kg/m]
4.00 +/- 0.020 1000 - 2000 polished <2.0 0.128
10.00 +/- 0.020 1000 - 2000 polished <2.0 0.801
20.00 +/- 0.020 2000 polished <2.5 3.204
25.00 +/- 0.040 2000 polished <2.5 5.007
30.00 +/- 0.300 2000 Polished <1.5 7.210
40.00 +/- 0.300 2000 Polished <1.5 12.818
50.00 +/- 0.400 2000 Polished <1.5 20.654
60.00 +/- 0.400 2000 Polished <1.5 28.840
63.50 +/- 0.400 2000 Polished <1.5 32.303
70.00 +/- 0.400 2000 Polished <1.5 39.254
80.00 +/- 1.000 2000 Polished <2.5 51.271
90.00 +/- 1.000 2000 Polished <2.5 64.890
100.00 +/- 1.000 2000 Polished <2.5 80.111
120.00 +/- 2.000 2000 Polished <2.5 115.359



5 - 100mm Molybdenum Electrode Systems For Glass Electric Melting Furnaces 05 - 100mm Molybdenum Electrode Systems For Glass Electric Melting Furnaces 1



3. Company Profile :



Shaanxi Peakrise Metal Co., Ltd. is an rich experienced tungsten and molybdenum non-ferrous metal production enterprise,main products include tungsten-copper alloy, molybdenum-copper alloy, tungsten-molybdenum alloy, high specific gravity tungsten alloy, tungsten alloy, molybdenum alloy and other more than 100 kinds of products.In 2010, with the surge in export sales of products in this industry, we began to focus on foreign trade export business,provide high-quality non-ferrous metal products for the international market.After years of development,at present, it has become a comprehensive non-ferrous metal production enterprise integrating manufacturing and processing, material research and development, product testing, and stock inventory.The development of nearly ten years reminds us that high-quality products and services are always our top priority,at the same time, we continue to expand into new fields and provide high-quality products and services for more domestic and global customers.Products are exported to Taiwan, Ukraine, South Korea, the United States, Australia, Germany, Iran and other countries, and have established long-term good cooperative relations with customers. Our products are highly recognized and evaluated by customers.



Peakrise Metal has a variety of production equipment, such as intermediate frequency sintering furnace, vacuum arc melting furnace, plasma electron beam melting furnace, vacuum annealing furnace, various rolling mills, wire drawing machines, plasma welding rooms, lathes, milling machines, sawing machines, drilling machines, Shears, Stamping Equipment, Cutting Equipment, Grinders, Straightening Machines, CNC, etc.



In order to ensure the traceability of each batch of products, we will establish documents for each batch of products to record the entire situation from production, delivery to customer feedback, thereby improving product quality and customer satisfaction.
