Heating Elements Molybdenum Electrode For Insulation Cotton Industrial Electric Furnaces

Place of Origin China
Brand Name PRM
Certification ISO9001
Model Number Electrode
Minimum Order Quantity 1kg
Price USD50~80
Packaging Details Plywood case
Delivery Time 7~10 work days
Payment Terms T/T
Supply Ability 2000kgs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Production Of Molybdenum Electrode Heating Elements For Insulation Cotton Industrial Electric Furnaces Material Pure Molybdenum
Purity >99.95% Density 10.2g/cm3
Diameter 10~100mm Length ≤1800 Mm
Surface Polished Standard ASTM B387
High Light

Industrial Polished Electrode Rod

,

Molybdenum Electrode Heating Elements

,

Insulation Cotton Molybdenum Electrode

Leave a Message
Product Description

Production Of Molybdenum Electrode Heating Elements For Insulation Cotton Industrial Electric Furnaces



1. Description Of Molybdenum Electrode Heating Elements :



Insulation cotton is formed by melting high-purity clay clinker, alumina powder, silica powder, chrome sand and other raw materials in an industrial electric furnace at high temperature to form a fluid. Then use compressed air to spray or use a spinning machine to spin the silk into fibers, and collect the cotton through the cotton collector to form thermal insulation cotton.



In industrial electric furnaces, molybdenum electrodes are often used as heating elements. Because molybdenum has good high temperature performance, corrosion resistance and good electrical and thermal conductivity. Therefore, it is often used in the production of thermal insulation cotton in industrial electric furnaces. In addition to being used in industrial electric furnaces, molybdenum electrodes can also be used in glass furnaces for melting glass. The performance of molybdenum electrodes will affect the quality of products to a large extent. High-density and high-purity electrodes are not only beneficial to the production of products, but also beneficial to prolong the service life of electrodes and furnaces.





2. Size Of Molybdenum Electrode Heating Elements For Industrial Electric Furnaces:



Common diameter is 50~100mm, also can process as per customer's drawing.



Purity: >99.95%

Density:10.2g/cm3

Surface: Machined surface,Polished

Standard: ASTM B387

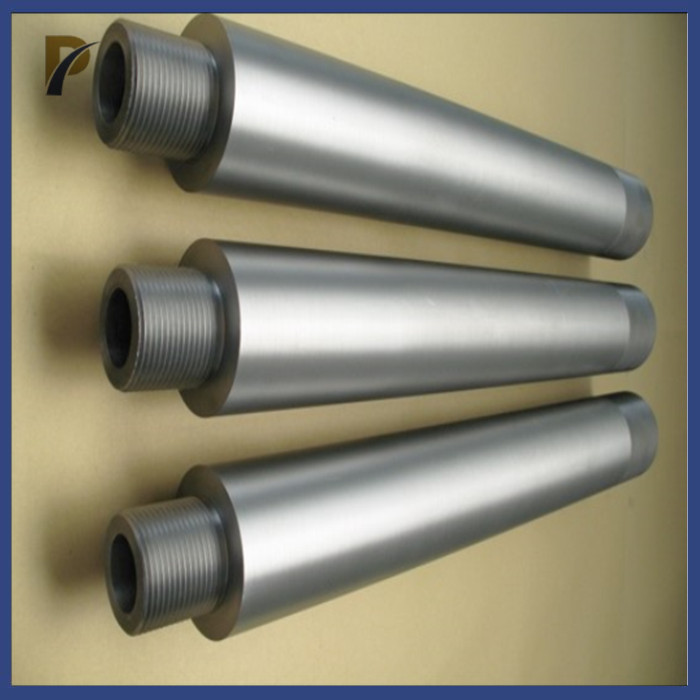

Heating Elements Molybdenum Electrode For Insulation Cotton Industrial Electric Furnaces 0Heating Elements Molybdenum Electrode For Insulation Cotton Industrial Electric Furnaces 1



3. Product introduction of Molybdenum Electrode Heating Elements For Industrial Electric Furnaces:


1). Structure



Molybdenum electrodes are typically fully recrystallized to refine grains and increase density, and are also available in a stress-relieved state upon request.



2). Dimensional tolerance



The maximum deviation in straightness is 2.5mm per meter, the diameter is typically ±0.1mm and the length tolerance is ±2.0mm. No special requirements, tolerances will be performed in accordance with standard ISO2768-m.



3). Purity



Molybdenum electrodes for glass melting are at least 99.95% pure to reduce glass discoloration and have high resistance to degradation and chemical corrosion.



4). Surface condition



The molybdenum electrode surface may be as forged, or machined with a surface of 3.2 microns or higher. Small surface defects are removed by trimming as much as possible without compromising dimensional tolerances.



5). Thread



Generally, both ends of the electrode have an inner thread and an outer thread respectively. Thread standard can be based on international ISO metric common thread, Chinese GB, German DIN or American ASME standard, mainly according to customer requirements.



Package of Molybdenum electrode:



Heating Elements Molybdenum Electrode For Insulation Cotton Industrial Electric Furnaces 2Heating Elements Molybdenum Electrode For Insulation Cotton Industrial Electric Furnaces 3
