AutoFluxer Zirconium Crucible With Flanged Laboratory Analysis Zr702

Place of Origin China
Brand Name PRM
Certification ISO9001
Model Number Custom
Minimum Order Quantity 1pc
Price Negotiate
Packaging Details Plywood case
Delivery Time 5~7days
Payment Terms T/T
Supply Ability 50ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name Zirconium Crucible Grade Zr702
Purity >99.7% Shape Low Form, Straight Wall, Flange Crucible
Volume 5ml,10ml,15ml,20ml,25ml,30ml,35ml,40ml Etc, Size According To Customer's Drawing
MOQ 1pc Application Laboratory Analysis
High Light

Zr702 Zirconium Crucible


Zirconium Crucible With Flanged


Laboratory Analysis Zirconium Crucible

Leave a Message
Product Description

Product information:


Name: Zirconium crucible for laboratory analysis
Shape: low form,with flange,straight wall or according to customer's drawing
Grade: Zr 702
Volume: 5ml,10ml,15ml,20ml,25ml,30ml,35ml,40ml,45ml,50ml etc,
Size: according to customer drawing or our common size.
Surface: bright
MOQ: 1pc
Place of origin: Shaanxi ,China



Zirconium crucible low form are especially adaptable to the needs of the analytical chemistry laboratory, such as in strong alkaline fusions employed to reduce refractory samples to a soluble

form, and for high temperature ignition ashing purposes.


Zirconium metal is a most effective all-round crucible for fusions using sodium carbonate or sodium peroxide and is an excellent low-cost replacement for platinum. Based on an average of 100 fusions per crucible, zirconium is more cost-effective than less expensive crucibles of porcelain or steel.


The Common Size of Zirconium Crucible:

Low form Zirconium crucible
Top diameter(mm) Bottom diameter (mm) Height (mm) Wall thickness (mm) Capacity (ml)
22 18 20 2 3.6ml
26 16 20 2 5.0ml*2mm
30 24 26 2 10ml*2mm
40 26 41 1 30ml*1mm
42 27 42 2 30ml*2mm
42 30 42 1.6 35ml*1.6mm
41 33 42 2 35ml*2mm
43 34 40 1 40ml*1mm
47 40 35 1 45ml*1mm
49 42 36 2 45ml*2mm
48 38 45 3 45ml*3mm
47 40 38.5 1 50ml*1mm
48 40 42 2 50ml*2mm
56 44 50 2 80ml*2mm
AutoFluxer crucible with flanged
48 29 33 2 25ml*2mm
60 36 39 1 50ml*1mm
60 36 43 2 50ml*2mm


We can process many types as per customer drawing and size,and we can supply the third party testing report.

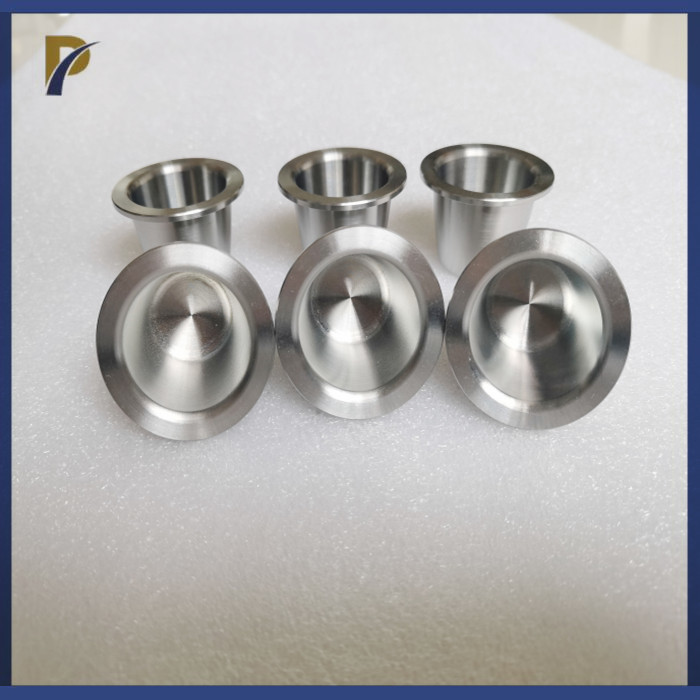

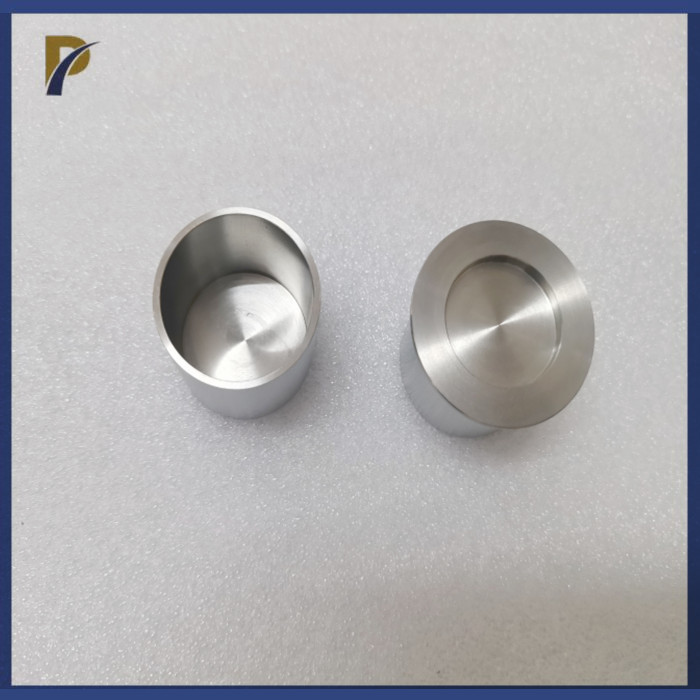

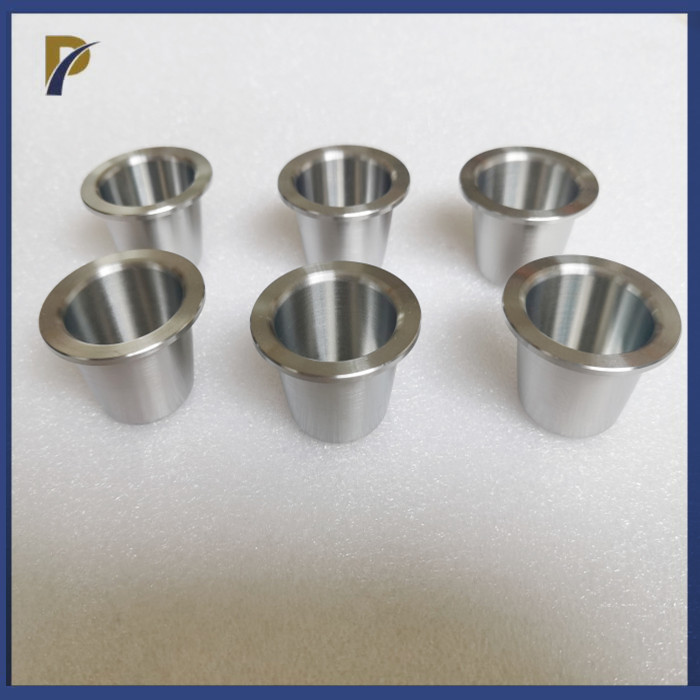

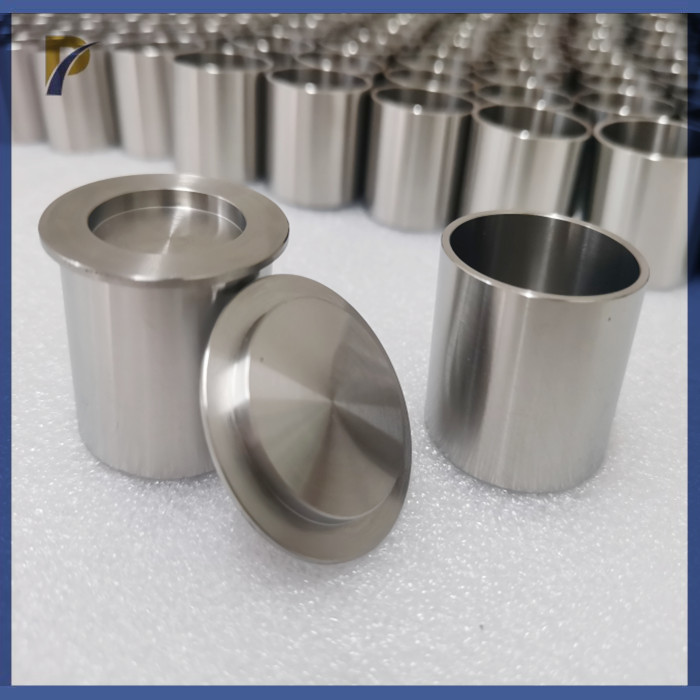

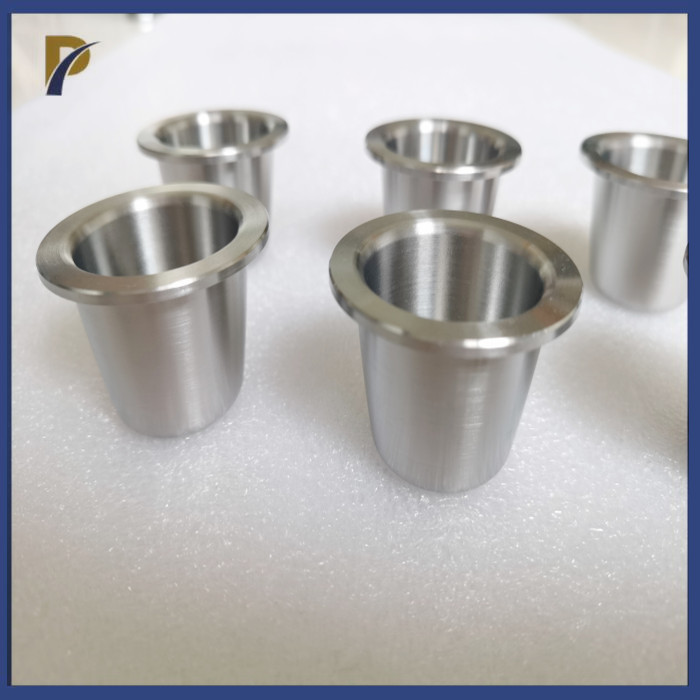

Crucible Show:

AutoFluxer Zirconium Crucible With Flanged Laboratory Analysis Zr702 0AutoFluxer Zirconium Crucible With Flanged Laboratory Analysis Zr702 1AutoFluxer Zirconium Crucible With Flanged Laboratory Analysis Zr702 2AutoFluxer Zirconium Crucible With Flanged Laboratory Analysis Zr702 3

We also can process as per customer drawing,and design drawing according to customer's size.


Application of Zirconium Crucible:


Zirconium crucible can be used in scientific research laboratories, metallurgical vacuum industry, corrosive materials, chemical industry, as a container.


Zirconium crucibles for laboratory analysis are widely used in various chemical analysis, thermal analysis and melting analysis experiments. It can be used for processes such as burning, melting, sintering and thermogravimetric analysis of solid samples.


Cleaning and maintenance: When using a zirconium crucible, care should be taken to avoid contact with strong acid, strong alkali or other corrosive substances to prevent damage to the crucible. After use, the zirconium crucible should be cleaned to avoid interference of residues to the next experiment.
