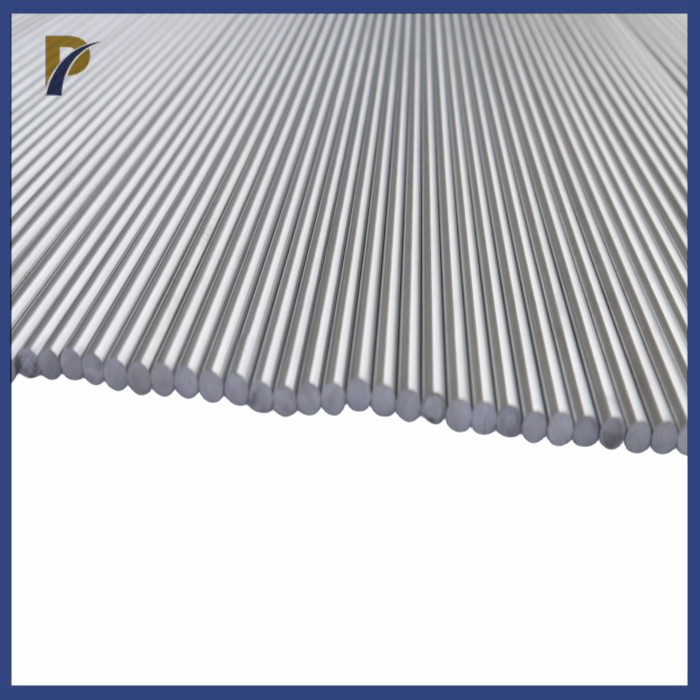

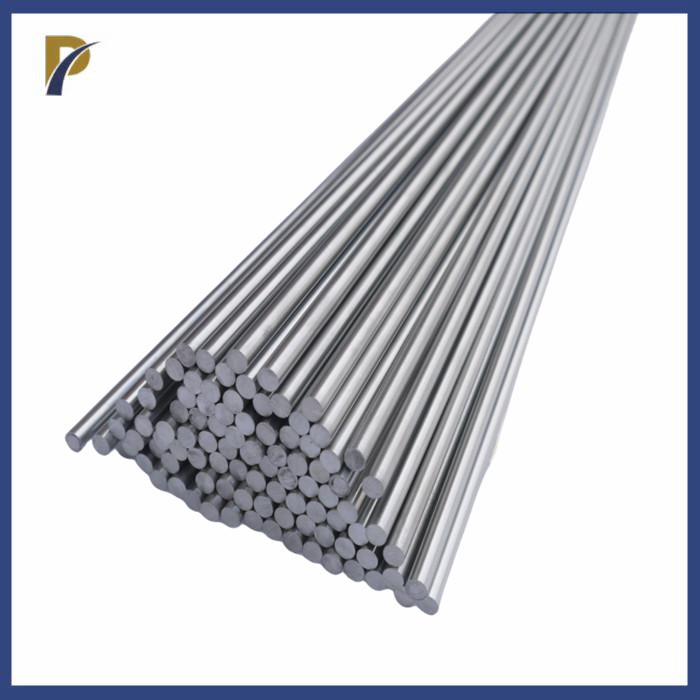

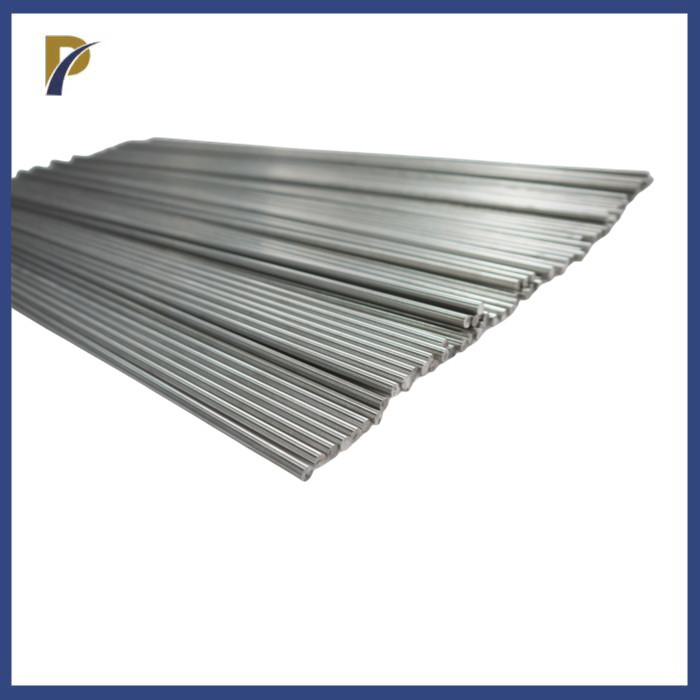

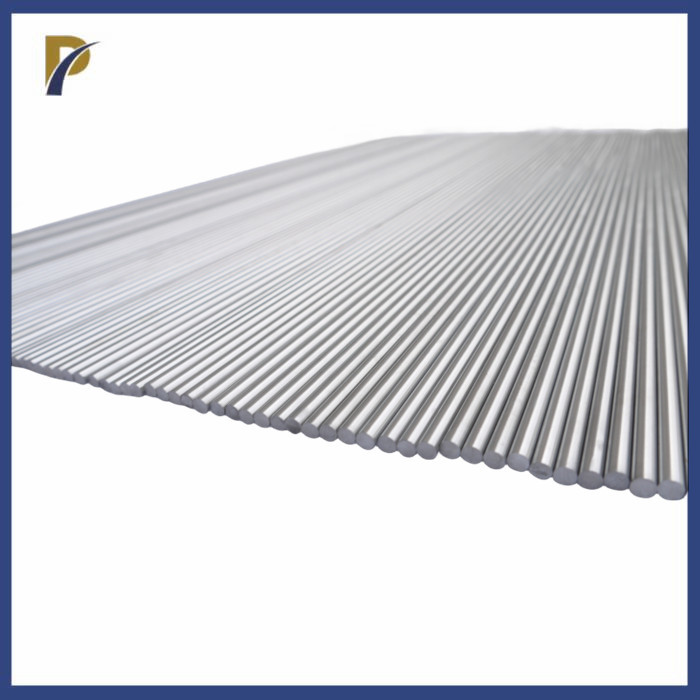

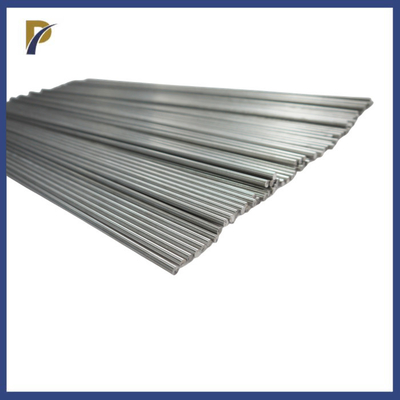

ASTM F67 Gr5 Ti-6Al-4V ELI Titanium Alloy Rod Medical Titanium Bar

Place of Origin China
Brand Name PRM
Certification ISO9001
Model Number TA3,TC4,TC4ELI;GR3,GR5,GR5ELI
Minimum Order Quantity 1kg
Price $15~30/kg
Packaging Details Plywood case
Delivery Time 5~7days
Payment Terms T/T
Supply Ability 50ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Gr5 Ti-6Al-4V ELI Titanium & Titanium Alloy Rod Medical Titanium Bar Material Titanium Alloy
Grade TA3,TC4,TC4ELI; GR3,GR5,GR5ELI Diameter φ4~100mm
Length 2500~3000mm Shape Bar
Surface Polished Tolerance H6~h9 Or As Per Customer's Requirement
High Light

Titanium Alloy Rod

,

Medical Titanium Bar

,

Gr5 Titanium Bar

Leave a Message
Product Description



Among medical metal materials, titanium and titanium alloys have become the preferred materials for medical implant products such as artificial joints (hip, knee, shoulder, ankle, elbow, wrist, knuckles, etc.), bone trauma products (intramedullary nails, plates, screws, etc.), spinal orthopedic fixation systems, dental implants, brackets, orthopedic wires, artificial heart valves, interventional cardiovascular stents, etc. due to their excellent comprehensive properties.



The titanium materials specified for use in surgical transplant materials are mainly pure titanium and Ti-6Al-4VELI alloy.



Product Name Gr5 Ti-6Al-4V ELI Titanium & Titanium Alloy Rod Medical Titanium Bar
Specification(mm) Dia4~100mm*(2500~3000)mm
Grade TA3,TC4,TC4ELI;GR3,GR5,GR5ELI
Standard ASTMF67,ASTMF136.ASTMB13810-2017
Marked Tolerance:h6~h9 or Can be processed and produced according to customer's specific specifications



Mechanical properties comparison:



National standard requirements Tensile Strength Specified non-proportional elongation strength Elongation after fracture Rate of reduction in area
TC4 ≥930 Mpa ≥860 Mpa ≥10% ≥25%
TC4ELI ≥860 Mpa ≥795 Mpa ≥10% ≥25%
Actually testing TC4 1041 Mpa 911 Mpa 15.5% 44%



Peakrise  Metal TC4 high-precision medical titanium rod technical features: low gap TC4 and TC4 two standards in one, that is, it has the low impurities of low gap TC4 ELI and the high performance of TC4. That is to say, it has the performance characteristics of high strength and high plasticity at the same time. The following is a specific comparison of them:



Comparison of chemical composition:



National standard requirements
Al
V
Fe
C
N
H
O
TC4(standard value)
5.5-6.75 3.5-4.5 0.3 0.08 0.05 0.008 0.2
Tc4ELI(standard value)
5.5-6.5 3.5-4.5 0.25 0.08 0.03 0.012 0.13



Using titanium rods to make artificial bones, cells can regenerate on them and bones can grow. Titanium has good affinity with human bones, epithelium, and artificial tissue. In order to improve the surface quality of implants connected to human bones, applying a bioceramic layer to the roughened surface is also a more effective method.



φ6, φ7, φ8, φ10, φ12, φ14 are all in stock year-round.



φ10 and below can be used as bone screws, φ12 and 14 can be used as cone-arch screws, φ16 and 17 can be used as intramedullary nails, and φ20-40 can be used as prosthetic accessories.
