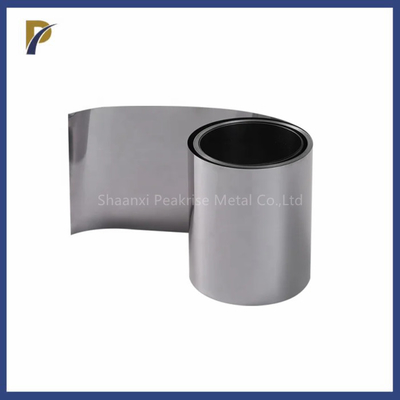

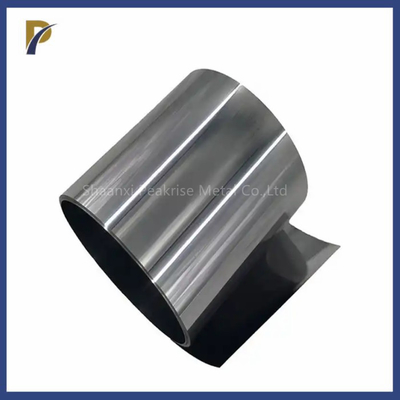

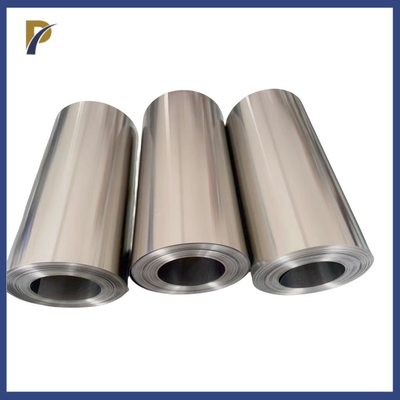

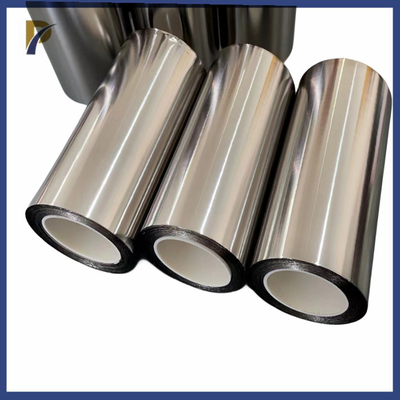

Corrosion Resistant Metal Gr1 Titanium Foil In Coil Rolled 0.01mm min. Thickness

Place of Origin China
Brand Name PRM
Certification ISO9001
Model Number GR1,GR2,GR5,GR7,GR9,GR12
Minimum Order Quantity 5kg
Price $12~28/kg
Packaging Details Plywood case
Delivery Time 5~7days
Payment Terms T/T
Supply Ability 50ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Corrosion Resistant Metal Gr1 Titanium Foil In Coil Rolled Material Pure Titanium
Grade Gr1 Shape Foil,strip In Coil
Thickness 0.01mm Min. Width 250mm
Surface Polished Process Cold Rolled
High Light

Gr1 Titanium Foil

,

Corrosion Resistant Titanium Foil

,

Coil Rolled Titanium Foil

Leave a Message
Product Description

The main difference between Gr1 and Gr2 lies in the content of iron, oxygen and nitrogen. Due to the different contents of the above elements, the strength is also quite different, especially the oxygen content. A difference of 0.01% in oxygen content will bring a strength difference of tens of MPa. Therefore, there are some differences in subsequent processing performance. However, for the corrosion resistance of the material, the two are almost equivalent. Generally speaking, pure titanium GR.1 and GR.2 are basically used to manufacture various working conditions with a temperature of -253 to 250°C and low stress.





National standards:



National standard: GB/T 3622
American standard: ASTM B265



Dimensions:



Thickness: ≤0.1mm
Width: ≤600mm
Length: customizable
Weight per roll: 0~100kg



Main ingredients:



Chemistry composition %
Designation Chief component Impurities maxmium
Ta Nb Fe Si Ni W Mo Ti Nb O C H N
Gr1 Remainder / 0.004 0.003 0.002 0.004 0.006 0.002 0.03 0.015 0.004 0.0015 0.002
Gr2 Remainder / 0.01 0.01 0.005 0.02 0.02 0.005 0.08 0.02 0.01 0.0015 0.01



Mechanical properties:

Tensile strength: 270Mpa ≤ ob ≤ 410Mpa, yield strength ob≥ 165Mpa: elongation: δ≥27%.



Supporting welding materials:ERTi-1.



Corrosion resistance:


Titanium has excellent corrosion resistance in alkaline solutions such as sulfuric acid, hydrochloric acid, nitric acid and sodium hydroxide, as well as in moisture and seawater. However, titanium cannot resist the corrosion of hydrofluoric acid.



Titanium is very stable in the atmosphere, and a dense oxide film is formed on the surface, which can maintain the metallic luster; but when heated to above 600℃, the oxide film loses its protective effect.



Application areas:Aerospace, plate heat exchangers, bellows compensators, expansion joints, seawater desalination, desulfurization and denitrification, chemical equipment and civilian tableware industries, etc.
