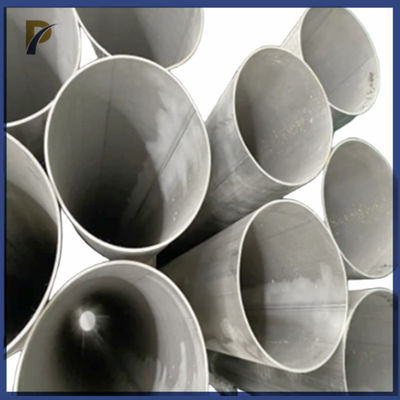

TA2 Pure Titanium Tube Heat Exchanger TA1 Industrial Gr1 Titanium Welded Tube

Place of Origin China
Brand Name PRM
Certification ISO9001
Model Number GR1,GR2,GR5,GR7,GR9,GR12
Minimum Order Quantity 5kg
Price $12~28/kg
Packaging Details Plywood case
Delivery Time 5~7days
Payment Terms T/T
Supply Ability 50ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name TA2 Pure Titanium Tube Heat Exchanger TA1 Titanium Tube Industrial Gr1 Titanium Welded Tube Material Pure Titanium
Grade Gr1 Gr2 TA1 TA2 Shape Large Diameter Welded Tube
Densite 4.51g/cm3 Ti Content 99.6%
Surface Pickling, Sandblasting, Bright Standard ASTM B862,ASTM B338,JIS H4631,JIS H4635
High Light

TA2 pure titanium tube

,

Industrial Gr1 titanium welded tube

,

Heat exchanger TA1 titanium tube

Leave a Message
Product Description

Titanium welded tube are made by selecting high-quality cold-rolled titanium plates of suitable thickness, flattening, cutting and cleaning, then rolling the titanium plates into tubes and welding them by fully automatic welding equipment. Our advanced welding equipment ensures the quality of welding. Ultimately it helps to produce high-quality titanium tubes.





1) Standard: ASTM B338,ASTM F67,ASTM F136,STM B337,ASTM B862

2) Grade: Gr1, Gr2, Gr5, Gr7, Gr9, Gr18, Gr23

3) Seamless pipe outer diameter: 3.0mm-110mm Welded pipe outer diameter: Maximum 1000mm

4) Width: 0.1mm-8.0mm

5) Length: Maximum 19 meters

6) Surface treatment: anodizing, polishing, powder coating, electrophoresis, sandblasting, coating, etc.

7) Inspection:Eddy current flaw detection,Hydrostatictes



Chemical composition:



Grade Chemical composition (wt%)

C

(≤)

O

(≤)

N

(≤)

H

(≤)

Fe

(≤)

Al V Pb

Other elements

(single)

Other elements

(Total)

Gr1 0.08 0.18 0.03 0.015 0.20 0.1 0.4
Gr2 0.08 0.25 0.03 0.015 0.30 0.1 0.4
Gr4 0.08 0.25 0.03 0.015 0.30 0.1 0.4
Gr5 0.08 0.20 0.05 0.015 0.40 5.5〜6.75 3.5〜4.5 0.1 0.4
Gr7 0.08 0.25 0.03 0.015 0.30 0.12〜0.25 0.1 0.4
Gr9 0.08 0.15 0.03 0.015 0.25 2.5〜3.5 2.0〜3.0 0.1 0.4
Gr11 0.08 0.18 0.03 0.15 0.2 0.12〜0.25 0.1 0.4
Gr16 0.08 0.25 0.03 0.15 0.3 0.04〜0.08 0.1 0.4
Gr23 0.08 0.13 0.03 0.125 0.25 5.5〜6.5 3.5〜4.5 0.1 0.1

Mechanical property of the Titanium tube in the room temperature:



Model Number Status Tensile Strength /Mpa Stretch of Specified Residual Force/Mpa

Elongation/%

(L0=50mm)

GR1 M 280-420 more than 170 more than 24
GR2 370-530 more than 250 more than 20
GR3 440-620 more than 320 more than 18
GR7 370-530 more than 250 more than 20
GR12 more than 440 __ more than 18






Inspection:



Chemical composition test
Physical property test
Appearance defect inspection
Flattening test
Combustion test
Hydrostatic pressure test
Air tightness test
Ultrasonic flaw detection
Eddy current test



Applications of titanium tubes:



1) Heat exchangers and condensers

2) Various corrosive fluid delivery pipeline systems

3) Titanium bicycle tubes, automobile exhaust pipes

4) Offshore aquaculture

5) U-shaped heat exchanger coils, condensers, oil pipelines, seawater aquaculture

6) Evaporators, fluid delivery pipelines, etc.

7) Chlor-alkali, aerospace, desalination, soda ash, vacuum salt manufacturing, aerospace, nuclear power, petrochemical industry, pharmaceutical sports equipment



Packaging:


In order to avoid any collision or damage of titanium tubes during transportation, they are usually placed in plastic bags and wrapped with pearl cotton (expandable polyethylene) and then packed in wooden boxes.
