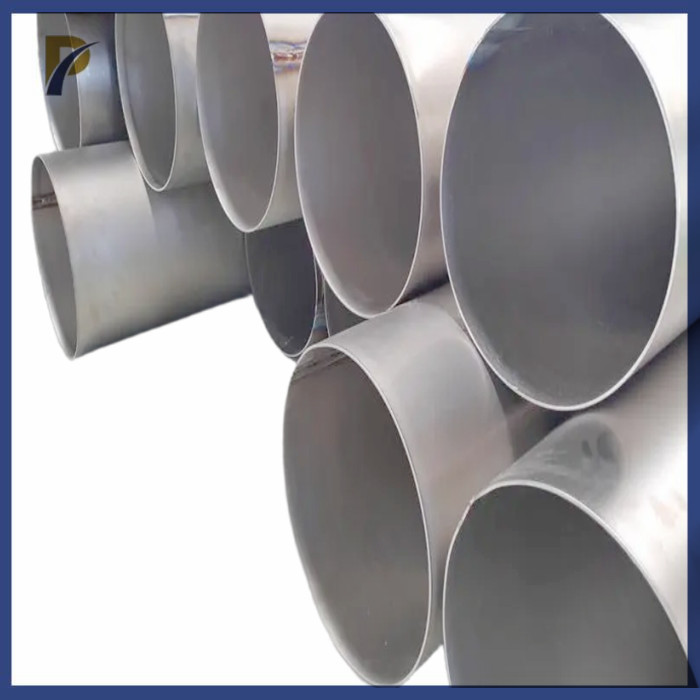

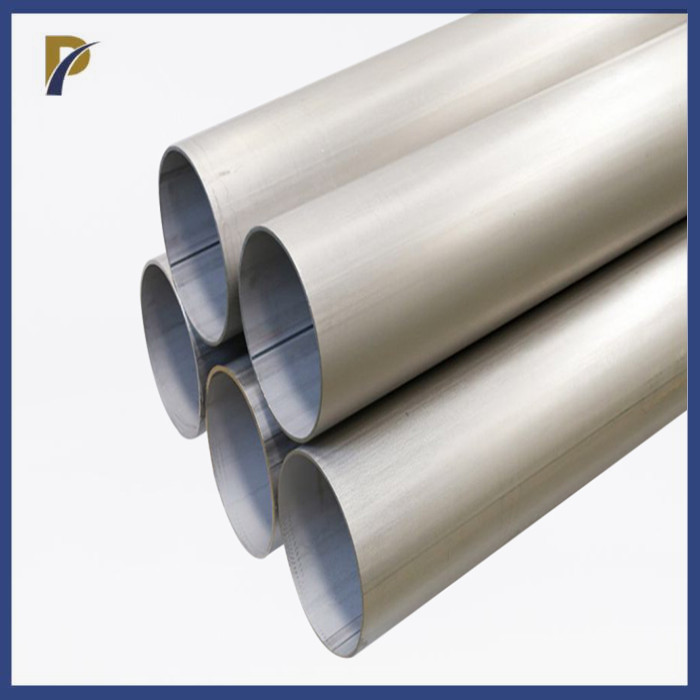

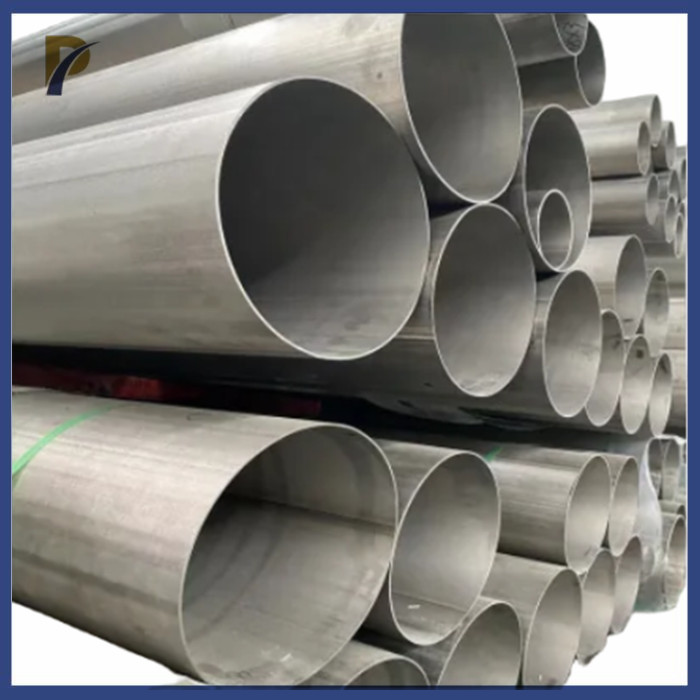

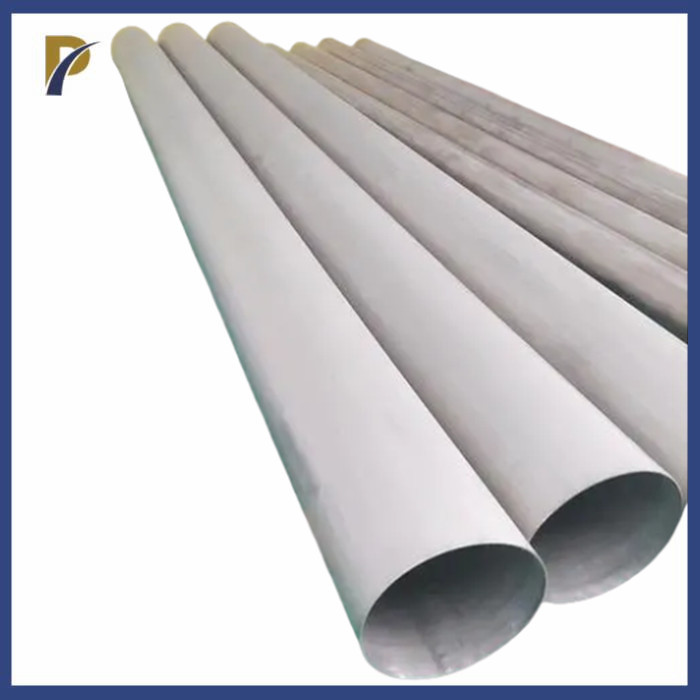

Gr12 Titanium Welded Tubes Seawater Desalination Tubes Fluid Transport Pipe

Place of Origin China
Brand Name PRM
Certification ISO9001
Model Number GR1,GR2,GR5,GR7,GR9,GR12
Minimum Order Quantity 5kg
Price $12~28/kg
Packaging Details Plywood case
Delivery Time 5~7days
Payment Terms T/T
Supply Ability 50ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Gr12 Titanium Welded Tubes Seawater Desalination Tubes Fluid Transport Pipe Material Titanium Alloy
Grade Gr12 TA10 Brand Peakrise
Outdiameter 50-420mm Wall Thickness 0.5-20mm
Length As Per Customer Request Standard ASTM B338/ASME SB338, ASTM B862/ASME SB862
High Light

Gr12 Titanium Welded tubes

,

Seawater Desalination Titanium Welded tubes

,

Fluid Transport Titanium Welded tubes

Leave a Message
Product Description

Material:titanium

Grade:GR1,GR5;TA1,TA2;TC1,TC2,TC4 etc.

Wall thickness:50mm-420mm,customer customize

Length:customer customize

Certificate:ISO9001:2008

Melting point:1668 °C

Boiling Point:3560 °C

Density:4.51g/cm3

Standard: ASTM B338,ASTM F67,ASTM F136,STM B337,ASTM B862

Surface treatment: anodizing, polishing, powder coating, electrophoresis, sandblasting, coating, etc.

Inspection:Eddy current flaw detection,Hydrostaticte


Grade Physical properties

Tensile Strength





Yield Strength



Min.(0.2%,)

Elongation2in or 50mm



Min.(%)

Ksi Mpa Ksi Mpa
Gr1 35 240 20 138 24
Gr2 50 345 40 275 20
Gr5 130 895 120 828 10
Gr7 50 345 40 275 20
Gr9 90 620 70 483 15
Gr11 35 240 20 138 24
Gr12 70 483 50 345 18
Gr16 50 345 40 275 20
Gr23 120 828 110 759 10



Titanium welded pipes are used in the following areas:



◆ Chlorination systems
◆ Flue gas scrubbers
◆ Export ducts and chimney linings for power plants, pulp and paper bleaching plants, sulfur dioxide scrubbers, and welding cladding of metals with poor corrosion resistance
◆ Acid production and pickling systems
◆ The pharmaceutical industry uses alloy pipe fittings and piping to avoid pollution caused by failures due to corrosion
◆ Cellophane manufacturing
◆ Chlorination systems
◆ Pesticide production
◆ Incineration and scrubbing systems
◆ Equipment in chemical processing industries such as flue gas scrubbers, chlorination systems, sulfur dioxide scrubbers, pulp and paper bleaching plants, pickling systems and nuclear fuel reprocessing
◆ Wastewater treatment
◆ Pollution control chimney linings, ducts, dampers, scrubbers, chimney gas reheaters, fans and fan housings
◆ Flue gas desulfurization systems
◆ Chemical processing components such as heat exchangers, reaction vessels, evaporators, etc. Transportation pipelines
◆ Sour gas wells
◆ Pulp and paper production
◆ Waste treatment
◆ Pharmaceutical and food processing equipment
