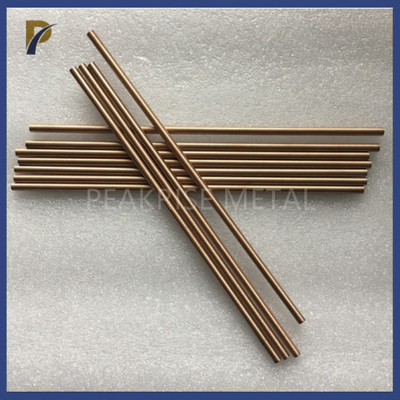

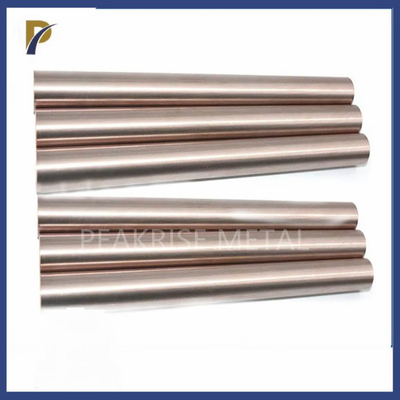

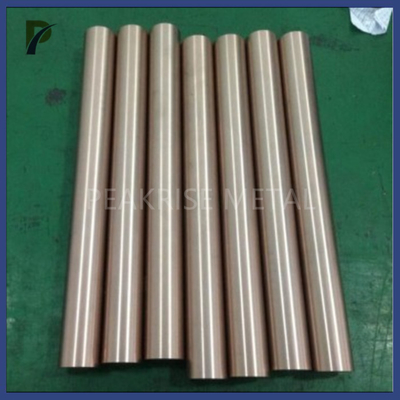

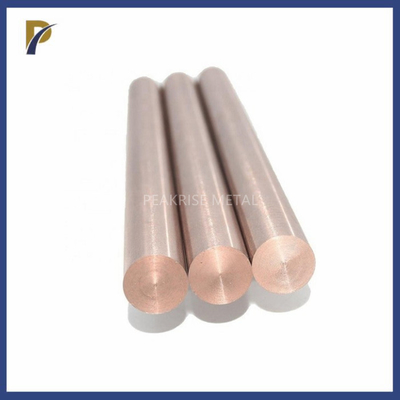

Dia 25mm WCu20 Tungsten Copper Alloy Rod Bright Surface For Electrodes Tungsten Copper Rod Copper Tungsten Bar
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Tungsten Copper Alloy | Garde | WCu20 |
|---|---|---|---|
| Density | 15.1~15.5g/cm3 | Surface | Bright |
| Hardness（HB）） | 220 | Application | Contacts, Electrodes |
| Export Port | Any Port In China | Package | Plywood Case |
| High Light | 25mm Tungsten Copper Alloy,WCu20 Tungsten Copper Alloy,Electrodes tungsten copper rod |
||
Product Description
Dia 25mm WCu20 Tungsten Copper Alloy Rod Bright Surface For Electrodes
1. Description of Copper Alloy Rod Tungsten Copper Alloy For Electrodes :
The excellent metal properties of high-purity tungsten powder and the plasticity and high conductivity of high-purity copper powder are combined to create tungsten copper, a composite material that is refined through the processes of static pressing, high temperature sintering, and copper infiltration. Good electrical and thermal conductivity, low thermal expansion, little softening at high temperatures, high strength, high density, and high hardness are all characteristics that contribute to effective arc breaking.
2.Physical Properties of Copper Alloy Rod Tungsten Copper Alloy For Electrodes :
| Properties | Densityg/cm3 | Thermal expansion coefficient 10-6/℃ | Thermal conductivityw/(m·k) | Heat capacity J/(kg·℃) | Melting point ℃ | Strength MPa |
| Tungsten | 19. 32 | 4. 5 | 174 | 136 | 3410 | 550 |
| Copper | 8. 93 | 16. 6 | 403 | 385 | 1083 | 120 |
3.Main properties and uses of Copper Alloy Rod Tungsten Copper Alloy For Electrodes :
| Grade | Density g/cm3 | Tensile strength/Mpa | Hardness(HB) | Conductivity %IACS | Application | |
| Room temperature | 1600℃ | |||||
| WCu7 | 17.3~17.8 | 400~750 | 50~120 | 280 | ≥26 | Nozzle, gas rudder |
| WCu10 | 16.8~17.3 | 400~700 | 60~100 | 260 | ≥27 | Nozzle, gas rudder |
| WCu15 | 16.0~16.5 | 300~600 | / | 240 | ≥30 | Terminals, components, barium salt electron cathode |
| WCu20 | 15.1~15.5 | / | / | 220 | ≥34 | contacts, electrodes |
| WCu30 | 13.7~14.2 | / | / | 175 | ≥42 | Contacts, electrodes, medicine caps |
| WCu40 | 12.7~13.2 | / | / | 140 | ≥47 | contacts, electrodes |
| WCu50 | 11.7~12.2 | / | / | 115 | ≥55 | contacts, electrodes |
4.Application of Copper Alloy Rod Tungsten Copper Alloy For Electrodes :
Resistance welding electrodes
Combining the good properties of tungsten and copper, high temperature resistance, arc ablation resistance, high strength, large specific gravity, good electrical and thermal conductivity, easy to process, and its functions sweating, for instance, or tungsten's high hardness, high melting point, and anti-adhesion features, which are frequently employed to ensure wear resistance, high and low temperature welding, and butt welding electrodes.
EDM electrode
The accuracy of the workpiece is greatly improved by using tungsten copper electric, which has a high speed, low loss rate, precise electrode shape, and excellent machining performance corrosion in comparison to tungsten steel, a high temperature resistant super hard alloy die-casting that is produced by corrosion.
High Voltage Discharge Tube Electrodes
In the workplace, the high-voltage vacuum discharge tube briefly makes contact with the material at 0 and thousands of degrees Celsius, and its ablation resistance, high toughness, and good electrical conductivity are all demonstrated the tungsten copper's electrical and thermal conductivity offers the discharge tube's required stable circumstances.
Electrical Sealing Materials
It not only possesses the high thermal conductivity and low expansion of tungsten and copper. Its expansion index and thermal conductivity can also be changed by changing the content of the material, providing convenience for the use of material.We can supply tungsten-tungsten-copper alloys of various specifications and different proportions.
