MW30 Molybdenum Tungsten Alloy 2.0mm Thickness ASTM B386

Place of Origin China
Brand Name PRM
Certification ISO9001
Model Number custom
Minimum Order Quantity 1kg
Price Negotiate
Packaging Details plywood case
Delivery Time 15~20 work days
Payment Terms T/T
Supply Ability 1000kgs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Molybdenum Tungsten Alloy Sheet 2.0mm Thickness Grade MW30
Standard ASTM B386 Mo Content 70%
W Content 30% Shape Plate/sheet
Thickness 2.0mm Export Port Any Port In China
High Light

MW30 Molybdenum Tungsten Alloy

,

Molybdenum Tungsten Alloy 2.0mm

,

Molybdenum Alloy Sheet ASTM B386

Leave a Message
Product Description

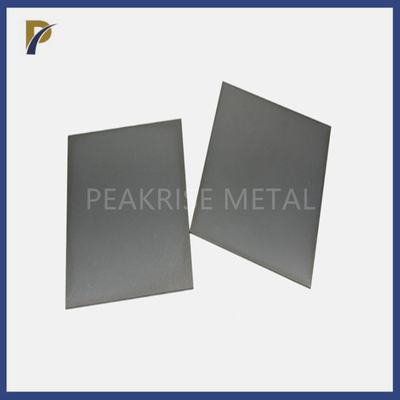

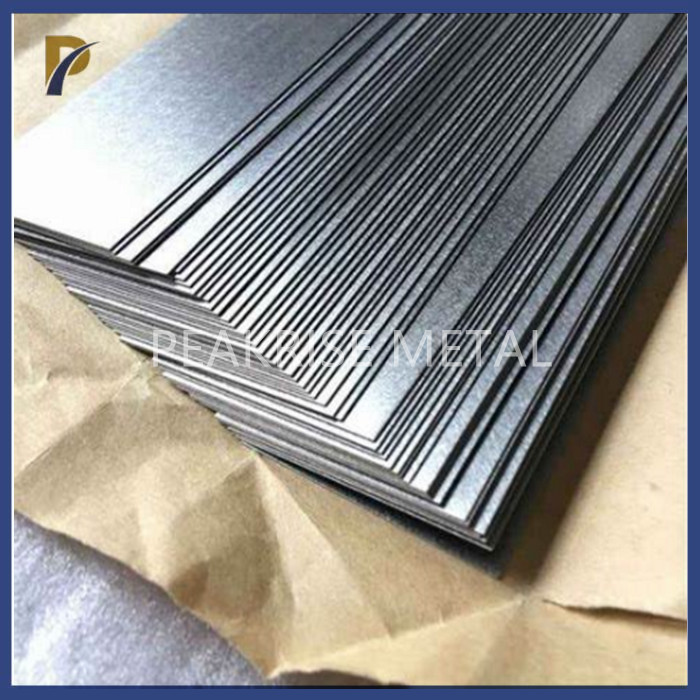

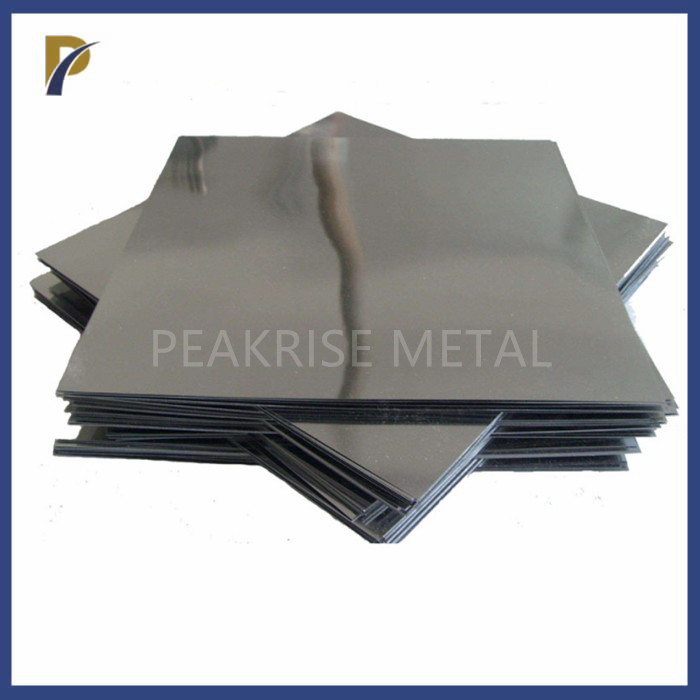

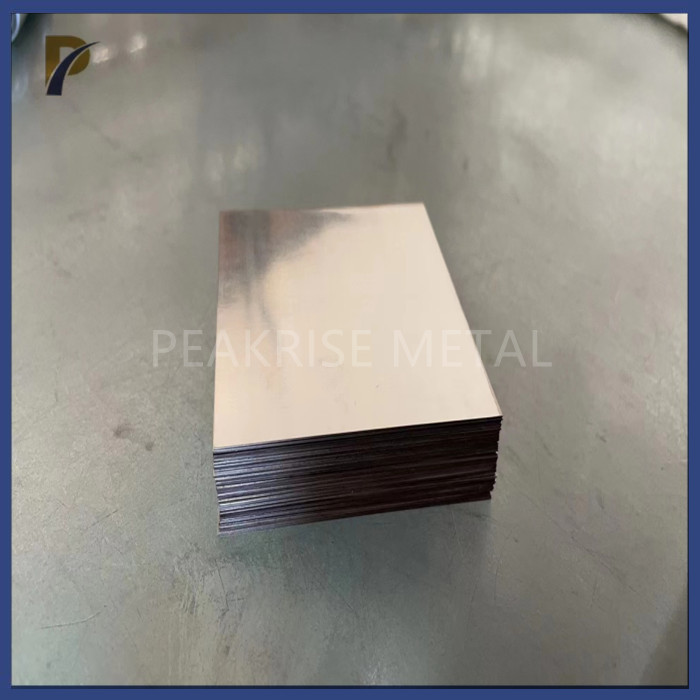

MW30 Molybdenum Tungsten Alloy Sheet 2.0mm Thickness



1. Product Description of  MW30 Molybdenum Tungsten Alloy Sheet 2.0mm Thickness:



Excellent creep resistance, low resistivity, good corrosion resistance, high thermal conductivity, and little thermal expansion are all characteristics of molybdenum. In comparison to molybdenum or molybdenum alloys, molybdenum tungsten alloy (Mo-W Alloy) has good performance in preventing corrosion of molten zinc and may be employed at higher temperatures. When it comes to Molybdenum Tungsten Alloy (Mo-W Alloy), Shaanxi Peakrise Metal Co.,Ltd (PRM) may offer various shapes with varying Zirconium, Hafnium, and Carbon ratios. Bar, sheet, plate, and disc are examples of common forms, and custom shapes can be requested.



MW30 Molybdenum Tungsten Alloy 2.0mm Thickness ASTM B386 0MW30 Molybdenum Tungsten Alloy 2.0mm Thickness ASTM B386 1


2. Size and Tolerance of MW30 Molybdenum Tungsten Alloy Sheet 2.0mm Thickness:



Width, Inches (mm) Thickness ,Inches (mm) Tolerance of Thickness , Inches (mm)
≤12  (305) ≥0.005~0.01 (0.13~0.25)



 ±0.001(±0.0254)

≥0.01~0.02 (0.25~0.51)  ±0.002 (±0.0508)
≥0.02 (0.51)  ±10%
12~14 (305~610) ≥0.01~0.025 (0.25~0.64)  ±0.0025 (±0.0635)
≥0.025 (0.64)  ±10%
24~30 (610~762) ≥0.016~0.03 (0.41~0.76)  ±0.003 (±0.0762)
≥0.03 (0.76)  ±10%
30~48 (762~1219) ≥0.04 (1.02)  ±10%
≥0.1875 (4.762)  ±10%

3. Chemical of MW30 Molybdenum Tungsten Alloy Sheet 2.0mm Thickness:




Quantitative analysis
Element W Mo Fe Si Ni C O N
Concentration(%) 27~33% remain 0.01 0.01 0.005 0.03 max 0.0025



0.002







4.Application of MW30  Molybdenum Tungsten Alloy Sheet 2.0mm Thickness:



main used for the disc of tungsten crucible of sapphire crystal growth furnace field



Other use applictaion:Alloys of molybdenum and metals play an important role in weapons manufacturing, as well as in cutting-edge fields such as missiles and rockets. Additionally, filament, the heating element of high temperature electric furnaces, is made from tungsten wire. The electronics industry makes extensive use of molybdenum metal, which is easily processed into wire, strip, sheet, rod, and other shapes. In order to support the heating wire in light bulbs, the grid of electron tubes, etc., molybdenum wire is employed as a tiny hook. Molybdenum and tungsten boats (for vacuum coating)
