Thin 99.95% Pure Tungsten Wire Rope W1 Grade Tungsten Wire For Vacuum Single Crystal Furnace high strength tungsten

Place of Origin China
Brand Name PRM
Certification ISO9001
Model Number custom
Minimum Order Quantity 5kgs
Price $50~200/kg
Packaging Details plywood case
Delivery Time 10~15work days
Payment Terms T/T
Supply Ability 2000kgs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name 99.95% Purity Tungsten Wire Rope Material Pure Tungsten
Purity Min.99.95% Grade W1
Surface Bright Common Size Φ2.5*L Φ2.0*L Φ1.8*L Φ3.0*L Φ3.5*L Φ4.0*L
High Light

99.95% Pure Tungsten Wire

,

custom Pure Tungsten Wire

,

W1 thin tungsten wire

Leave a Message
Product Description

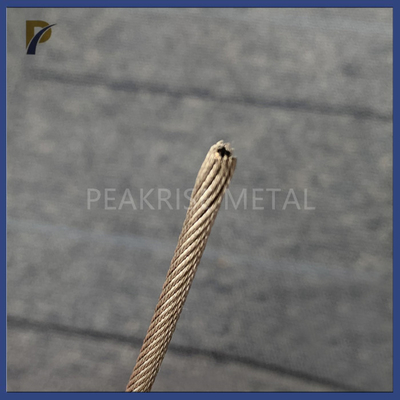

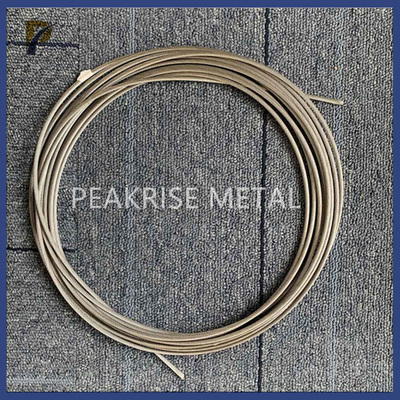

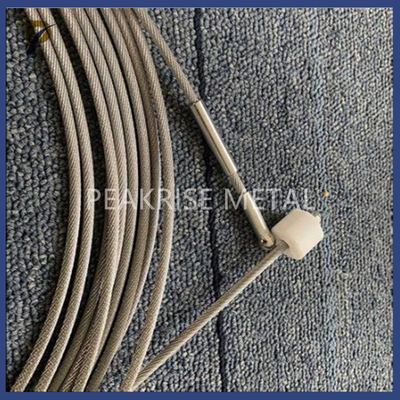

99.95% Purity Tungsten Wire Rope



1. Description of 99.95% Purity Tungsten Wire Rope:



Tungsten wire rope is created by twisting scheelite wire, which possesses both the properties of twisted wire and those of the metal tungsten. The original tungsten wire rope specification was 7*7*7, but it has since evolved to a winding method of 4*19*7. In China, the 19*7 standard specification is currently the most popular. The high temperature resistance, wear resistance, and tensile strength of tungsten wire rope are its distinguishing qualities. utilized mostly in the smelting, casting, single crystal furnace equipment, and other smelting industries. frequently used with molybdenum and tungsten crucibles.



2. Size of 99.95% Purity Tungsten Wire Rope:



Applications: Single Crystal Furnace Accessories
Purity W≥99.95%
Material Scheelite (W1 or WAl)





Diameter Stranded structure Tensile strength/load bearing Weight
mm   (kg) (g/meter)
Ø1.0 7×7
Ø1.8 7×19 465 32.4
Ø2.0 7×19 574 40
Ø2.5 7×19 896 62
Ø3.0 7×19 1290 90



3. Parameter of 99.95% Purity Tungsten Wire Rope:


Φ2.5 Cut off load (N): 6700.00 High temperature load (N): 2820.00


Φ2.0 Cut off load (N): 4010.20 High temperature load (N): 1800.00


Φ1.8 Cut off load (N): 3700.00 High temperature load (N): 1570.00



Other requirement,pls contact with us.
