4.5mm Pure Fine Tungsten Alloy Wire Rope For Single Crystal Furnace Characteristics Of Tungsten wire high quality

Place of Origin China
Brand Name PRM
Certification ISO9001
Model Number custom
Minimum Order Quantity 5kgs
Price $50~200/kg
Packaging Details plywood case
Delivery Time 10~15work days
Payment Terms T/T
Supply Ability 2000kgs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Diameter 4.5mm Pure Tungsten Wire Rope For Single Crystal Furnace Material Pure Tungsten
Purity Min.99.95% Density 19.3g/cm3
Diameter Φ2.0*L、 Φ2.5*L、Φ2.7*L、Φ3.0*L、 Φ3.5*L、 Φ4.0*L 、 Φ4.5*L、Φ5.0*L Grade W1
High Light

4.5mm Tungsten Alloy Wire

,

9.95% Tungsten Alloy Wire

,

custom fine tungsten wire

Leave a Message
Product Description

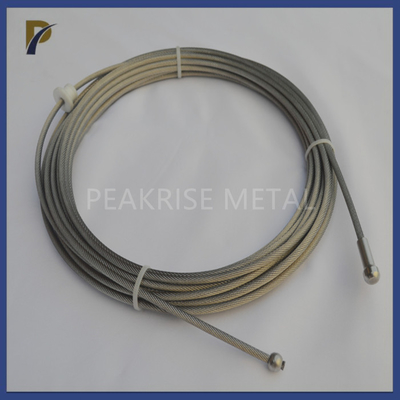

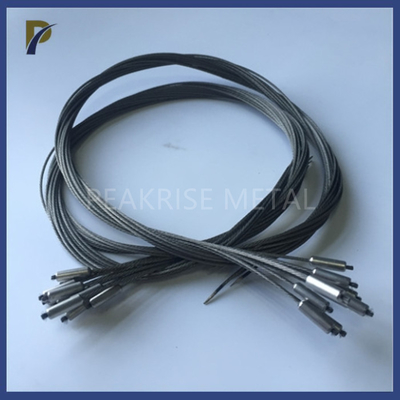

Diameter 4.5mm Pure Tungsten Wire Rope For Single Crystal Furnace



1. Description of Diameter 4.5mm Pure Tungsten Wire Rope For Single Crystal Furnace:



The main characteristics of tungsten wire rope are high temperature resistance and good load-bearing! At present, tungsten wire ropes are selected as crystal pulling ropes in the single crystal furnace industry. Among them, the diameter of 5.0 crystal pulling ropes is the largest in the market, and there are also tungsten wire ropes with diameters of 4.8, 4.5 and 4.0 in diameter.



2. Size and Parameter of Diameter 4.5mm Pure Tungsten Wire Rope For Single Crystal Furnace:



Diameter D/mm Length L/mm Structure

Normal temperature cut off load

(N)

High temperature cut off load

(N)

Common dia. Tolerance Common Length Tolerance
Φ2.5 ±0.10 >4000 ±15 19*7 6495 2684
Φ3.0 ±0.10 >4000 ±15 19*7 8240 3042
Φ3.5 ±0.10 >4000 ±15 19*7 11249 4651
Φ4 ±0.10 >4000 ±15 19*7 15230 6308
Φ4.5 ±0.10 >4000 ±15 19*7 19145 7917



Customers' needs can be taken into account when choosing the precise size.



3. Product advantages of Diameter 4.5mm Pure Tungsten Wire Rope For Single Crystal Furnace:



Tungsten wire rope has high rigidity, low torsional stress, non-rotating characteristics, high temperature resistance, non-magnetic, super soft, fatigue resistance, corrosion resistance, no extension, and high tensile strength.


4.5mm Pure Fine Tungsten Alloy Wire Rope For Single Crystal Furnace Characteristics Of Tungsten wire high quality 04.5mm Pure Fine Tungsten Alloy Wire Rope For Single Crystal Furnace Characteristics Of Tungsten wire high quality 1

Compay Profile:


Shaanxi Peakrise Metal Co., Ltd. is an rich experienced tungsten and molybdenum non-ferrous metal production enterprise,main products include tungsten-copper alloy, molybdenum-copper alloy, tungsten-molybdenum alloy, high specific gravity tungsten alloy, tungsten alloy, molybdenum alloy and other more than 100 kinds of products.In 2010, with the surge in export sales of products in this industry, we began to focus on foreign trade export business,provide high-quality non-ferrous metal products for the international market.After years of development,at present, it has become a comprehensive non-ferrous metal production enterprise integrating manufacturing and processing, material research and development, product testing, and stock inventory.The development of nearly ten years reminds us that high-quality products and services are always our top priority,at the same time, we continue to expand into new fields and provide high-quality products and services for more domestic and global customers.Products are exported to Taiwan, Ukraine, South Korea, the United States, Australia, Germany, Iran and other countries, and have established long-term good cooperative relations with customers. Our products are highly recognized and evaluated by customers.
