Diameter 5.0mm Tungsten Wire Electrode Cable Rope Properties Of Tungsten Wire For Vacuum Single Crystal Furnace

Place of Origin China
Brand Name PRM
Certification ISO9001
Model Number custom
Minimum Order Quantity 5kgs
Price $50~200/kg
Packaging Details plywood case
Delivery Time 10~15work days
Payment Terms T/T
Supply Ability 2000kgs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Common Size Diameter 5.0mm Tungsten Wire Rope Material Pure Tungsten
Purity Min.99.95% Density 19.3 G/cm3
Common Size Diameter 5.0mm High Temperature Load 7520
High Light

99.95% Tungsten Wire Electrode

,

5.0mm Tungsten Wire Electrode

,

tungsten Cable Rope

Leave a Message
Product Description

Common Size Diameter 5.0mm Tungsten Wire Rope



1. Information about 5.0mm diameter tungsten wire rope:



Twisting scheelite wire, which has the properties of tungsten metal and the tensile performance of twisted wire, produces tungsten wire rope. Early tungsten wire rope specifications were 7*7*7, whereas today's specifications call for a winding procedure of 4*19*7. In China right now, the 19*7 standard specification is the most popular. High temperature resistance, wear resistance, and tensile strength are characteristics of tungsten wire rope. mostly utilized in the smelting, casting, single crystal furnace equipment, and sapphire crystal growth sectors. frequently used in conjunction with tungsten and molybdenum crucibles. The greatest diameter available on the market is found in 5.0 crystal pulling ropes.



2. Diameter 5.0mm Tungsten Wire Rope Dimensions:



Diameter D/mm Length L/mm Structure

Normal temperature cut off load

(N)

High temperature cut off load

(N)

Common dia. Tolerance Common Length Tolerance
Φ2.5 ±0.10 >4000 ±15 19*7 6495 2684
Φ3.0 ±0.10 >4000 ±15 19*7 8240 3042
Φ3.5 ±0.10 >4000 ±15 19*7 11249 4651
Φ4 ±0.10 >4000 ±15 19*7 15230 6308
Φ4.5 ±0.10 >4000 ±15 19*7 19145 7917
Φ5.0 ±0.10 >4000 ±15 19*7 21500 7520
Φ6.0 ±0.10 >4000 ±15 19*7 26540 10610

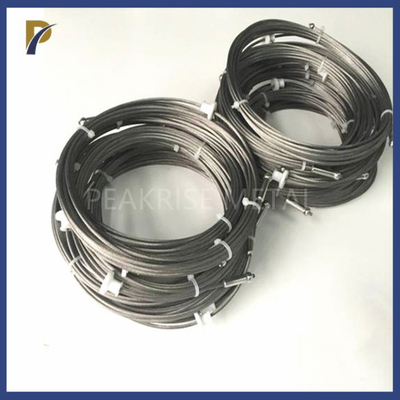

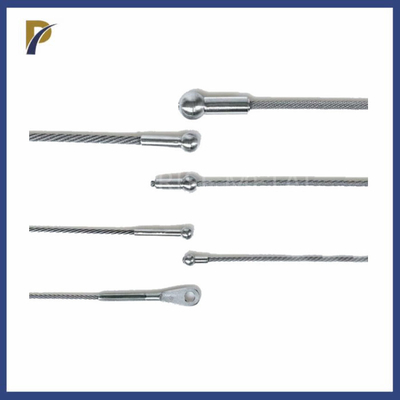

Diameter 5.0mm Tungsten Wire Electrode Cable Rope Properties Of Tungsten Wire For Vacuum  Single Crystal Furnace 0Diameter 5.0mm Tungsten Wire Electrode Cable Rope Properties Of Tungsten Wire For Vacuum  Single Crystal Furnace 1Diameter 5.0mm Tungsten Wire Electrode Cable Rope Properties Of Tungsten Wire For Vacuum  Single Crystal Furnace 2Diameter 5.0mm Tungsten Wire Electrode Cable Rope Properties Of Tungsten Wire For Vacuum  Single Crystal Furnace 3



High temperature resistance, wear resistance, and tensile strength are characteristics of tungsten wire rope. The primary applications for it are in the casting, single crystal furnace equipment, and other smelting sectors. In China right now, 19*7 conventional buildings are frequently used.
