WZ8 White Zirconium Tungsten Electrodes Welding Tungsten Rod White Tungsten Electrode For Aluminum TIG Welding Electrode

Place of Origin China
Brand Name PRM
Certification ISO9001
Model Number custom
Minimum Order Quantity 10pcs
Price $0.1~5.0/pc
Packaging Details Box
Delivery Time 7~10 work days
Payment Terms T/T
Supply Ability 20000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name WZ8 Electrode Zirconium Tungsten Electrode Material Ziconium And Tungsten
Added Impurity Zirconium Impurity Content 0.7-0.9%
Grade WZ8 Other Impurity <0.20%
Color Code White MOQ 10pcs
High Light

custom White Tungsten Electrodes

,

Zirconium Tungsten Electrodes

,

WZ8 welding tungsten rod

Leave a Message
Product Description

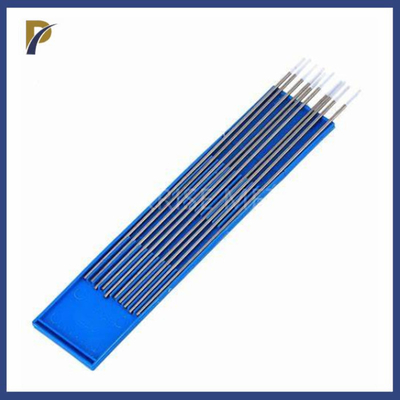

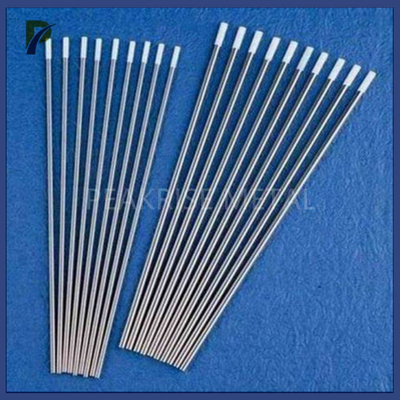

WZ8 Electrode Zirconium Tungsten Electrode

1. Description of WZ8 Electrode Zirconium Tungsten Electrode:

An electrode type called zirconium tungsten electrode was created to address the drawback of pure tungsten electrode, which is prone to melting and contamination of the workpiece when used in high-load welding. It is spherical to reduce tungsten penetration and has good corrosion resistance.

Zirconium tungsten electrodes contain a small amount of zirconium oxide (ZrO2). Zirconium tungsten electrodes often fall between pure tungsten electrodes and thoriated tungsten electrodes in terms of their welding properties. In AC welding, zirconium tungsten electrodes are the most commonly used, because they are easier to start arc than pure tungsten, and the arc beam is stable, and it can also prevent pollution very well, and the current carrying capacity is also good. The best non-radioactive tungsten electrode, in general, is zirconium tungsten electrode from the perspective of performance.


2. Basic Features of WZ8 Electrode Zirconium Tungsten Electrode:

Model

Added

Impurity

Impurity

quantity%

Other

Impurities%

Tungsten%

Electric

discharged

power

Color

Code

WZ3 ZrO2 0.2-0.4 <0.20

The rest

2.5-3.0 Brown
WZ8 ZrO2 0.7-0.9 <0.20

The rest

2.5-3.0 White



WZ8 White Zirconium Tungsten Electrodes Welding Tungsten Rod White Tungsten Electrode For Aluminum TIG Welding Electrode 0WZ8 White Zirconium Tungsten Electrodes Welding Tungsten Rod White Tungsten Electrode For Aluminum TIG Welding Electrode 1


3. Features of WZ8 Electrode Zirconium Tungsten Electrode:

Like pure tungsten electrodes, zirconium tungsten electrodes can only be welded in an alternating current environment. zirconium Tungsten  electrode has good welding performance in alternating current environment. Especially in the case of high load current, the superior performance of  zirconium tungsten  electrodes is irreplaceable by other electrodes.

During welding, the end of the zirconium tungsten  electrode can be kept in a spherical shape to reduce the phenomenon of tungsten infiltration, and has good corrosion resistance. Due to the emergence of other alternative products, the demand for zirconium tungsten  electrodes will tend to decrease. The main alternative is tungsten lanthanum electrodes.


4. Application of WZ8 Electrode Zirconium Tungsten Electrode:

Zirconium tungsten electrodes are also used for high-quality beam welding. Optimal applications requiring minimal tungsten contamination. For alternating current, zirconium tungsten electrodes are typically used; direct current is not advised. Magnesium-aluminum and its alloys are welded using arc current using zirconium tungsten electrodes.


The welding performance of zirconium tungsten electrode is located between pure tungsten electrode and thoriated tungsten electrode. It is a tungsten electrode product developed to improve the disadvantage that pure tungsten electrode is easy to melt and pollute the workpiece under high load welding conditions.

5. Size of WZ8 Electrode Zirconium Tungsten Electrode:


Type Diameter Length Content Welding Material

WZ3

WZ8

0.5mm 150mm/175mm

ZrO2

W: Remain

carbon steel

Stainless steel

copper

aluminum

1.0mm 150mm/175mm
1.6mm 150mm/175mm
2.0mm 150mm/175mm
2.4mm 150mm/175mm
3.0mm 150mm/175mm
3.2mm 150mm/175mm
4.0mm 150mm/175mm
4.8mm 150mm/175mm
5.0mm 150mm/175mm
6.0mm 150mm/175mm
7.0mm 150mm/175mm
8.0mm 150mm/175mm
10.0mm 150mm/175mm
12.0mm 150mm/175mm

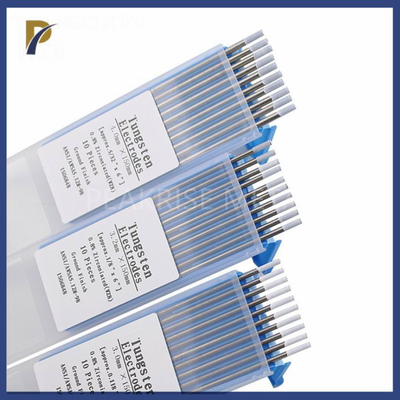

6. Package  of WZ8 Electrode Zirconium Tungsten Electrode:

10pcs packaged in one plastic box,100 plastic boxes packaged in one carton.


FAQ:



1.Are you a factory or trading company?

Our factory has been producing for more than ten years.



2.Are you able to provide samples? MOQ?
Yes, we can supply you free sample. MOQ:1kg or 1pc.



3.Do you accept customed?
Yes, we can processing  according to your  requirement or drawings .



4.Do you inspect the finishing products?

Yes, our QC will check each goods before delivery.



5.What is the shipping cost?

The key factors are weight, volume, packing size, and port of destination.



6.What's your delivery time?

If not, 1-2 days based on your quantity if it is in stock.
