WT10 Thorium Tig Electrodes Tungsten Rod 2.4 Mm Length 175mm Yellow Tungsten Electrode Thoriated Tungsten Electrodes

Place of Origin China
Brand Name PRM
Certification ISO9001
Model Number WT10
Minimum Order Quantity 1pc
Price $0.1~5.0/pc
Packaging Details Box
Delivery Time 7~10 work days
Payment Terms T/T
Supply Ability 20000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name WT10 Electrode Thorium Tungsten Electrode Diameter 2.4mm Length 175mm Material Thorium Tungsten
Thorium Content 1% Type WT10
Diameter 2.4mm Length 175mm
Surface Polished Sample Free
High Light

WT10 Thorium Tig Electrodes

,

175mm Thorium Tig Electrodes

,

Tungsten Rod 2.4 Mm

Leave a Message
Product Description

Electrode WT10 Tungsten Thorium Electrode Length 175mm, Diameter 2.4mm



1. WT10 Electrode Thorium Tungsten Electrode Diameter 2.4mm Description:



An electrode product called a thorium-tungsten electrode contains thorium oxide. Low electron work function, high crystallization temperature, superior electrical conductivity, mechanical cutability, etc. are some of its properties. It is widely used in the field of DC welding. Depending on the amount of dopant doping, the color-coded head of the electrode is also different, including yellow, red, purple and orange.

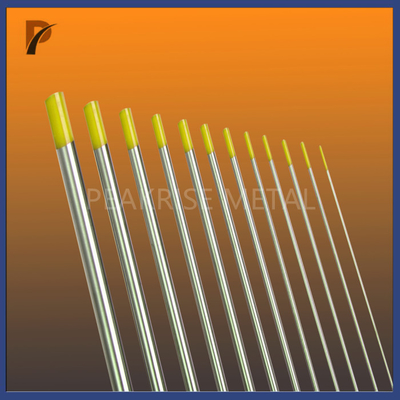

WT10 Thorium Tig Electrodes Tungsten Rod 2.4 Mm Length 175mm Yellow Tungsten Electrode  Thoriated Tungsten Electrodes 0WT10 Thorium Tig Electrodes Tungsten Rod 2.4 Mm Length 175mm Yellow Tungsten Electrode  Thoriated Tungsten Electrodes 1

2. WT10 Electrode fundamental characteristics 2.4 mm Diameter Thorium Tungsten Electrode :



Type Grade Oxide Additives other impurity W content Color code
Rare Earth Oxides Content %
Thorium tungsten electrode WT10 ThO2 1 <0.20 Remain Yellow
Thorium tungsten electrode WT20 ThO2 2 <0.20 Remain Red
Thorium tungsten electrode WT30 ThO2 3 <0.20 Remain Purple
Thorium tungsten electrode WT40 ThO2 4 <0.20 Remain Orange



3. Features of WT10 Electrode Thorium Tungsten Electrode Diameter 2.4mm:



Lower electronic function.



Higher at crystallization temperature.



Better electrical conductivity.



Good mechanical cutting performance.



Thorium tungsten electrode is a commonly used tungsten electrode material. Since it performs welding more effectively than pure tungsten, it is frequently employed in the DC welding industry.



Thorium-tungsten electrodes are easy to handle and work well even under overloaded currents.



Nevertheless, people are gradually turning their attention to other types of tungsten electrodes, such as tungsten cerium and tungsten lanthanum, not only because they show excellent performance in most applications, but also, importantly, they do not emit radiation harm. Because the thorium oxide in thorium tungsten electrodes produces a small amount of radiation, some welders are reluctant to approach them.



4. Application of WT10 Electrode Thorium Tungsten Electrode Diameter 2.4mm:



Thoriated tungsten electrodes are commonly used for DC negative electrodes or positive electrodes such as carbon, stainless steel, nickel alloys, and titanium alloys. They operate well, even at overloaded currents.


Thoriated tungsten electrodes are usually . Thoriated-tungsten electrodes with 2% thorium oxide typically provide better performance than 1% thoriated-tungsten electrodes. When using thoriated tungsten electrodes for AC welding, be fast and use caution so that the DC welding will react before the AC welding. The balls that are kneaded do not melt during AC welding, so the effect is not as good as the liquid balls.


Thoriated tungsten electrodes are usually used in the field of direct current welding, while pure tungsten electrodes are used in alternating current welding. During the welding process, workers should carefully read the instructions for use of thoriated tungsten electrodes



When welding with thorium tungsten electrodes, it is necessary to maintain a good ventilation environment, and the discarded welding joints should be properly disposed of.

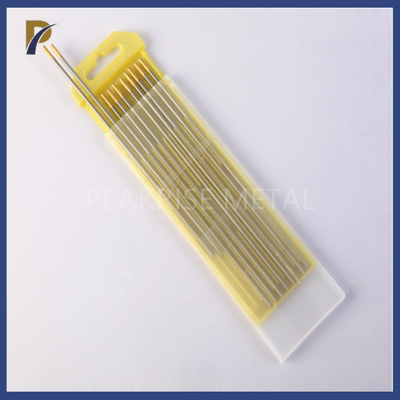

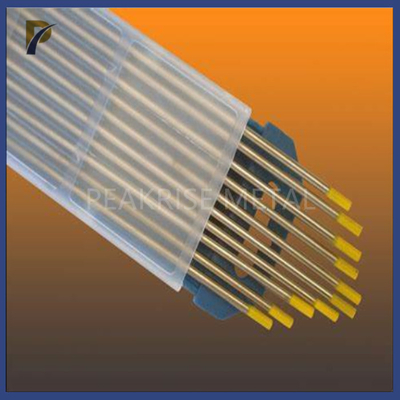

WT10 Thorium Tig Electrodes Tungsten Rod 2.4 Mm Length 175mm Yellow Tungsten Electrode  Thoriated Tungsten Electrodes 2WT10 Thorium Tig Electrodes Tungsten Rod 2.4 Mm Length 175mm Yellow Tungsten Electrode  Thoriated Tungsten Electrodes 3
