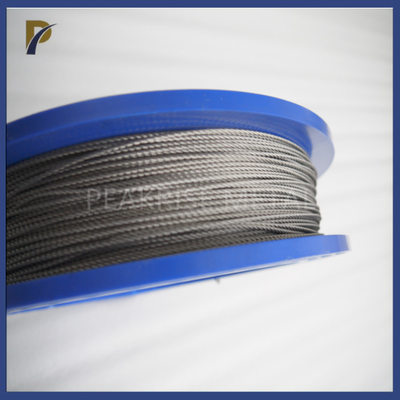

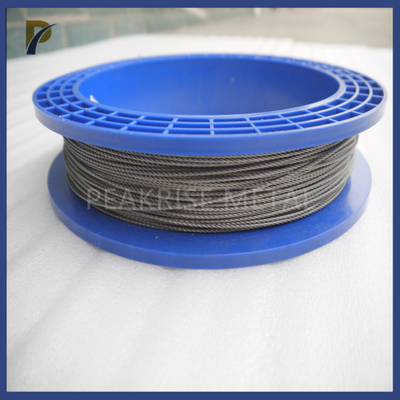

Purity 99.95% Pure Tungsten Wire Filament Heater 4 Strands Of Tungsten Wire For Vacuum Coating Tungsten Twisting Wire

Place of Origin China
Brand Name PRM
Certification ISO9001
Model Number Tungsten filament
Minimum Order Quantity 1kg
Price $80~150/kg
Packaging Details plywood case
Delivery Time 7~10 work days
Payment Terms T/T
Supply Ability 2000kgs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Purity 99.95% Pure Tungsten Filament Material Pure Tungsten
Purity 99.95% Density 19.3 G/cm3
Surface White,Black Diameter Min 0.025mm
High Light

Pure Tungsten Wire Filament

,

White Tungsten Wire Filament

,

99.95% tungsten wire heater

Leave a Message
Product Description

                                            Purity 99.95% Pure Tungsten Filament

1. Description of Purity 99.95% Pure Tungsten Filament:


A tungsten bar is forged and drawn to create tungsten filament.


Electric light sources like incandescent lamps and tungsten halogen lamps are the principal uses for tungsten filaments.



The tungsten wire used for various luminous bodies in bulbs also needs to be doped with a small amount of potassium, silicon and aluminum oxides during the smelting process. This tungsten wire is called Doped Tungsten Wire, also known as Doped Tungsten Wire. Tungsten wire 218 or tungsten wire that doesn't sag (Non-sagTungstenWire).


Various drawing dies are typically used to draw tungsten wire. The production of filament and high-speed cutting alloy steel is the primary objective. These materials are also used to make optical and chemical instruments, among other things.


Purity 99.95% Pure Tungsten Wire Filament Heater 4 Strands Of Tungsten Wire For Vacuum Coating Tungsten Twisting Wire 0Purity 99.95% Pure Tungsten Wire Filament Heater 4 Strands Of Tungsten Wire For Vacuum Coating Tungsten Twisting Wire 1
2. Diameter and Tolerance of Purity 99.95% Pure Tungsten Filament:


Diameter (µm) Weight (mg/200mm) 200mm Weight tolerance % Diameter tolerance%
0 I II I II
6<d<18 0.12-0.98 - ±3 ±4
18<d<40 >0.98-4.85 ±2 ±2.5 ±3
40<d<80 >4.85-19.39 ±1.5 ±2.0 ±2.5
80<d<300 >19.39-272.71 ±1.0 ±1.5 ±2.0
300<d<350 >272.71-371.19   ±1.0 ±1.5
350<d<500         ±1.5 ±2.0
500<d<1800         ±1.0 ±1.5


3. Chemical content of Purity 99.95% Pure Tungsten Filament:





Tungsten Filament Grade W content Impurity element content
Total content content of each element
W1 ≥99.95% ≤0.05% ≤0.01%


4. Application of Purity 99.95% Pure Tungsten Filament:

Electric light source and electric vacuum parts.

Industrial high temperature furnace refractory parts.

Used to make tungsten strands wire for vacuum evaporation.
