Bright Copper Tungsten Parts Connector CuW Alloy Copper Tungsten Tube Tungsten Copper Electrodes Resistance Welding

Place of Origin China
Brand Name PRM
Certification ISO9001
Model Number custom
Minimum Order Quantity 1pc
Price $5~150/pc
Packaging Details Plywood case
Delivery Time 7~10 work days
Payment Terms T/T
Supply Ability 20000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Tungsten Copper Alloy Connector Material Tungsten Copper Alloy
Grade 75WCu,80WCu,90WCu,60WCu,50WCu,55WCu Size As Per Customer's Drawing
Surface Bright Export Port Any Port In China
High Light

Bright Copper Tungsten Parts

,

Copper Tungsten Parts Connector

,

cuw alloy

Leave a Message
Product Description

Tungsten Copper Alloy Connector



1. Description Of Tungsten Copper Alloy Connector:



Tungsten-copper connectors are mostly found in pipes, which connect the most vulnerable parts of the pipe by nesting or welding to improve performance. In addition, there are many forms such as tungsten copper rivets, tungsten copper bolts, tungsten copper electrodes, pins and so on.



2. Size and Performance Of Tungsten Copper Alloy Connector:



 Tungsten Copper Alloy connector process as per customer's drawing.





Performance
Density
g/cm3
Thermal expansion coefficient 10-6/℃
Thermal conductivity w/(m·k)
Heat capacity J/(kg·℃)
Elastic ModulusGPa
Poisson density
Melting
point ℃
Strength
MPa
W
19. 25
4. 5
174
136
411
0. 28
3410
550
Cu
8. 92
16. 6
403
385
145
0. 34
1083
120



Grade
Density (g/cm3)
Thermal conductivity
Thermal expansion
coefficient
WCu10
17.0
160
6.2
WCu15
16.2
170
6.9
WCu20
15.4
180
7.4
WCu25
14.7



200
8.0
WCu30
14.1
220
8.8



3. Principle Of Tungsten Copper Alloy Connector:



1). Shape locking: It is the mutual clamping effect formed by the shape of the connected parts or the additional connecting parts, and the force that hinders the relative movement between the connected parts is generated on the joint surface;



2). Friction locking: two or more connected parts are pressed together, and positive pressure is generated on the joint surface. When there is a relative movement trend between the connected parts, the relative movement between the connected parts is blocked on the joint surface. friction force or friction torque;



3). Material locking: use the molecular bonding force between the material and the connected parts to connect them, such as welding and gluing.

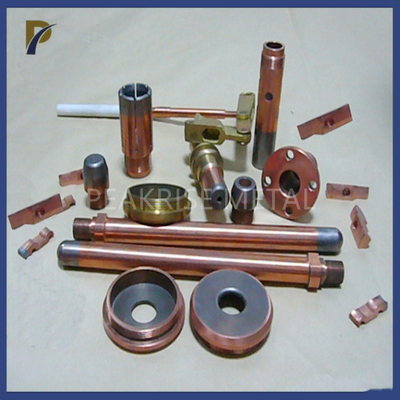

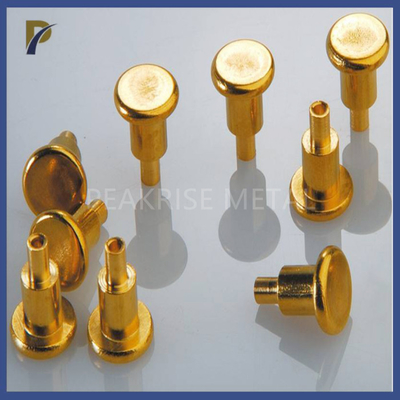

Bright Copper Tungsten Parts Connector CuW Alloy Copper Tungsten Tube Tungsten Copper Electrodes Resistance Welding 0Bright Copper Tungsten Parts Connector CuW Alloy Copper Tungsten Tube Tungsten Copper Electrodes Resistance Welding 1



4.Classification Of Tungsten Copper Alloy Connector:



Tungsten copper alloy connectors can be divided into three classification:


1). Rivets: refers to a short cylindrical rod with a semi-circular nail head at one end, insert it into each steel plate or steel nail hole to be connected, and press or hammer the protruding end into a second nail head , which can be divided into four types: semi-round head, high head, submerged head, and semi-submerged head;

2). Bolts: usually cylindrical rods with square or hexagonal heads at one end and threads at the other end, equipped with nuts and washers, which can fasten steel components or steel-wood components together, which can be divided into rough and Two kinds of refined bolts;

3). Welding rods: rod-shaped metal strips that are melted and filled at the junction of welding parts during welding. It is coated with anti-oxidation (alloying, etc.) flux. According to the mechanical properties and chemical composition of the metal material to be welded, as well as the requirements for the welding seam and the process conditions of the equipment, different types and types of electrodes are selected.
