High Quality Tungsten Iridium Alloy Flow Mouth For Quartz Glass Melting

Place of Origin China
Brand Name PRM
Certification ISO9001
Model Number custom
Minimum Order Quantity 1kg
Price Negotiate
Packaging Details Plywood case
Delivery Time 7~10 work days
Payment Terms T/T
Supply Ability 2000kgs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Tungsten-Iridium Alloy Flow Mouth For Quartz Glass Melting Material Tungsten Iridium Alloy
Shape Funnel-Type Common Size Ø66x100,Ø88x80
Surface Bright Export Port Any Port In China
High Light

Tungsten Iridium Alloy Flow Mouth

,

Glass Melting Tungsten Iridium Alloy

Leave a Message
Product Description

For melting quartz glass, a tungsten-iridium alloy flow mouth is used.



1. Description Of Tungsten Iridium Alloy Flow Mouth For Quartz Glass Melting:



One of the uses of the tungsten-iridium flow mouth  is as a key discharge component in the melting of quartz glass. The tungsten alloy fluid has excellent corrosion resistance, high temperature resistance, and accurate pipe diameter outflow performance because of the excellent bonding process between the iridium tube and the tungsten matrix, ensuring that the tungsten alloy fluid can lessen the erosion of the iridium tube when the high temperature slurry flows out. Because of this, it also makes sure that the quartz glass melting furnace has a longer lifespan and, in the end, satisfies the demands of the furnace body material (corrosion resistance, high purity, longer lifespan, etc.) in the production and manufacturing process of quartz glass.



Quartz glass is frequently used in the manufacturing of semiconductors, laboratory equipment, optical instruments, and chemical instruments that can withstand high temperatures and corrosion, electronics, the chemical industry, metallurgy, national defense, and other industries. The use of tungsten-iridium flow mouth in quartz glass melting will increase together with the rise in demand for quartz glass in these sectors.

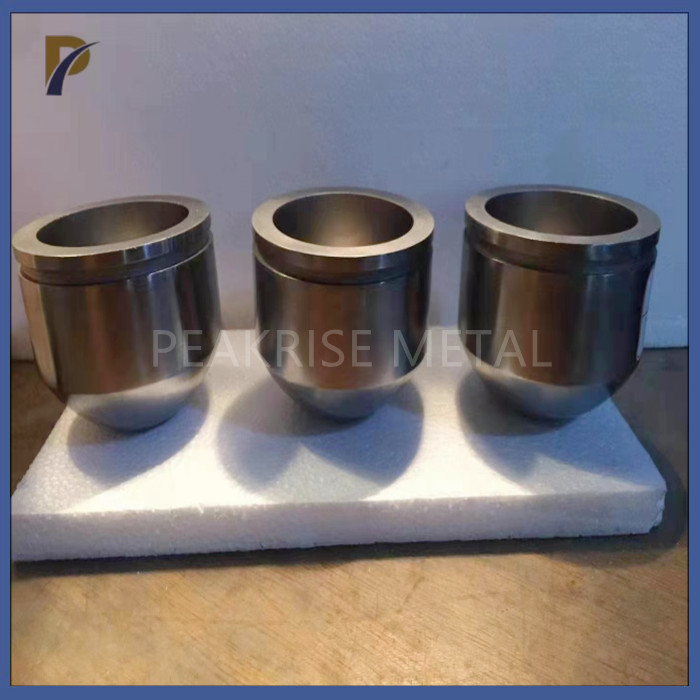

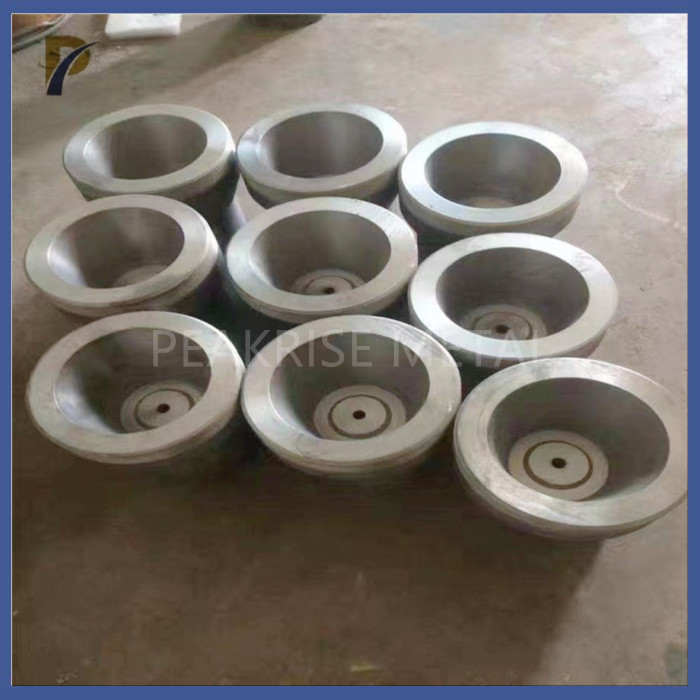

High Quality Tungsten Iridium Alloy Flow Mouth For Quartz Glass Melting 0High Quality Tungsten Iridium Alloy Flow Mouth For Quartz Glass Melting 1



2. Common Size Of Tungsten Iridium Alloy Flow Mouth For Quartz Glass Melting:



Flow Mouth For Quartz Glass Melting Size Below Tungsten Iridium Alloy:



Tungsten Base Specifications (mm) Iridium Tube Specifications (mm)
φ66x100
φ88x80
Outdiameter (φ) Length (L) Wall Thickness (mm)
5.5 27±1 0.6/0.7/0.8
6.0
6.5
7.0
8.0
10.0
12.0

Dimensions and tolerances: (mm)

Tungsten Base Specifications φ66x100 φ88x80
Out diameter (D) 66 88
Tolerance of Out diameter ±3 ±5
Inner diameter  (d) 58 72
Inner diameter tolerance ±2 ±2
Top arc  R 10~15 20~25
Included angle θ 36° 45°
 Total height H 100 80
Total height tolerance ±2 ±2
Wall height h1 55 46
Wall height tolerance ±2 ±2
Top height  h2 24 24
Top height tolerance ±1 ±1



3. Use Of A Tungsten Iridium Alloy Flow Mouth For Melting Quartz Glass:



In the glass and ceramic industry, tungsten-iridium flow mouth are very important components in the micro-production of ceramics. Tungsten has a large specific gravity, high hardness, excellent thermal and electrical conductivity, heat resistance, wear resistance, corrosion resistance, low expansion and dimensional stability at high temperatures. Among all metals, tungsten has the highest melting point (up to 3380 degrees Celsius), the lowest vapor pressure, and a tensile strength of 1650 degrees Celsius. And its anti-corrosion performance is very good, most inorganic acids can only cause a small corrosive effect on it.



Therefore, it is ideal to use tungsten to make heavy alloys. The alloy made of tungsten and iridium has further improved wear resistance, hardness, density and heat resistance, thus better ensuring the consistency of the product. It is these valuable properties that make it an indispensable equipment component in today's high-tech crystal glass industry.



4.Tungsten Iridium Alloy Flow Mouth Support and Services:



Our company provides comprehensive support and services for Tungsten Iridium Alloy Flow Mouth products. Whether you have questions, need assistance, or require any services related to these products, we are here to help. Our support and services include:



Product Information: We can provide detailed information about Tungsten Iridium Alloy Flow Mouth, including specifications, applications, and technical data. If you have any specific questions about the product, feel free to ask.



Customization: We offer customization services to tailor the Tungsten Iridium Alloy Flow Mouth to your specific requirements. If you need a particular size, shape, or design, we can work with you to create a customized solution.



Technical Support: Our team of experts is available to provide technical support and guidance. If you encounter any issues or need assistance with installation, maintenance, or troubleshooting, we can offer prompt assistance.



Product Testing and Certification: We ensure that our Tungsten Iridium Alloy Flow Mouth products meet high-quality standards. We conduct rigorous testing and provide necessary certifications to ensure the performance and reliability of our products.



5. Shipping and Packaging:



We understand the importance of safe and efficient shipping and packaging. When you place an order for Tungsten Iridium Alloy Flow Mouth, you can expect the following:



Secure Packaging: We utilize sturdy and protective packaging materials to ensure that your order arrives undamaged. We take precautions to safeguard the product during transit.



Efficient Shipping: We work with reliable shipping partners to ensure timely delivery of your order. The shipping method will depend on your location and preferences. Expedited shipping options may also be available upon request.



Tracking and Updates: Once your order is shipped, we provide tracking information so you can monitor the progress and estimated delivery date. You will receive regular updates on the status of your shipment.

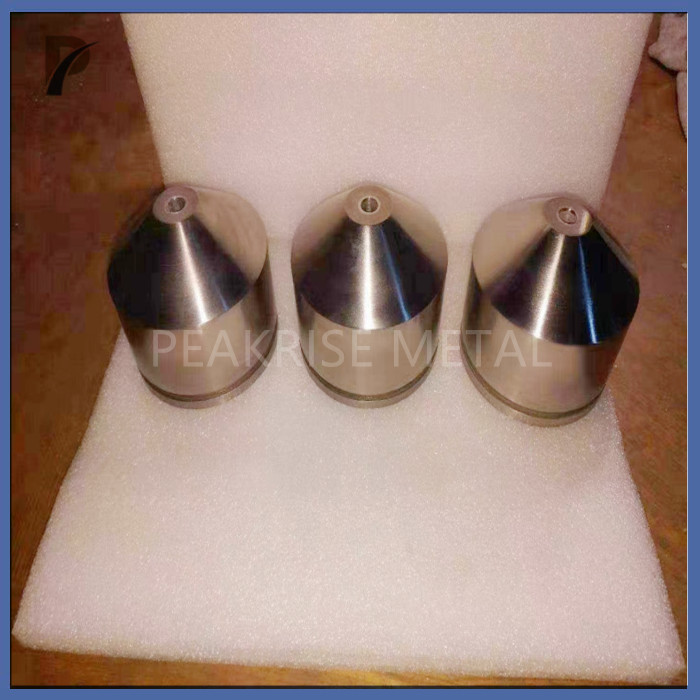

High Quality Tungsten Iridium Alloy Flow Mouth For Quartz Glass Melting 2



6. Frequently Asked Questions (FAQ):



Q: What is Tungsten Iridium Alloy Flow Mouth used for?
A: Tungsten Iridium Alloy Flow Mouth is commonly used in industrial applications, such as flow control devices, nozzles, and high-temperature environments where corrosion resistance and durability are required.



Q: Can I customize the Tungsten Iridium Alloy Flow Mouth?
A: Yes, we offer customization services for Tungsten Iridium Alloy Flow Mouth. Please contact our team to discuss your specific requirements.



Q: How do I install and maintain the Tungsten Iridium Alloy Flow Mouth?
A: We provide detailed installation and maintenance instructions with our products. If you need further assistance, our technical support team is available to guide you through the process.



Q: What certifications do your Tungsten Iridium Alloy Flow Mouth products have?
A: Our Tungsten Iridium Alloy Flow Mouth products undergo rigorous testing and are often certified for quality and performance standards. Please inquire about the specific certifications relevant to your needs.



Q: How long does shipping take?
A: The shipping duration depends on your location and the shipping method chosen. We strive to provide estimated delivery times during the ordering process and will provide tracking information for you to monitor the progress.

If you have any further questions or require additional information, please feel free to ask.
