50%Mo Molybdenum Tungsten Alloy Tube For Out Diameter 100mm Sintered MoW Alloy Tube Molybdenum Tungsten Alloy Ring Tube

Place of Origin China
Brand Name PRM
Certification ISO9001
Model Number custom
Minimum Order Quantity 5kgs
Price $50~200/kg
Packaging Details plywood case
Delivery Time 15~20 work days
Payment Terms T/T
Supply Ability 1000kgs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name 50%Mo Molybdenum Tungsten Alloy Tube For OutDiameter 100mm Mo Content 50%(wt%)
W Content 50%(wt%) Grade 50%Mo50%W Alloy
Outdiameter 26~200 Mm Wall Thickness 5~30 Mm
Length ≤1300 Mm Surface Bright
High Light

50%Mo Tungsten Alloy Tube

,

Molybdenum Tungsten Alloy Tube

,

100mm Tungsten Alloy Tube

Leave a Message
Product Description

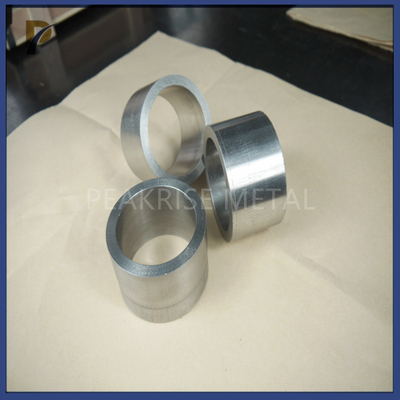

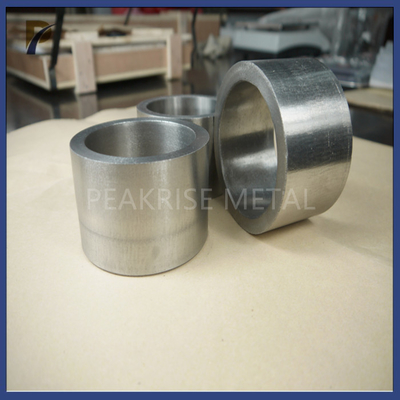

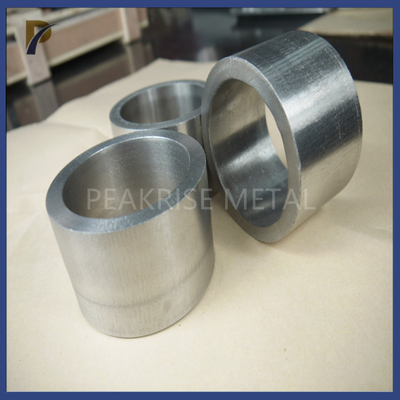

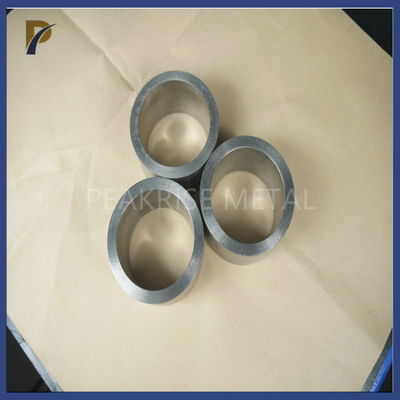

 50%Mo Molybdenum Tungsten Alloy Tube



1. Product Description of Metal Alloys Molybdenum Tungsten Alloy Tube diameter 100mm:



Tungsten-molybdenum alloy pipes containing 50% molybdenum (mass) have excellent corrosion resistance to liquid zinc, and are used to manufacture agitators, pipe and vessel liners and other components in the zinc smelting industry. Tungsten-molybdenum alloy has good high-temperature strength, similar performance to tungsten and smaller specific gravity than tungsten, so it can be used as high-temperature components in rockets and missiles, filaments of electron tubes, parts and other high-temperature materials under corresponding high-temperature conditions.



2.  Size of Metal Alloys Molybdenum Tungsten Alloy Tube diameter 100mm:



Out diameter

Wall thickness

Height

26~200 mm 5~30 mm ≤1300 mm



50%Mo Molybdenum Tungsten Alloy Tube For Out Diameter 100mm Sintered MoW Alloy Tube Molybdenum Tungsten Alloy Ring Tube 050%Mo Molybdenum Tungsten Alloy Tube For Out Diameter 100mm Sintered MoW Alloy Tube Molybdenum Tungsten Alloy Ring Tube 1



Or we can process as per customer request.





3. Chemical of Metal Alloys Molybdenum Tungsten Alloy Tube For diameter 100mm:



Quantitative analysis
Element W Mo Fe Si Ni C O N
Concentration(%) 48~53% remain 0.01 0.01 0.005 <0.03 0.0025



0.002




4. Product Features of 50%Mo Molybdenum Tungsten Alloy Tube diameter 100mm:



A. High elastic modulus
B. Very low coefficient of thermal expansion (important for metal-ceramic structures, metal-semiconductor structures, metal- graphite structures. For example, in the field of LEDs, future V-LEDs, which are considered high-power LEDs, will use molybdenum or molybdenum Copper material as base material)
C. Excellent electrical conductivity (metallic properties)
D. Excellent thermal conductivity (metallic properties)
E. Selective erosion resistance



5. Company advantage of 50%Mo Molybdenum Tungsten Alloy Tube For Outdiameter 100mm:



The technology is mature and the technology is stable.



Product performance continues to improve.



A professional technical team can customize a complete set of tungsten-molybdenum alloy material application solutions for you.



Shaanxi Peakrise Metal Co.,Ltd produced Molybdenum Tungsten,MoCu alloy,WCu alloy refractory metal,the type have sheet,rod,tube,wire,crucible and custom process parts.



50%Mo Molybdenum Tungsten Alloy Tube For Out Diameter 100mm Sintered MoW Alloy Tube Molybdenum Tungsten Alloy Ring Tube 250%Mo Molybdenum Tungsten Alloy Tube For Out Diameter 100mm Sintered MoW Alloy Tube Molybdenum Tungsten Alloy Ring Tube 3





50%Mo Molybdenum Tungsten Alloy Tube For Out Diameter 100mm Sintered MoW Alloy Tube Molybdenum Tungsten Alloy Ring Tube 4
