Custom WAL1 Tungsten Wire Rope For Used Electric Light Source Electric Light Parts Applications Of Tungsten

Place of Origin China
Brand Name PRM
Certification ISO9001
Model Number custom
Minimum Order Quantity 1kg
Price $50~200/kg
Packaging Details Plywood case
Delivery Time 7~10 work days
Payment Terms T/T
Supply Ability 2000kgs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Tungsten Wire Rope For Used Electric Light Source Material W1,WAL1
Purity 99.95% Density 19.3 G/cm3
Melting Point 3422°C Boiling Point 5930°C
Molar Heat Capacity 24.27 J/(mol·K)
High Light

Custom Tungsten Wire Rope

,

WAL1 Tungsten Wire Rope

,

Electric Light Source Tungsten Rope

Leave a Message
Product Description

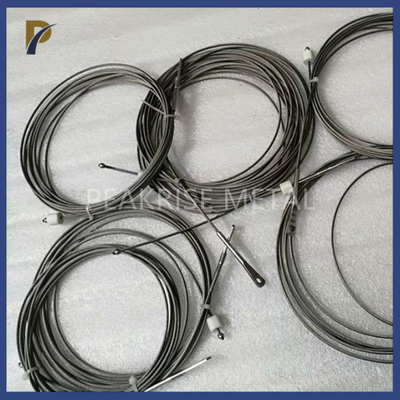

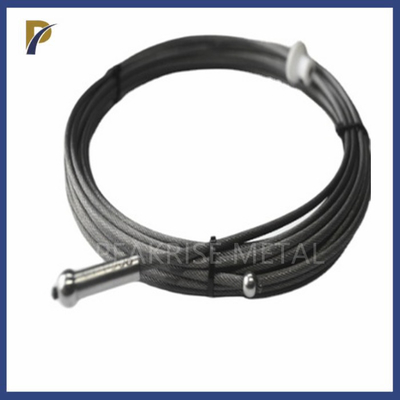

Used Electric Light Source Tungsten Wire Rope



1. Description of Tungsten Wire Rope For Used Electric Light Source:



In high-temperature furnaces, tungsten wire is frequently used to make refractory materials, heating elements, electric vacuum components, and electric light source parts. Tungsten wire is thin, strong under tension, and temperature-resistant.

Advanced Refractory Metals concentrates on offering tungsten wire rope of the highest caliber to clients globally at cost-effective prices with prompt shipping.

2.Size of Tungsten Wire Rope For Used Electric Light Source:

Diameter D/mm Length L/mm Structure

Normal temperature cut off load

(N)

High temperature cut off load

(N)

Common dia. Tolerance Common Length Tolerance
Φ2.5 ±0.10 >4000 ±15 19*7 6495 2684
Φ3.0 ±0.10 >4000 ±15 19*7 8240 3042
Φ3.5 ±0.10 >4000 ±15 19*7 11249 4651
Φ4 ±0.10 >4000 ±15 19*7 15230 6308
Φ4.5 ±0.10 >4000 ±15 19*7 19145 7917
Φ5.0 ±0.10 >4000 ±15 19*7 21500 7520
Φ6.0 ±0.10 >4000 ±15 19*7 26540 10610



Custom WAL1 Tungsten Wire Rope For Used Electric Light Source Electric Light Parts Applications Of Tungsten 0Custom WAL1 Tungsten Wire Rope For Used Electric Light Source Electric Light Parts Applications Of Tungsten 1



3. Applications Of Tungsten Wire Rope For Used Electric Light Source:



* Suitable for making heating wires
*
Twisted wires for vacuum-coating films
* For the electric light source, tungsten wire
* Electric light parts
* Electronic device

4. At normal temperature, metal tungsten materials exhibit high strength, high hardness, and brittleness performance characteristics. Even if they are drawn into thin filaments with a small diameter, they have a certain degree of flexibility, but they are still brittle materials. Only shows a certain plasticity, and maintains good high temperature strength properties. As a result, the following considerations should be made when utilizing tungsten wire rope:



1). Before use, check the appearance and surface quality of the tungsten wire rope, and check whether there are any traces of hard damage, hard knots, hard folds, etc. from the impact of hard objects. Check to see that the tungsten wire rope is wound with an acceptable and even amount of tension. If you find any of the above problems, you should stop using it immediately.



2). The tungsten wire rope should be handled with care during installation and use. When entanglement occurs, it should follow the detouring direction and untie it slowly. Do not use brute force to forcibly pull it, which will cause a dead break.



3). When loading the furnace, releasing the furnace and opening and closing the furnace door, To prevent collision, extrusion, and damage to the tungsten wire rope, it is required to wait until the mechanical component of the equipment has reached the designated position before moving forward.



4).The internal structure of the tungsten wire rope has changed after being utilized at high temperatures, and its brittleness has risen at room temperature. Therefore, when loading and unloading, it is necessary to lightly tap the weights, chucks and other components connected to the tungsten wire rope to avoid Severe vibrations and blows. So as not to damage the internal structure of the tungsten wire rope, resulting in broken wire.



5). When the tungsten wire rope is rotated in use, its rotation direction should follow the detouring direction during weaving, otherwise the tungsten wire rope will be loose or twisted, resulting in broken wire.



6). When the furnace is installed in the next furnace, carefully check whether the tungsten wire rope has caused the above-mentioned problems after use before starting the furnace. It can only be used when the tungsten wire rope is found to be in good condition after inspection. The tungsten wire rope needs to be changed if not in order to stop it. unexpected.
