ASTM B702 Copper Tungsten Alloy High Voltage Discharge Electrode Copper Tungsten Electrode Material Copper Tungsten Rod

Place of Origin China
Brand Name PRM
Certification ISO9001
Model Number WCu alloy
Minimum Order Quantity 1pc
Price $5~200/pc
Packaging Details Plywood case
Delivery Time 7~10 work days
Payment Terms T/T
Supply Ability 5000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Copper-Tungsten Alloy High Voltage Discharge Electrode Material Tungsten Copper Alloy
Grade 75WCu,80WCu,90WCu,70WCu,85WCu Etc. Size As Per Customer's Drawing
Surface Bright Standard ASTM B702
MOQ 1pc Export Port Any Port In China
High Light

Discharge Electrode Copper Tungsten Alloy

,

High Voltage Copper Tungsten Alloy

,

Copper Tungsten Heat Sink

Leave a Message
Product Description

Copper-Tungsten Alloy High Voltage Discharge Electrode



1. Application Of Copper-Tungsten Alloy High Voltage Discharge Electrode:



Copper-tungsten alloy high-voltage discharge electrodes are mainly used in:



1. Electrode material: It is applied to high hardness materials and flat sheet electrode discharge machining. The surface finish of electro-processed products is high, high precision, low loss, and effective saving.



2. Contact materials: arc contacts and vacuum contacts of high and medium voltage switches or circuit breakers, circuit board welding and electrical contact points.



3. Welding materials: submerged arc welding machine, gas shielded welding machine welding nozzle, wireless resistance factory (production of carbon film resistance, metal coating resistance) resistance butt welding machine butt welding material (copper-tungsten alloy welding disc).



4. Guide material: various wire rolled steel, used for guiding and protecting materials.



2. Specification Of Copper-Tungsten Alloy High Voltage Discharge Electrode:



70W30Cu type:


70W30Cu type tungsten-copper alloy electrode is a composite material refined through static pressure molding, high-temperature sintering, and copper infiltration by utilizing the excellent metal properties of high-purity tungsten powder and the high conductivity and fluidity of copper powder with high purity.


75W25Cu type:


75W25Cu type tungsten-copper alloy electrode is a composite material of tungsten and copper, which has the excellent characteristics of copper's thermal performance and low expansion. 75%W tungsten-copper alloy electrode has the characteristics of high heat resistance, high thermal conductivity and low expansion, so 75%W tungsten-copper alloy electrode is often used in resistance welding, electrical contact and radiator.


80W20Cu type:


The tungsten content of the 80W20Cu type tungsten-copper alloy electrode is 80%, and the grade is expressed as CuW80. The hardness of CuW80 is about 98HRB, and the density is about 15.58g/cm3. The thermal expansion characteristics of tungsten copper composite materials are similar to those of silicon carbide, aluminum oxide and beryllium oxide, and are used for substrates and chips.


85W15Cu type:


The 85W15Cu type tungsten-copper alloy electrode is a two-phase structure pseudo-alloy mainly composed of tungsten and copper elements. Powder alloy technology for production.



3.Main properties of tungsten copper for electronic applications:



Type
Density (g/cm3)
HB(MPa)
Conductivity
(% IACS)
WCu10
16.8-17.2
≥2550
> 27
WCu20
15.2-15.6
≥2160
> 34
WCu25
14.5-15.0
≥1940
> 38
WCu30
13.8-14.4
≥1720
> 42

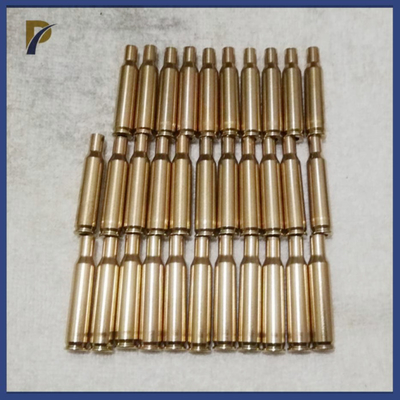

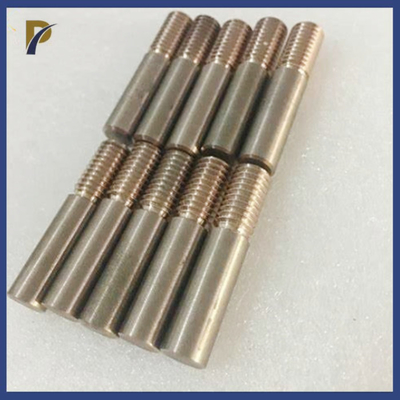

ASTM B702 Copper Tungsten Alloy High Voltage Discharge Electrode Copper Tungsten Electrode Material Copper Tungsten Rod 0ASTM B702 Copper Tungsten Alloy High Voltage Discharge Electrode Copper Tungsten Electrode Material Copper Tungsten Rod 1




Please click below button for learn more our products.

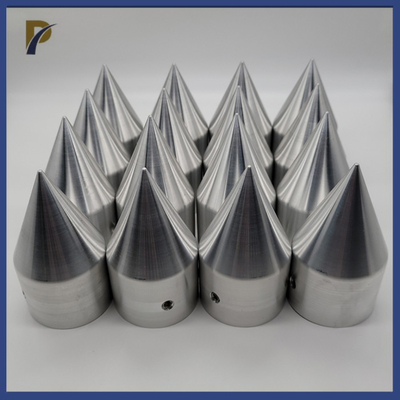

ASTM B702 Copper Tungsten Alloy High Voltage Discharge Electrode Copper Tungsten Electrode Material Copper Tungsten Rod 2
