18.5g/Cm3 Density Tungsten Copper Alloy Rod Diameter 30mm For Electronic Industry

Place of Origin China
Brand Name PRM
Certification ISO9001
Model Number custom
Minimum Order Quantity 1kg
Price $50~80/kg
Packaging Details Plywood case
Delivery Time 7~10 work days
Payment Terms T/T
Supply Ability 2000kgs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name China Factory 18.5g/Cm3 Density Diameter 30mm Tungsten Copper Alloy Rod For Electronic Industry Material Tungsten Copper Alloy
Grade 75WCu,80WCu,90WCu,70WCu,60WCu Diameter 1~100mm
Length <500mm Density 18.5g/cm3
Surface Bright Melting Point 3410℃
High Light

Electronic Tungsten Copper Alloy Rod

,

18.5g/Cm3 Tungsten Copper Alloy Rod

,

Tungsten Copper Alloy Rod 30mm

Leave a Message
Product Description

18.5g/Cm3 Density Diameter 30mm Tungsten Copper Alloy Rod For Electronic Industry


1. Information Of 18.5g/Cm3 Density Diameter 30mm Tungsten Copper Alloy Rod For Electronic Industry:

Tungsten copper alloy rod is a high-performance alloy material composed of two metal materials, tungsten and copper. Its production process is to mix tungsten and copper according to a certain ratio and then sinter at high temperature. Tungsten-copper alloy rod has high hardness and excellent electrical and thermal conductivity, as well as good corrosion resistance and wear resistance. Therefore, it is widely used in electronics, aviation, military and other fields under high temperature, high pressure, high strength and other harsh environments.

2.Technical Parameters Of 18.5g/Cm3 Density Tungsten Copper Alloy Rod:


Diameter1~100mm
Length<500mm
Density:18.5g/cm3
Melting point:about 3410℃
Hardness:HB120-150
Tensile strength:600-800MPa
Yield strength 350-500MPa
Conductivity 160-180% IACS
Thermal conductivity 200-250W/(m·K).



We can also customize production according to customer requirements. Its surface can be treated by polishing, sandblasting, nickel plating, etc. to improve its surface finish and corrosion resistance.

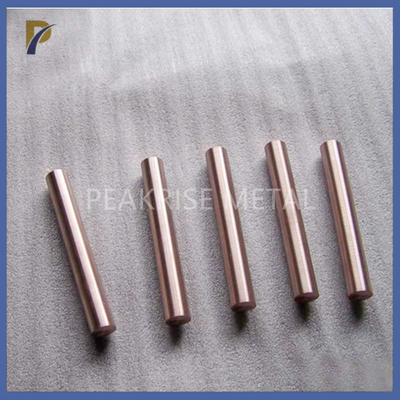

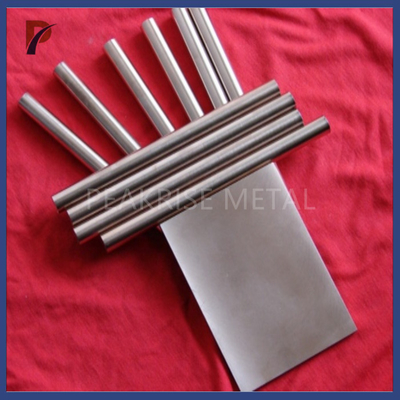

18.5g/Cm3 Density Tungsten Copper Alloy Rod  Diameter 30mm For Electronic Industry 018.5g/Cm3 Density Tungsten Copper Alloy Rod  Diameter 30mm For Electronic Industry 1

3. Advantages of tungsten copper alloy rods are as follows:
1). High hardness: Tungsten copper alloy rod has high hardness and strength, and can maintain its stability in harsh environments such as high strength and high pressure.
2). Good electrical and thermal conductivity: Tungsten-copper alloy rods have excellent electrical and thermal conductivity, and are ideal materials for many electronic and electrical components.
3). Good corrosion resistance: Tungsten-copper alloy rods have good corrosion resistance and can be used in some corrosive environments such as acid and alkali.
4). Excellent wear resistance: Tungsten-copper alloy rods have high hardness and strength, which can effectively resist wear and friction, thereby prolonging their service life.
5). Low thermal expansion coefficient: The thermal expansion coefficient of tungsten copper alloy rod is lower than that of pure copper, so it is not easy to deform at high temperature, and is suitable for high temperature processing and manufacturing.

4.Use Of 18.5g/Cm3 Density Tungsten Copper Alloy Rod:

Electronic device manufacturing: Tungsten copper alloy rods have excellent electrical conductivity and can effectively transmit current, so they are widely used in electronic device manufacturing, such as packaging of semiconductor devices, chip thermal inserts, etc. Tungsten copper alloy rods are often used in the manufacture of electrical contact materials, electrodes, relay contacts and other components.

Machining: Due to its excellent wear resistance and hardness, tungsten copper alloy rods are widely used in machining, cutting, grinding and other fields.

Aerospace: Tungsten copper alloy rods have high temperature strength and stability, so they are used in the aerospace field to manufacture aeroengine blades, missile parts, etc.

In short, tungsten copper alloy rod is a high-performance alloy material with excellent performance and wide application. With the continuous development of science and technology and the continuous progress of industry, its application field will continue to expand.

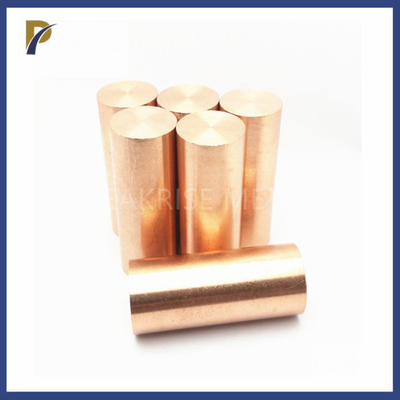

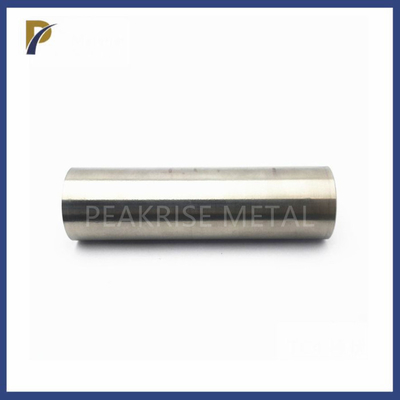

18.5g/Cm3 Density Tungsten Copper Alloy Rod  Diameter 30mm For Electronic Industry 218.5g/Cm3 Density Tungsten Copper Alloy Rod  Diameter 30mm For Electronic Industry 3





Please click below button for learn more our products.

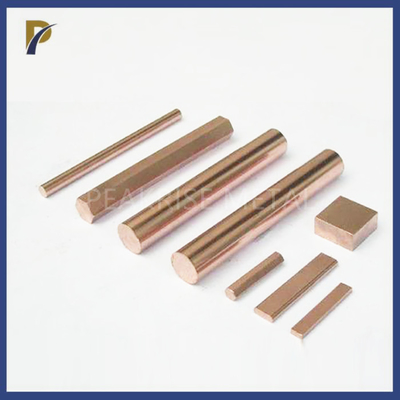

18.5g/Cm3 Density Tungsten Copper Alloy Rod  Diameter 30mm For Electronic Industry 4

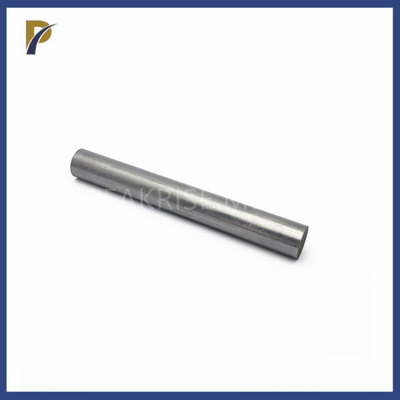

18.5g/Cm3 Density Tungsten Copper Alloy Rod  Diameter 30mm For Electronic Industry 5
