WCu30 WCu20 Copper Tungsten Metal Alloys Electrode Rod With High Hardness

Place of Origin China
Brand Name PRM
Certification ISO9001
Model Number custom
Minimum Order Quantity 1kg
Price $50~80/kg
Packaging Details Plywood case
Delivery Time 7~10 work days
Payment Terms T/T
Supply Ability 2000kgs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Alloy Copper Tungsten Metal Alloys Electrode Rod Material Tungsten Copper Alloy
Grade 75WCu,80WCu,90WCu,70WCu Diameter 4~120mm
Length <500mm Surface Polished
High Light

Electrode Tungsten Copper Alloy Rod

,

WCu20 Electrode Rod

,

Copper Tungsten Metal Alloys Electrode Rod

Leave a Message
Product Description

WCu30 WCu20 alloy copper tungsten metal alloys electrode rod with high hardness

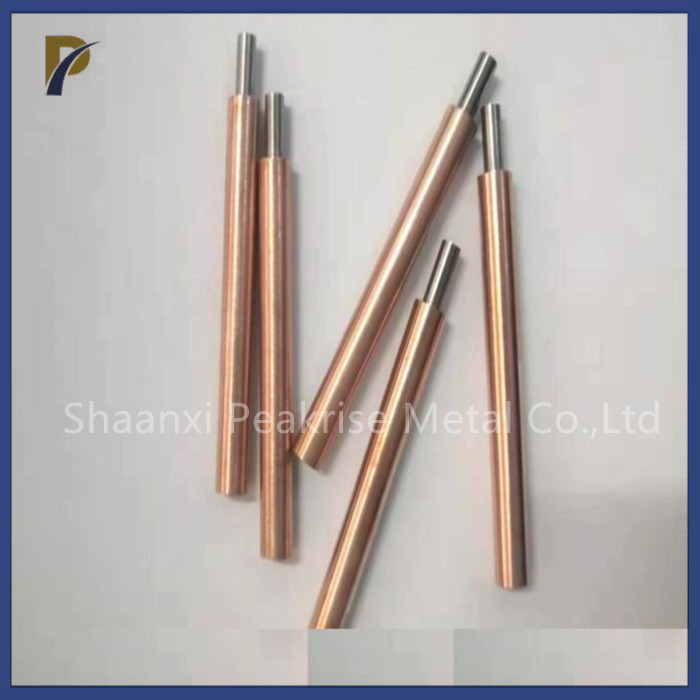

WCu30 WCu20 Copper Tungsten Metal Alloys Electrode Rod With High Hardness 0




1. Introduction of alloy copper tungsten metal alloys electrode rod:



Tungsten copper is a composite material that is refined through the processes of static pressing, high temperature sintering, and copper infiltration. Tungsten copper combines the excellent metal properties of high-purity tungsten powder with the plasticity and high conductivity of high-purity copper powder. Effective arc breaking is facilitated by a variety of properties, including good electrical and thermal conductivity, low thermal expansion, limited softening at high temperatures, high strength, high density, and high hardness.



2. Properties of alloy copper tungsten metal alloys electrode rod:


Grade Density g/cm3 Tensile strength/Mpa Hardness(HB) Conductivity %IACS Application
Room temperature 1600℃
WCu7 17.3~17.8 400~750 50~120 280 ≥26 Nozzle, gas rudder
WCu10 16.8~17.3 400~700 60~100 260 ≥27 Nozzle, gas rudder
WCu15 16.0~16.5 300~600 / 240 ≥30 Terminals, components, barium salt electron cathode
WCu20 15.1~15.5 / / 220 ≥34 contacts, electrodes
WCu30 13.7~14.2 / / 175 ≥42 Contacts, electrodes, medicine caps
WCu40 12.7~13.2 / / 140 ≥47 contacts, electrodes
WCu50 11.7~12.2 / / 115 ≥55 contacts, electrodes



Diameter(mm) D5 D6 D10 D12 D14 D15 D20 D25 D30 D35 D40 D45 D50
Length(mm) 300 300 300 300 300 300 300 300 300 300 300 300 300
P.S:It can produce tungsten copper alloy rods with a length of less than 300mm, a tolerance of (0,+5mm) and a diameter of more than 1mm, and a tolerance of (0,±0.5mm). In addition, it can be ordered/cut according to customer specific specifications.



3. Product show:

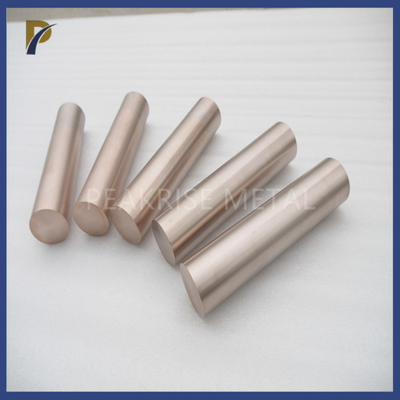

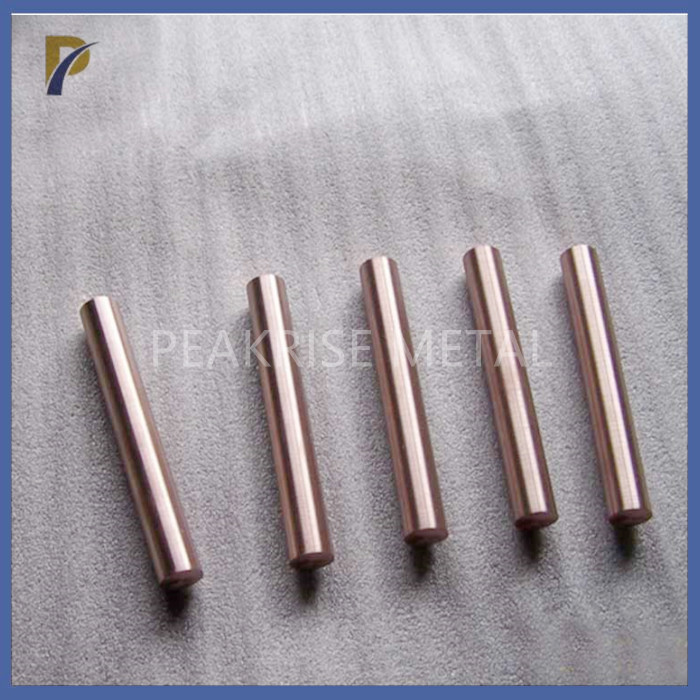

WCu30 WCu20 Copper Tungsten Metal Alloys Electrode Rod With High Hardness 1WCu30 WCu20 Copper Tungsten Metal Alloys Electrode Rod With High Hardness 2



Other Tungsten Copper Products:

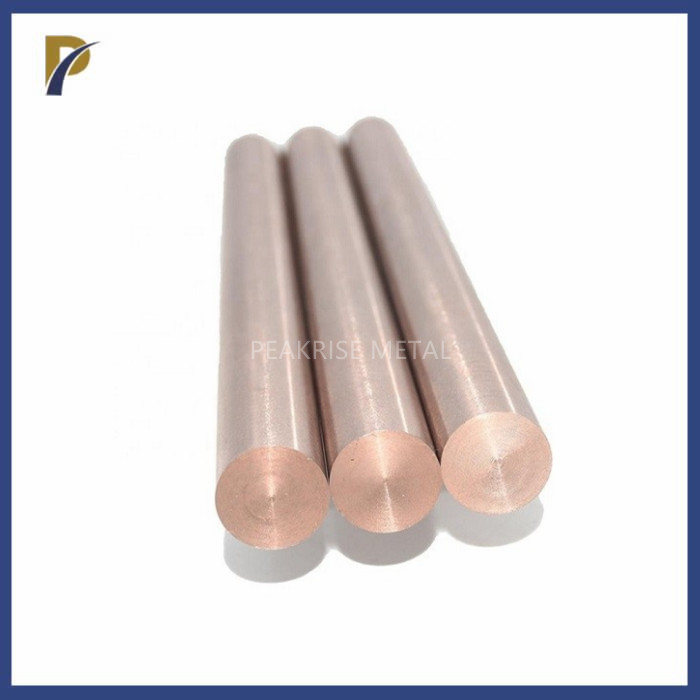

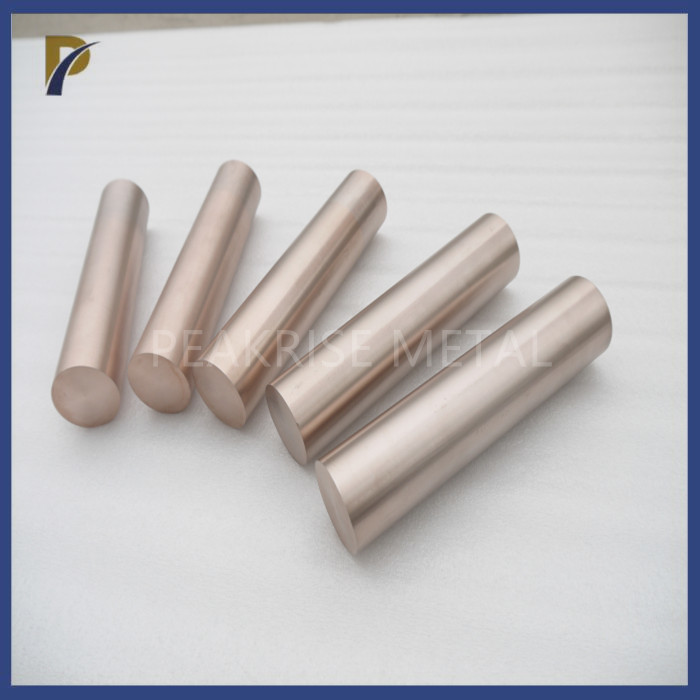

WCu30 WCu20 Copper Tungsten Metal Alloys Electrode Rod With High Hardness 3WCu30 WCu20 Copper Tungsten Metal Alloys Electrode Rod With High Hardness 4



              WCu process parts                                              WCu electrode
