Customized 99.95% Welded Tungsten Crucibles W/Mo Crucible For High Temperature Vacuum Furnaces

Place of Origin China
Brand Name PRM
Certification ISO9001
Model Number custom
Minimum Order Quantity 1pc
Price Negotiate
Packaging Details Plywood case
Delivery Time 7~10 work days
Payment Terms T/T
Supply Ability 2000kgs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name Low Cost Welding W/Mo Crucible Purity 99.95%
Boiling Point 5927 °C Density 19.3g/cm3
Process Welding By Sheet Size Customized
Melting Point 3410 °C Shape Cylindrical
High Light

High Temperature Vacuum Furnaces Tungsten Crucibles


Customized Welded Tungsten Crucibles


99.95% Tungsten Crucibles

Leave a Message
Product Description

Product Description:

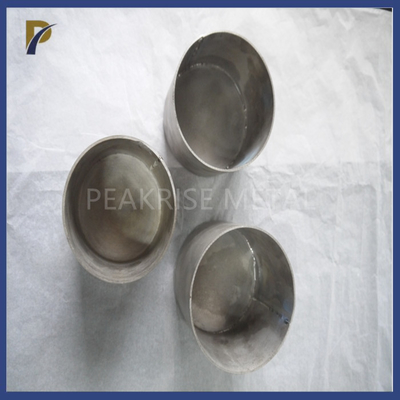

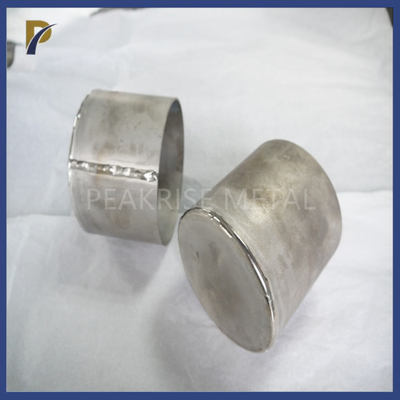

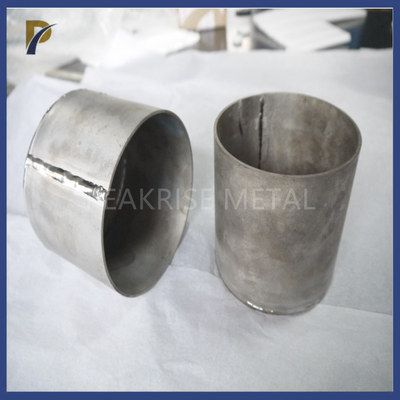

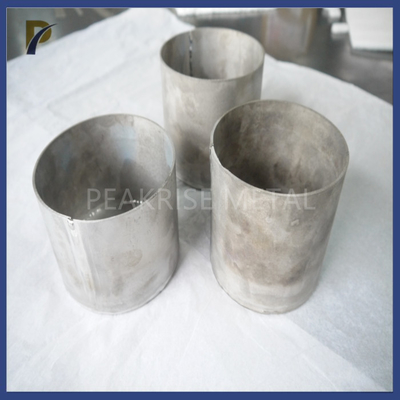

Tungsten crucibles  are one of metal tungsten products, which are mainly divided into sintering molding (applied to powder metallurgy technology), stamping molding, and spinning type. It is formed by turning tungsten rods (generally the size is relatively small), and there are many kinds of welding shapes. It is made of pure tungsten plates, tungsten sheets and pure tungsten rods through corresponding processes. Tungsten crucibles can be used in vacuum inert gas below 2600 ℃. Tungsten has high melting point and boiling point, good high temperature strength, wear resistance and corrosion resistance, high thermal conductivity, small thermal expansion coefficient, and good hardenability. Tungsten crucibles are widely used in rare earth smelting, quartz glass, electronic spraying, crystal growth and other industries.



Diameter: 50~700mm

Tolerance of diameter: +/- 0.5mm


Wall thickness: 0.3~3.0mm

Tolerance of wall thickness: +/-0.3mm


Height: 20~1000mm

Tolerance of height: + 5.0mm


Standard: ASTM B760


Grade Impurity content,≤%
Pb Bi Sn Sb As Mn Mo Fe Al
W-1 0.0001 0.0001 0.0003 0.0005 0.002 0.001 0.005 0.005 0.001


Customized 99.95% Welded Tungsten Crucibles W/Mo Crucible For High Temperature Vacuum Furnaces 0



Because the melting point of tungsten is as high as 3410°C, tungsten crucibles are widely used as core containers in industrial furnaces such as sapphire single crystal growth furnaces, quartz glass melting furnaces, and rare earth smelting furnaces. The working temperature environment is generally above 2000°C. Especially for sapphire single crystal growth furnaces, tungsten crucibles with high purity, high density, no internal cracks, precise dimensions, smooth inner and outer walls, etc. have a great influence on the seed crystal success rate, crystal pulling quality control, Decrystallization sticky pan and service life play a key role.


Customized 99.95% Welded Tungsten Crucibles W/Mo Crucible For High Temperature Vacuum Furnaces 1



Packing and Shipping:


Packaging and Shipping for Tungsten Crucible

Tungsten crucibles are usually packaged in wooden boxes, which are filled with foam or other cushioning materials. In order to ensure the safety of the crucible during the shipping process, these wooden boxes must be tightly sealed and secured with straps or bubble wrap.





Q1: What is Tungsten Crucible?

A1: Tungsten Crucible is a product made by PRM in China. It is a crucible made of tungsten material.


Q2: What is the advantage of Tungsten Crucible?

A2: Tungsten Crucible has high temperature resistance, good thermal conductivity, and chemical stability.


Q3: What is the application of Tungsten Crucible?

A3: Tungsten Crucible is mainly used for melting and casting of various metals and alloys in metallurgy, electronic industry and other industries.


Q4: What is the size of Tungsten Crucible?

A4: The size of Tungsten Crucible varies depending on the specific application. It can be customized according to customer's needs.


Q5: What is the temperature resistance of Tungsten Crucible?

A5: The temperature resistance of Tungsten Crucible is up to 2800℃. It has excellent thermal stability and is suitable for high temperature applications.
