ASTM B658 Zr702 Zr705 Zirconium Seamless Pipe For Industry

Place of Origin China
Brand Name PRM
Certification ISO9001
Model Number Custom
Minimum Order Quantity 1kg
Price Negotiate
Packaging Details Plywood case
Delivery Time 5~7days
Payment Terms T/T
Supply Ability 50ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Zirconium Seamless Pipe Grade Zr2 Zr4 Zr702 Zr705 Zr60804
Density 6.51g/cm3 Diameter 6-300mm
Wall Thickness 0.5-10mm Length <20meters
Standard ASTM B658 , ASTM B353 Process Hot Extrusion
High Light

Industry Zirconium Pipe

,

Zirconium Seamless Pipe

,

Zr702 Zirconium Tube

Leave a Message
Product Description

Zr702 Zr705 Zirconium Seamless Pipe For Industry



Product information:



Name: Zirconium seamless pipe

Grade: Zr2 Zr4 Zr702 Zr705 Zr60804

Density: 6.51g/cm3

Diameter: 6-300mm

Wall thickness: 0.5-10mm

Length: <20meters

Or process according to customer's request.

Standard: ASTM B658,ASTM B353

Main steps of processing: Preparation of consumable electrodes, casting, forging, hot extrusion (tube blank), cold working and finishing.

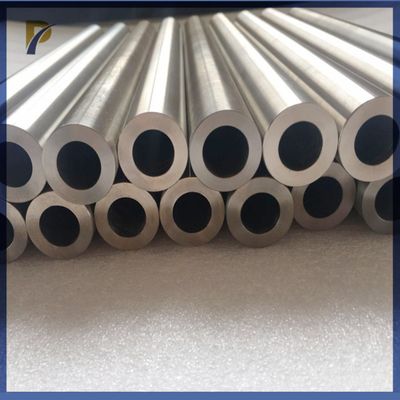

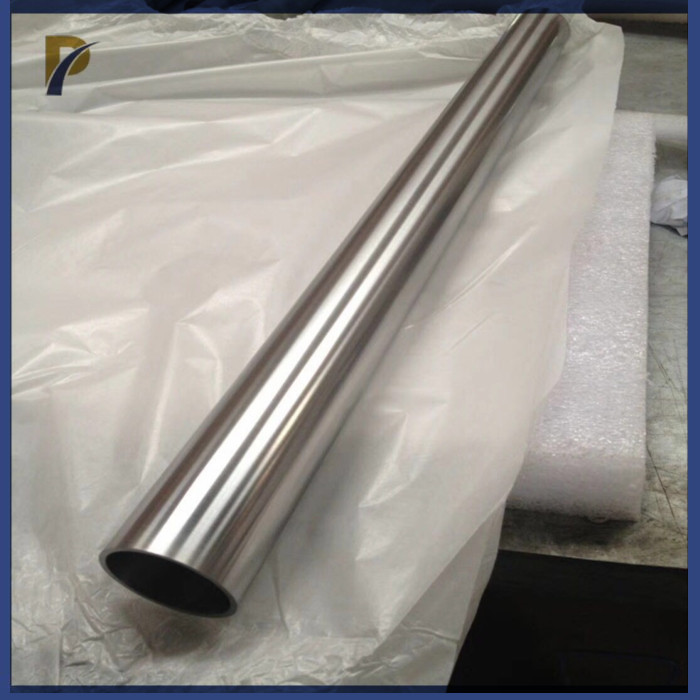

ASTM B658  Zr702 Zr705 Zirconium Seamless Pipe For Industry 0ASTM B658  Zr702 Zr705 Zirconium Seamless Pipe For Industry 1



Chemical Content Of Zirconium Pipe:



Grade Element composition(%)< Standard
Zr+Hf Hf Fe+Cr Sn H N C Nb O
R60702 99.2 4.5 0.20 -- 0.005 0.025 0.05 -- 0.16 ASTM B658
R60703 98 4.5 -- -- --0.005 0.025 -- -- --
R60704 97.5 4.5 0.20~0.40 1.0~2.0 0.005 0.025 0.05 -- 0.18
R60705 95.5 4.5 0.2 -- 0.005 0.025 0.05 2.0~3.0 0.18
R60706 95.5 4.5 0.2 -- 0.005 0.025 0.05 2.0~3.0 0.18
R60804 97.5 0.01 0.25~0.37 1.2~1.7 0.0025 0.008 0.027 -- 0.09~0.16 ASTM B353
R60001 99.9 0.01 0.17 0.005 0.0025 0.008 0.027 -- --



Mechanical properties of Zirconium Pipe:



Standard Grade Status Rm(≥)/MPa Rp0.2(≥)/MPa A51mm(≥)/%
ASTM B658 Zr seamless tube/welding pipe

R60702

R60704

R60705

Annealed

379

413

552

207

241

379

16

14

16



Advantages and Uses of Zirconium Pipe:


Zirconium is an important special material in acetic acid equipment. Zirconium has better corrosion resistance and mechanical properties than stainless steel, nickel-based alloys and titanium. It is very suitable for manufacturing chemical equipment such as containers, heat exchangers and instruments. Zirconium material has properties such as corrosion resistance, extremely high melting point, ultra-high hardness and strength. It is widely used in aerospace, military industry, nuclear reaction, atomic energy, chemical industry, petroleum, medicine and other fields.The grades of zirconium materials currently produced include ZrR60702 and ZrR60705. Generally, zirconium 702 is used. When high strength is required, zirconium 705 can be used.





Company Profile:



Shaanxi Peakrise Metal Co., Ltd. is an rich experienced tungsten,molybdenum, tantalum, niobium, titanium,zirconium,nickel non-ferrous metal production enterprise,Products are exported to Taiwan, Ukraine, South Korea, the United States, Australia, Germany, Iran and other countries, and have established long-term good cooperative relations with customers. Our products are highly recognized and evaluated by customers.has a variety of production equipment, such as intermediate frequency sintering furnace, vacuum arc melting furnace, laser cutter,plasma electron beam melting furnace, vacuum annealing furnace, various rolling mills, wire drawing machines, plasma welding rooms, lathes, milling machines, sawing machines, drilling machines, Shears, Stamping Equipment, Cutting Equipment, Grinders, Straightening Machines, CNC, etc.

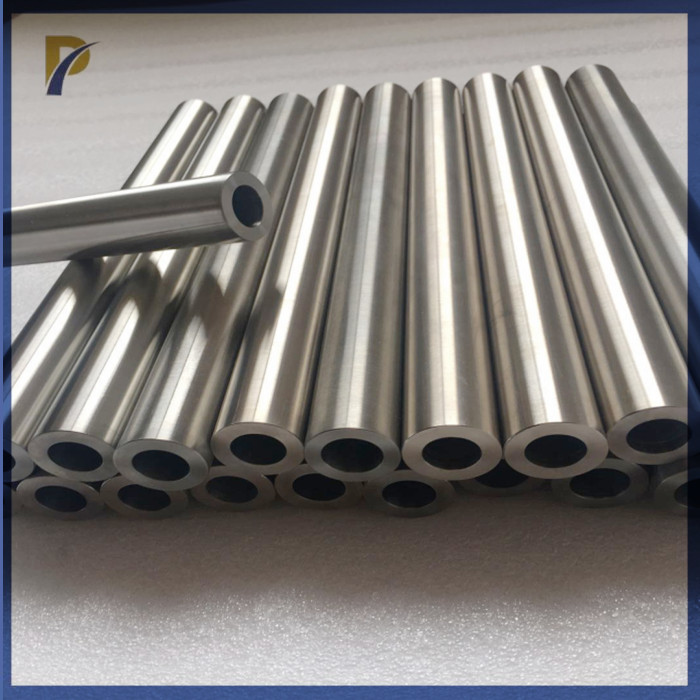

ASTM B658  Zr702 Zr705 Zirconium Seamless Pipe For Industry 2









Do you want to know more about our products?

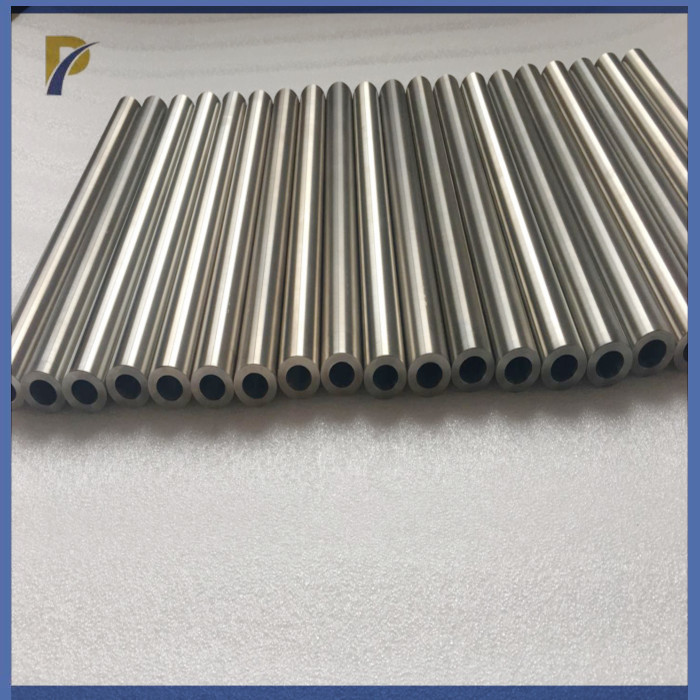

ASTM B658  Zr702 Zr705 Zirconium Seamless Pipe For Industry 3
