ASTM B523 Zr702 Zr705 Zirconium Seamless Tube For Heat Exchanger

Place of Origin China
Brand Name PRM
Certification ISO9001
Model Number Custom
Minimum Order Quantity 1kg
Price Negotiate
Packaging Details Plywood case
Delivery Time 5~7days
Payment Terms T/T
Supply Ability 50ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Zirconium Seamless Tube Grade Zr2 Zr4 Zr702 Zr705 Zr60804 Zr60001
Density 6.51g/cm3 Diameter 6-300mm
Wall Thickness 0.5-10mm Length <20meters
Standard ASTM B523 Process Hot Extrusion
High Light

Zr702 Zirconium Seamless Tube

,

Heat Exchanger Zirconium Tube

,

Hot Extrusion Zirconium Seamless Pipe

Leave a Message
Product Description

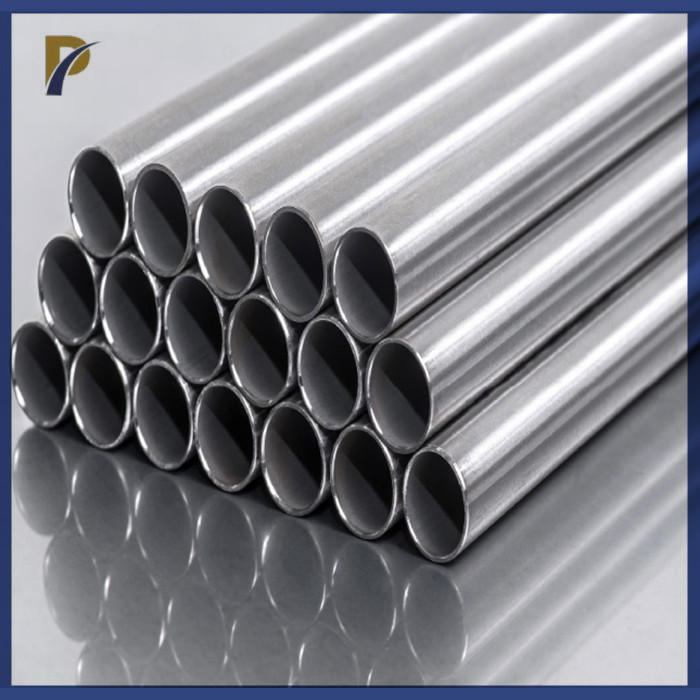

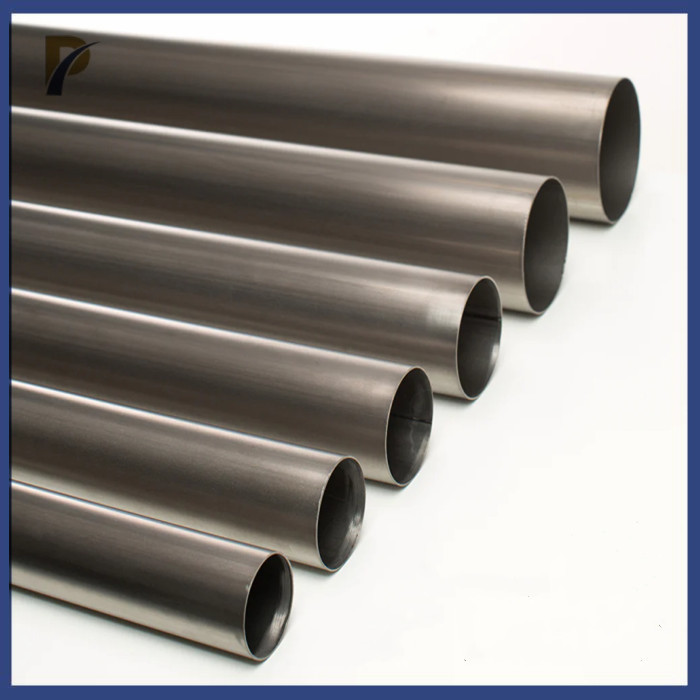

ASTM B523 Zr702 Zr705 Zirconium Seamless Tube



Product information:





Name:  Zirconium seamless tube for heat exchanger ASTM B523 Zr702 Zr705 Zirconium Seamless Tube For Heat Exchanger 0
Grade:  Zr2 Zr4 Zr702 Zr705 Zr60804 Zr60001 Zr60901
Density:  6.51g/cm3
Size:  OD 6-300mm,WT 0.5-10mm,L <20meters Or process according to customer's request.
Standard:  ASTM B523 ASTM B658,ASTM B353
Main process:  Preparation of consumable electrodes, casting, forging, hot extrusion (tube blank), cold working and finishing.
Status:  Annealing (M) Hot working status (R) Cold working status (Y) Annealing
Surface:  Rolled surface, polished surface, polished surface, pickled metal surface



ASTM B523 Zr702 Zr705 Zirconium Seamless Tube For Heat Exchanger 1ASTM B523 Zr702 Zr705 Zirconium Seamless Tube For Heat Exchanger 2



Chemical Content Of Zirconium Pipe:



Grade Element composition(%)< Standard
Zr+Hf Hf Fe+Cr Sn H N C Nb O
R60702 99.2 4.5 0.20 -- 0.005 0.025 0.05 -- 0.16 ASTM B658
R60703 98 4.5 -- -- --0.005 0.025 -- -- --
R60704 97.5 4.5 0.20~0.40 1.0~2.0 0.005 0.025 0.05 -- 0.18
R60705 95.5 4.5 0.2 -- 0.005 0.025 0.05 2.0~3.0 0.18
R60706 95.5 4.5 0.2 -- 0.005 0.025 0.05 2.0~3.0 0.18
R60804 97.5 0.01 0.25~0.37 1.2~1.7 0.0025 0.008 0.027 -- 0.09~0.16 ASTM B353
R60001 99.9 0.01 0.17 0.005 0.0025 0.008 0.027 -- --



Mechanical properties of Zirconium Tube:



Standard Grade Status Rm(≥)/MPa Rp0.2(≥)/MPa A51mm(≥)/%
ASTM B658 Zr seamless tube/welding pipe

R60702

R60704

R60705

Annealed

379

413

552

207

241

379

16

14

16

ASTM B523 Zr seamless & welding heat exchange tube

R60702

R60704

R60705

Annealed

379

413

552

207

241

379

16

14

16

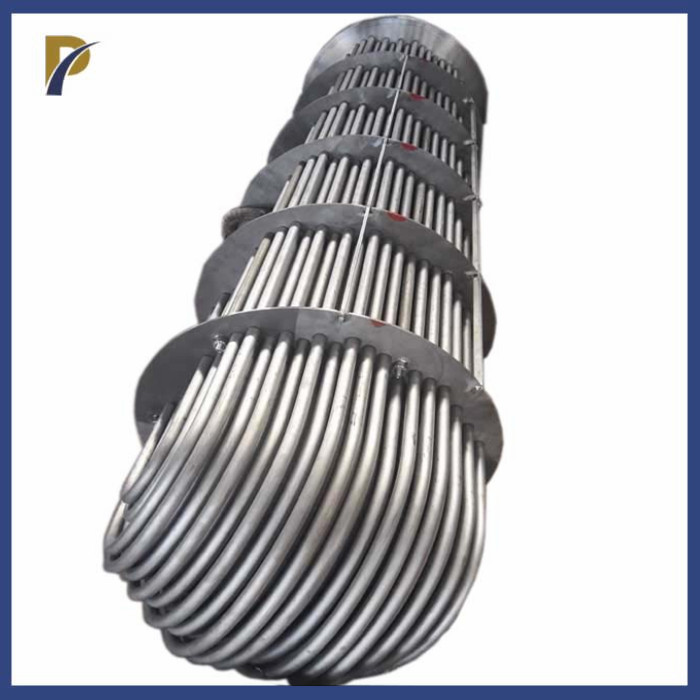

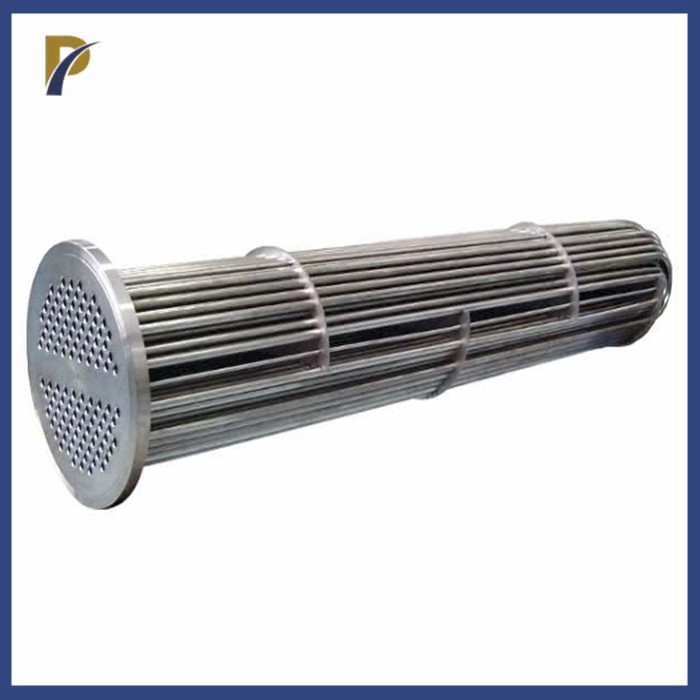

Advantages and Uses of Zirconium Heat Exchange Tube:


Zirconium is an important special material in acetic acid equipment. Zirconium has better corrosion resistance and mechanical properties than stainless steel, nickel-based alloys and titanium. It is very suitable for manufacturing chemical equipment such as containers, heat exchangers and instruments. Zirconium material has properties such as corrosion resistance, extremely high melting point, ultra-high hardness and strength. It is widely used in aerospace, military industry, nuclear reaction, atomic energy, chemical industry, petroleum, medicine and other fields.The grades of zirconium materials currently produced include ZrR60702 and ZrR60705. Generally, zirconium 702 is used. When high strength is required, zirconium 705 can be used.
